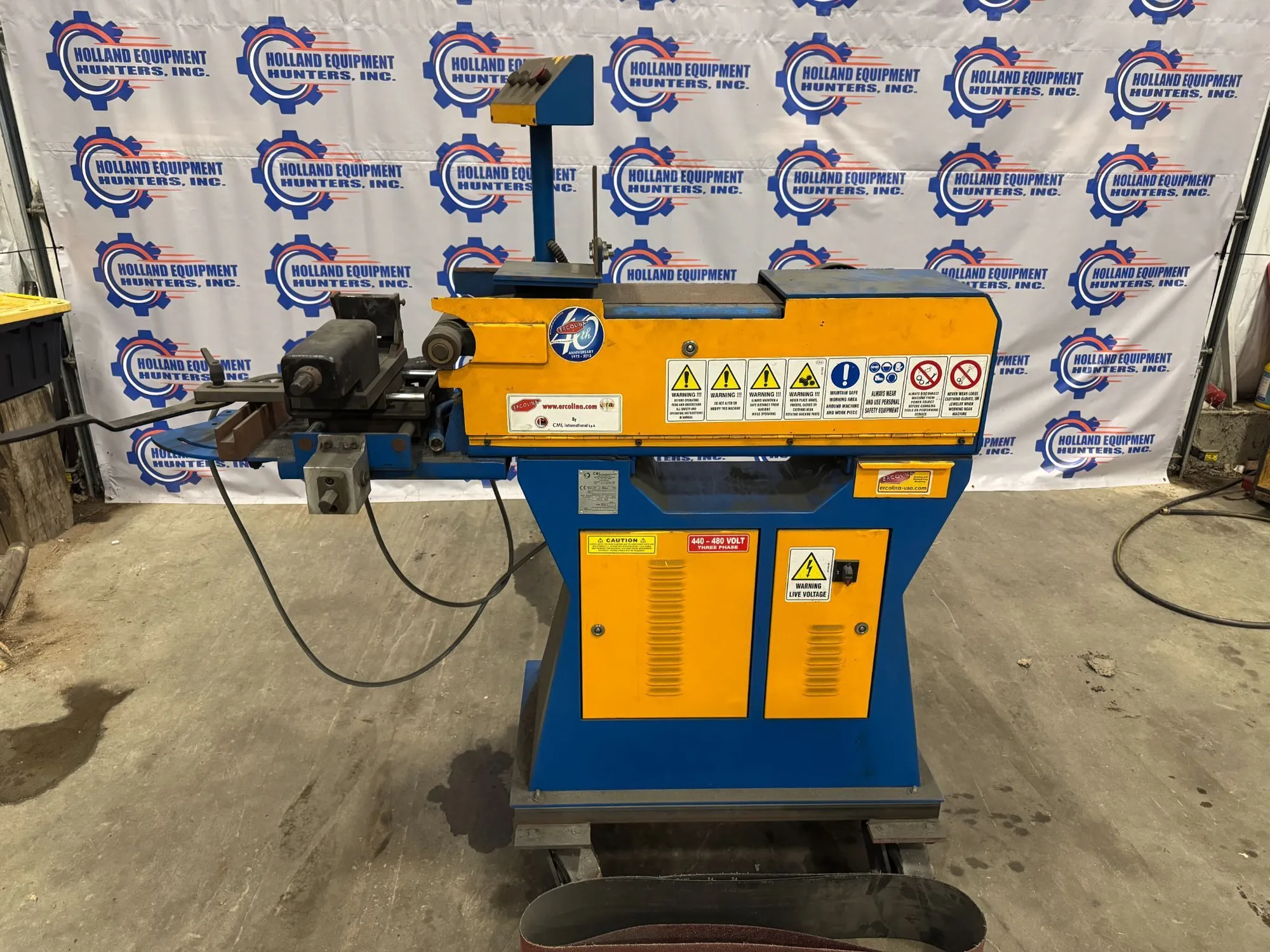

USED ERCOLINA EN180

-Notch angles to 60° in pipe or tube up to 4½″ (Consult factory for application information at maximum capacity.)
-Replaces outdated notching methods using hole saws, end mills, grinding wheels and flame cutting
-Patented simultaneous infeed and crossfeed action extends belt life and reduces heat
-Uses premium abrasive belts for a wide range of materials including; carbon steel, stainless steel, Inconnel, chrome-moly, aluminum and titanium
-Graduated vise 0-60° with vertical adjustment for offset angles
-Patented Quick Change roller system
-Converts to abrasive belt grinder with optional accessory
-Top mounted deburring surface
-Over 25 notcher rollers available
-Tool free belt changeover

Standard sanding belt size 2000 x 180 mm
Installed Power 4 kW
Motor speed 2800 rpm
Power Supply 220/400 V
Weight 300 kg
Dimensions 600 x 1500 x 1500 mm
Notching Ø 114 mm at 0°
Ø 76 mm up to 45°
Ø 60 mm up to 60°
