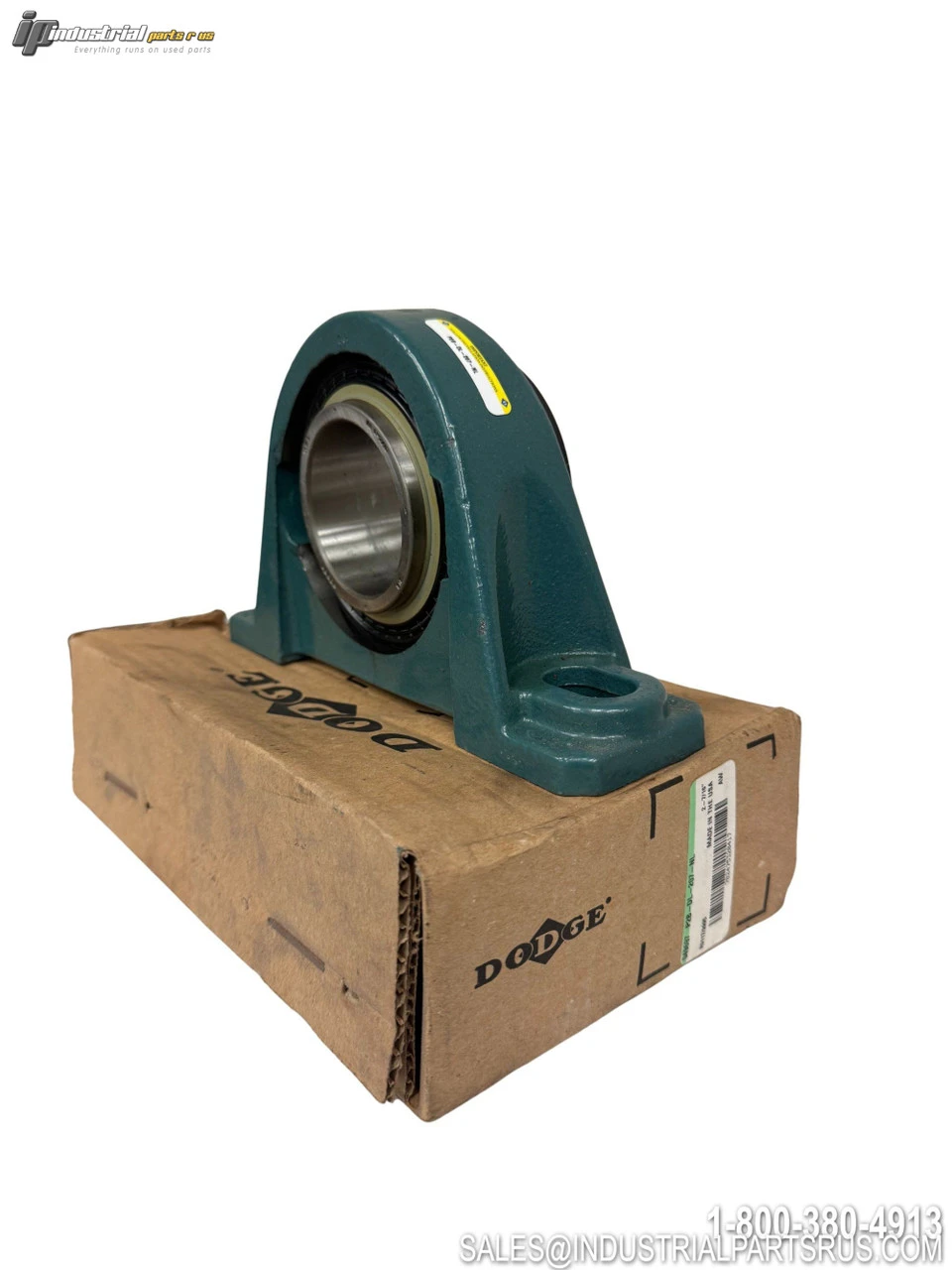

NEW DODGE P2B-DL-207-NL

The Dodge P2B-DL-207-NL is a 212 series normal duty pillow block ball bearing unit designed for industrial applications requiring reliable shaft support and mounting. This two-bolt pillow block features a 2-7/16 inch bore with D-LOK concentric clamp collar locking device for secure shaft attachment and single lip seal protection.
Specification
Value
Brand
Dodge
Model/Part Number
P2B-DL-207-NL
Series
212 Series
Bore Diameter
2-7/16 in (2.4375 in)
Housing Type
Two-Bolt Pillow Block
Duty Type
Normal Duty
Bearing Type
Ball Bearing
Locking Device
D-LOK Concentric Clamp Collar
Seal Type
Single Lip Contact
Expansion Type
Non-Expansion (Fixed)
Housing Material
Cast Iron, Powder Coated
Insert Material
Steel
Bolt Center-to-Center
6.88 to 7.94 in
Base to Bore Centerline
2-3/4 in (2.75 in)
Overall Length
9-1/2 in (9.5 in)
Overall Height
5.4 in
Overall Width
2.38 in
Bore Length
2.38 in
Dynamic Load Capacity
11,791 lbf
Static Load Capacity
8,100 lbf
Maximum RPM
3,500 rpm
Grease Type
Unirex N2
Weight
10.67 lb
UPC
782475320417
We warranty all items for 30 days from date of purchase.
