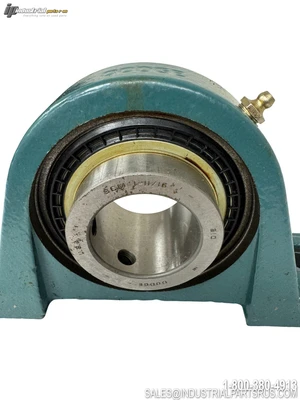

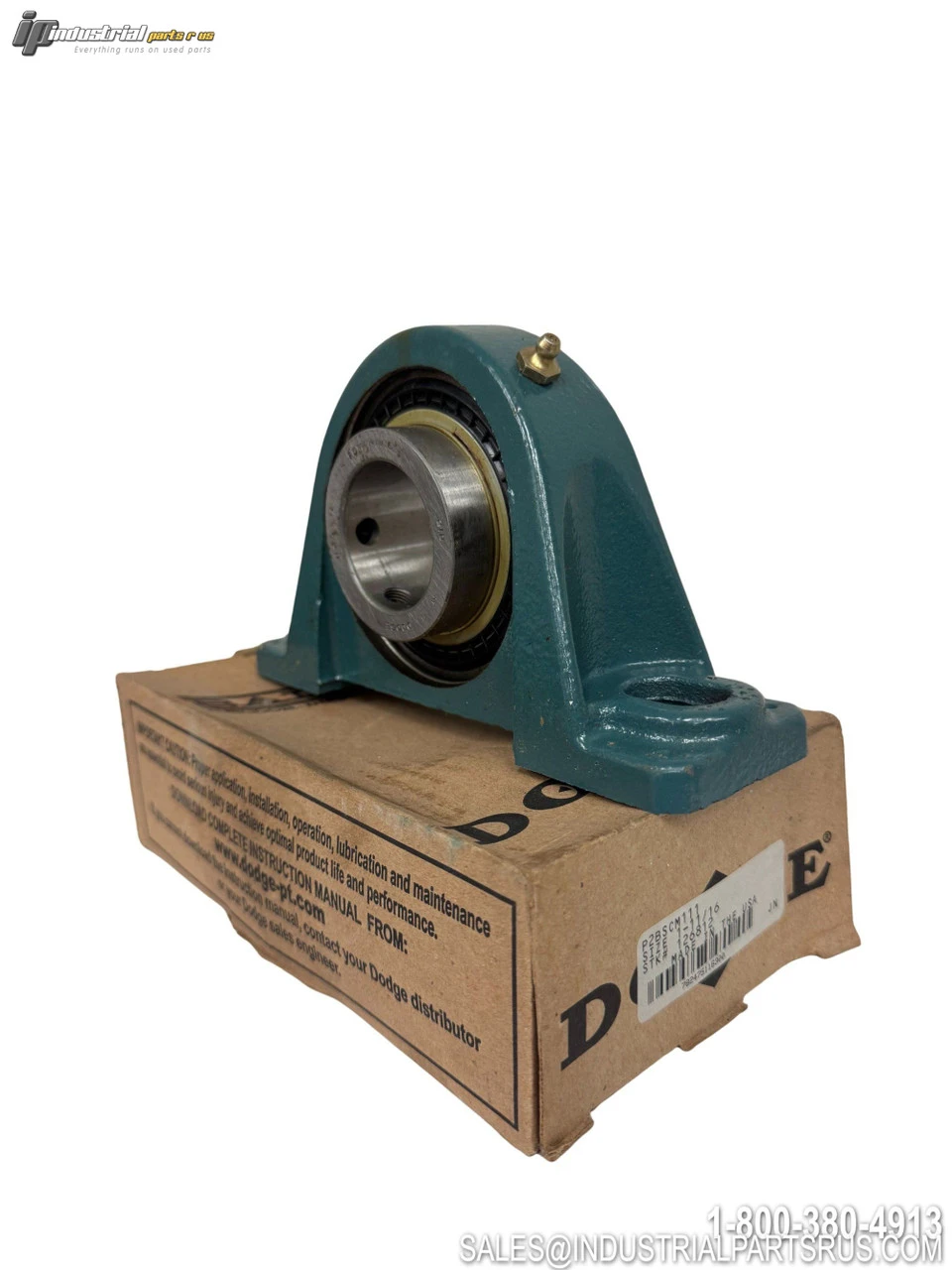

The Dodge P2BSCM111 is a two-bolt pillow block ball bearing unit designed for medium duty applications. This bearing features a 1-11/16 inch bore diameter and belongs to the 210 series with a set screw locking mechanism for secure shaft attachment.
Specification
Value
Brand
Dodge
Model/Part Number
P2BSCM111
Manufacturer Part Number
126812
Bore Diameter
1-11/16 in (42.862mm)
Series
210
Duty Type
Medium Duty
Mounting Type
2-Bolt Base
Locking Device
Set Screw
Housing Material
Cast Iron
Seal Type
Single Lip Contact
Expansion Type
Non-Expansion Bearing (Fixed)
Overall Length
8.12 in
Overall Width
1.94 in
Overall Height
4.53 in
Bolt Center-to-Center
6.0 to 6.68 in
Base to Bore Centerline
2-1/4 in
Base Width
2-1/4 in
Dynamic Load Capacity
7891 lbf
Static Load Capacity
5213 lbf
Maximum RPM
3000-4500 rpm
Temperature Range
225 to 400°F
Lubrication
Grease (Unirex N2)
We warranty all items for 30 days from date of purchase.
| Weight | 3.00 LBS | 3.00 LBS |
SKU: AI1732
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Dodge
Part Number: P2BSCM111
Shelf: GS-34
Model: P2BSCM111
MPN: P2BSCM111
Type: Pillow Block
