NEW AMI UCFC210

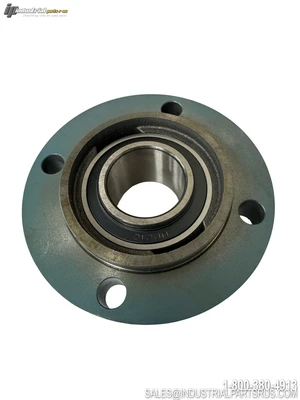

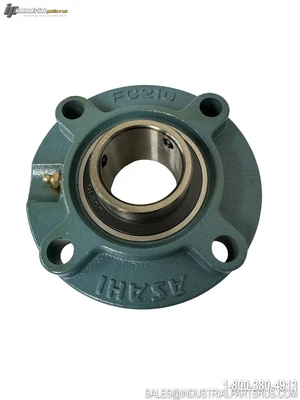

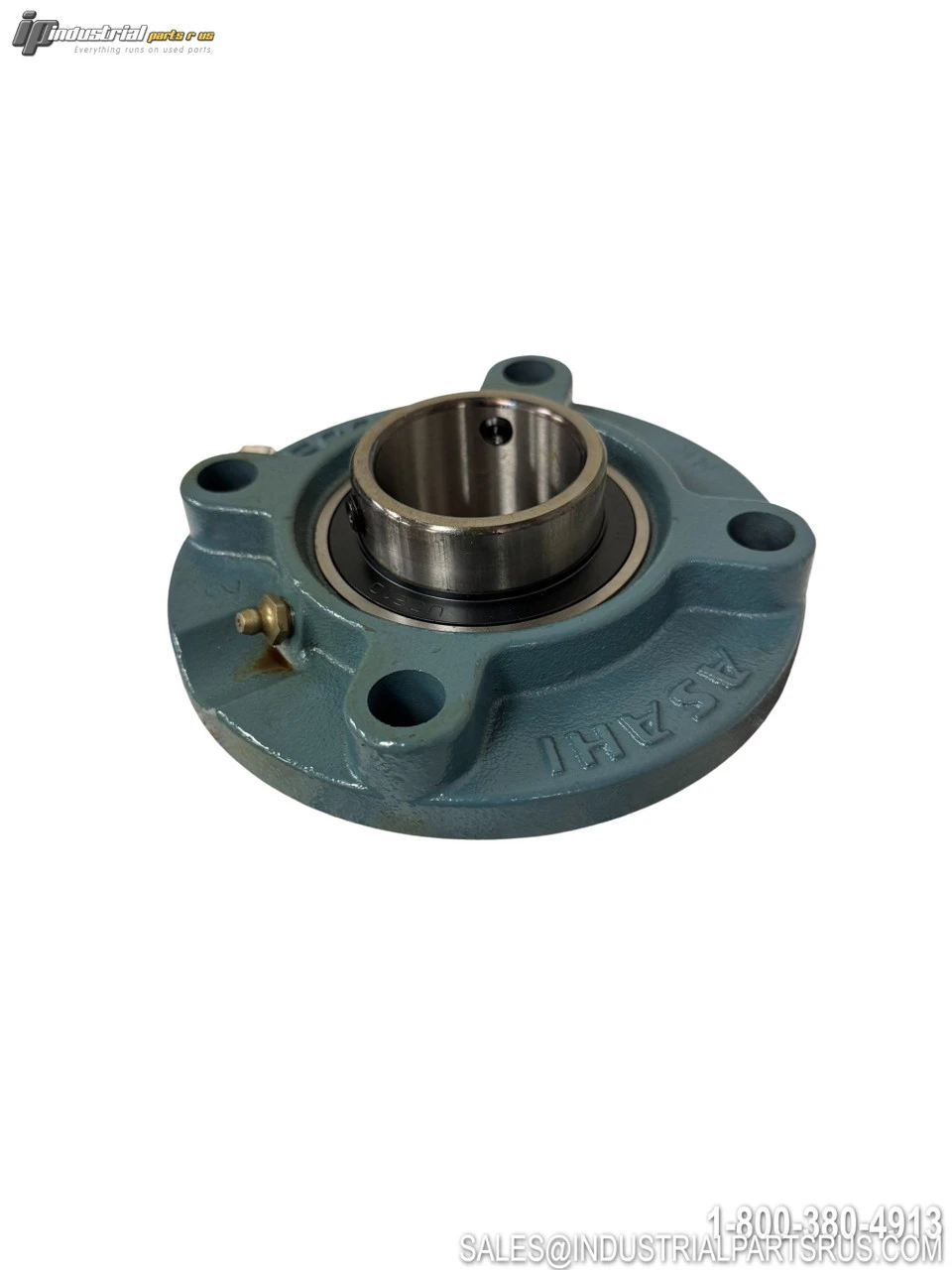

The AMI UCFC210 is a piloted flange cartridge bearing unit designed for industrial machinery applications. This mounted ball bearing unit features a spherical outer diameter insert bearing in a 4-bolt cast iron housing with set screw locking mechanism for secure shaft mounting.
Specification
Value
Brand
AMI
Model/Part Number
UCFC210
Product Type
Piloted Flange Cartridge Unit
Bore Diameter
50mm
Housing Material
Cast Iron
Overall Length
165mm
Overall Height
42.6mm
Length Through Bore
51.6mm
Pilot Diameter
110mm
Bolt Circle Diameter
138mm
Bolt Size
M14
Locking Device
Set Screw
Insert Bearing
UC210
Dynamic Load Rating
3600 kgf
Static Load Rating
2370 kgf
Seal Type
Contact Seal with Flinger
Lubrication
Relubricatable
Series
UCFC200
Expansion Type
Non-Expansion (Fixed)
Weight
6.08 lbs
We warranty all items for 30 days from date of purchase.
