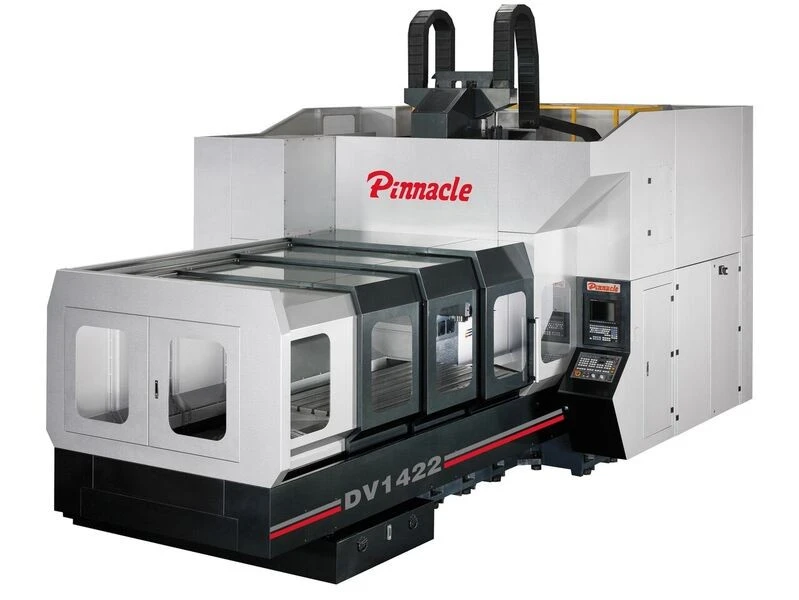

NEW 2024 PINNACLE DV 1742
Overview
Type Machining Center, Planer type CNC Machining Center, Gantry type Milling Machine. Fanuc Oi-MD, 10.4" LCD, AICC II, Jerk control, Semi Splash guard, Chain type chip conveyor, 2 Screw type chip conveyors 32 ATC, Auto door for ATC.
Specs
"X" Axis travel: 165.3"
"Y" Axis travel: 66.9"
"Z" axis travel: 35.4"
Distance between Columns: 66.9"
Table size: 165.3" x 59"
Spindle center to column: 15.9"
No. of Bearing support Blocks "X"/ "Y": 16/6/6
Distance spindle nose to Table: 4.33" - 39.76
Ball Screws size X/Y/Z: 2.75",2.16",2.16"
Spindle Taper: Cat 50
Spindle Speed: 2 speed GEARED HEAD, 8,000 RPM
Draw bar force: 4,000 lbs.
Spindle power: 20/25 H.P. 30 mins.
Optional Spindle motor: 25/30 H.P. 30 mins
Table weight allowable: #26,500 lbs.
Base machine weight: #52,000 lbs.
Cat. 50 10,000 RPM Built in spindle+ Column ext. 7.8: to 43.3"
Transformer 440 Volt: included
4th axis rotary table, CNC 400R- Hydraulic clamp: 16"
No. of containers for shipping: 3, 40' HC / 4 with full splash
