High-Tech Expertise in 5-axis Machining

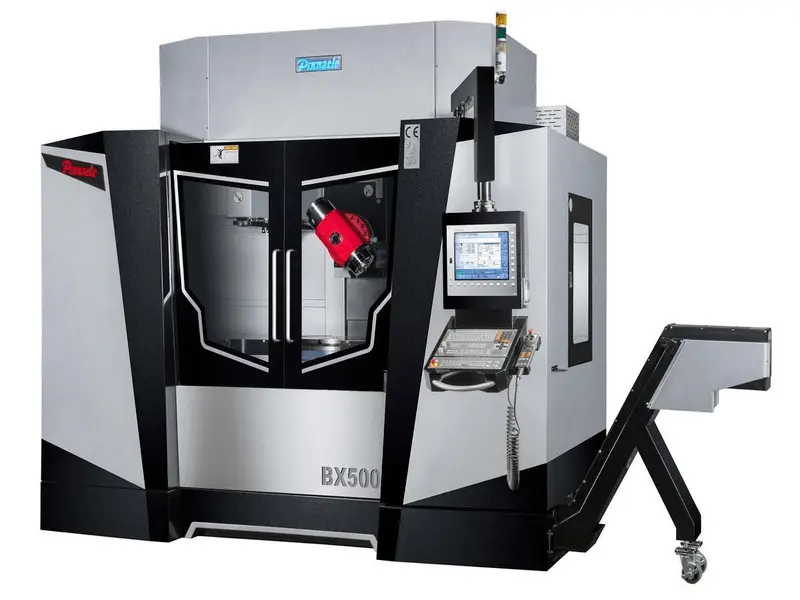

Pinnacle BX-500 Vertical Machining Center with Built in Rotary Table, and 5-Axis Machining, Simultaneous 5 Axis.
Fanuc or Heidenhain controls, Call for delivery.
| X | 51" | 1,295.4 mm |
| Y | 24" | 609.6 mm |
| Z | 32" | 812.8 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 30 | 30 |
| Taper | HSK or | HSK or |
| Table-W | 57" | 1,447.8 mm |
| Table-L | 24" | 609.6 mm |
| # Axis | 5 | 5 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
Table Size: 57" x 24"
Travel Range (X) & (Y): 51" X 24"
Travel Range (Z): 32"
Max. Table Load: 1,874 lbs
Spindle Nose to Table Surface: 3.89" - 35.8"
T Slot (width x number x distance: .7" X 4.92"X .19"
Built-In Spindle:
Spindle Taper: DIN40 (HSKA63)
Bearing Inner Diameter: 2.75"
Draw Bar Force Ft/lbs: 5,786 - 723.3
Main motor (30 min.): 20/24 Hp.
Motor Type: INDRAMAT IMB 160F~4B
