Chevalier FSG-618M Manual Surface Grinder available, used, features a 5.9" x 18.1" table, 2 HP power, and 8" grinding wheel diameter. Max table load 462 lbs, spindle speed 3,450 rpm. Dimensions: 74.8" x 55.1" x 83.9", weight 1,480 lbs. Ideal for precision work.
| Table-W | 5.9" | 149.86 mm |
| Table-L | 18.1" | 459.74 mm |
| Horz/Vert | Horz | Horz |
| Power | 2 hp | 1.5 kW |
| Grinding Wheel Width | 0.5" | 12.7 mm |
| Grinding Wheel Dia. | 8" | 203.2 mm |
| Dimensions | 74.8" x 55.1" x 83.9" | 74.8" x 55.1" x 83.9" |
| Weight | 1480 lbs | 1480 lbs |

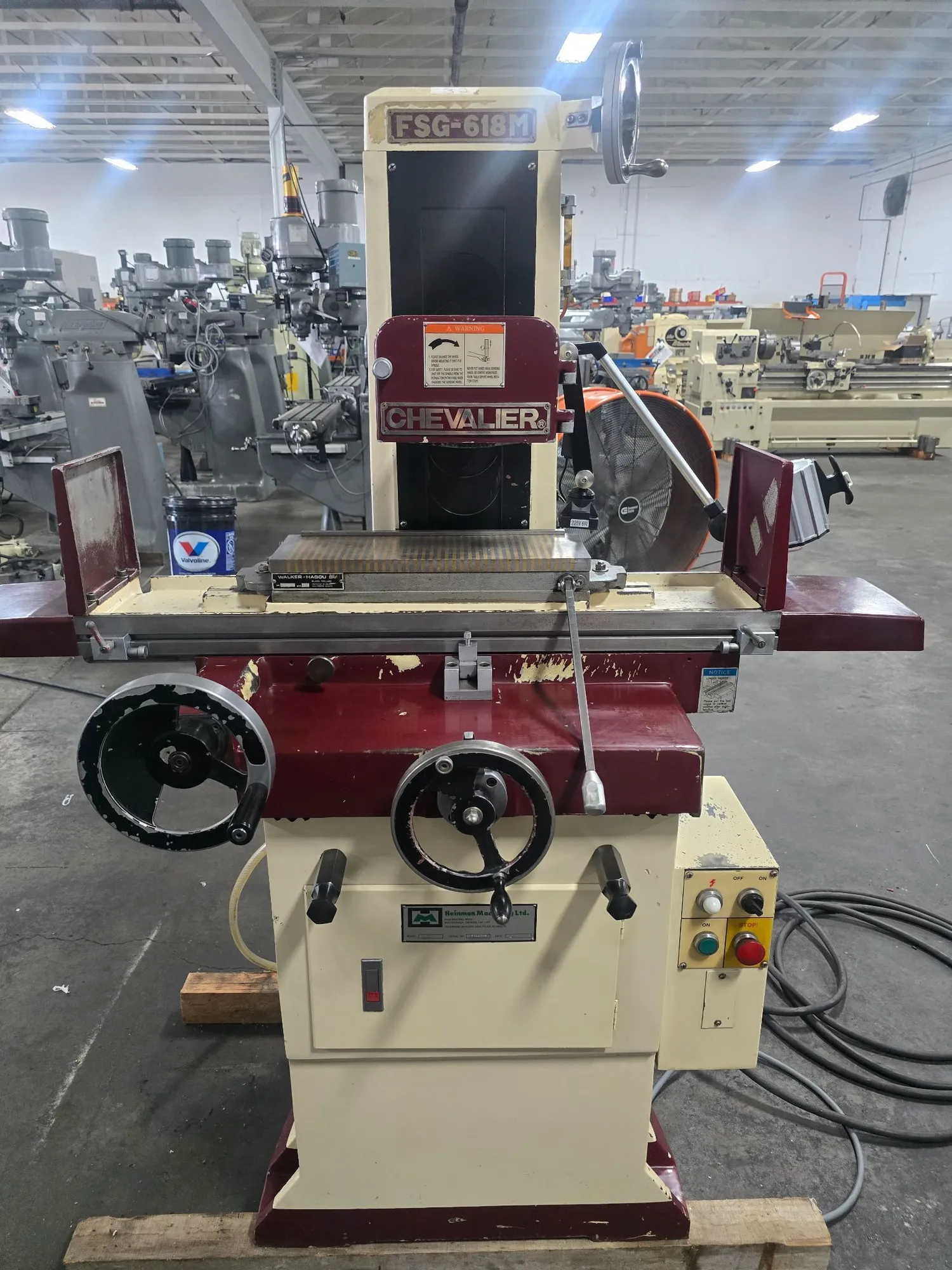

Chevalier FSG-618M Manual Surface Grinder
Control
Grinding length: 18.0"
Grinding width: 6.0"
Capacity
Distance table to centerline of wheel: 17.7"
Max. table load: 462 lbs.
Table
Table size: 5.9" x 18.1"
Max. table travel - manual: 19.0"
Traverse movement (Z)
Max. manual travel: 7.1"
Spindle
Spindle speed: 60 Hz 3,450 rpm / 50 Hz 2,850 rpm
Spindle motor: 2 HP
Wheel dimension
OD x Width x Bore: Ø 8” × 0.5” × Ø 1.3”
Machine dimensions
Floor space (W x D x H): 74.8" x 55.1" x 83.9"
Net weight: 1,480 lbs.
