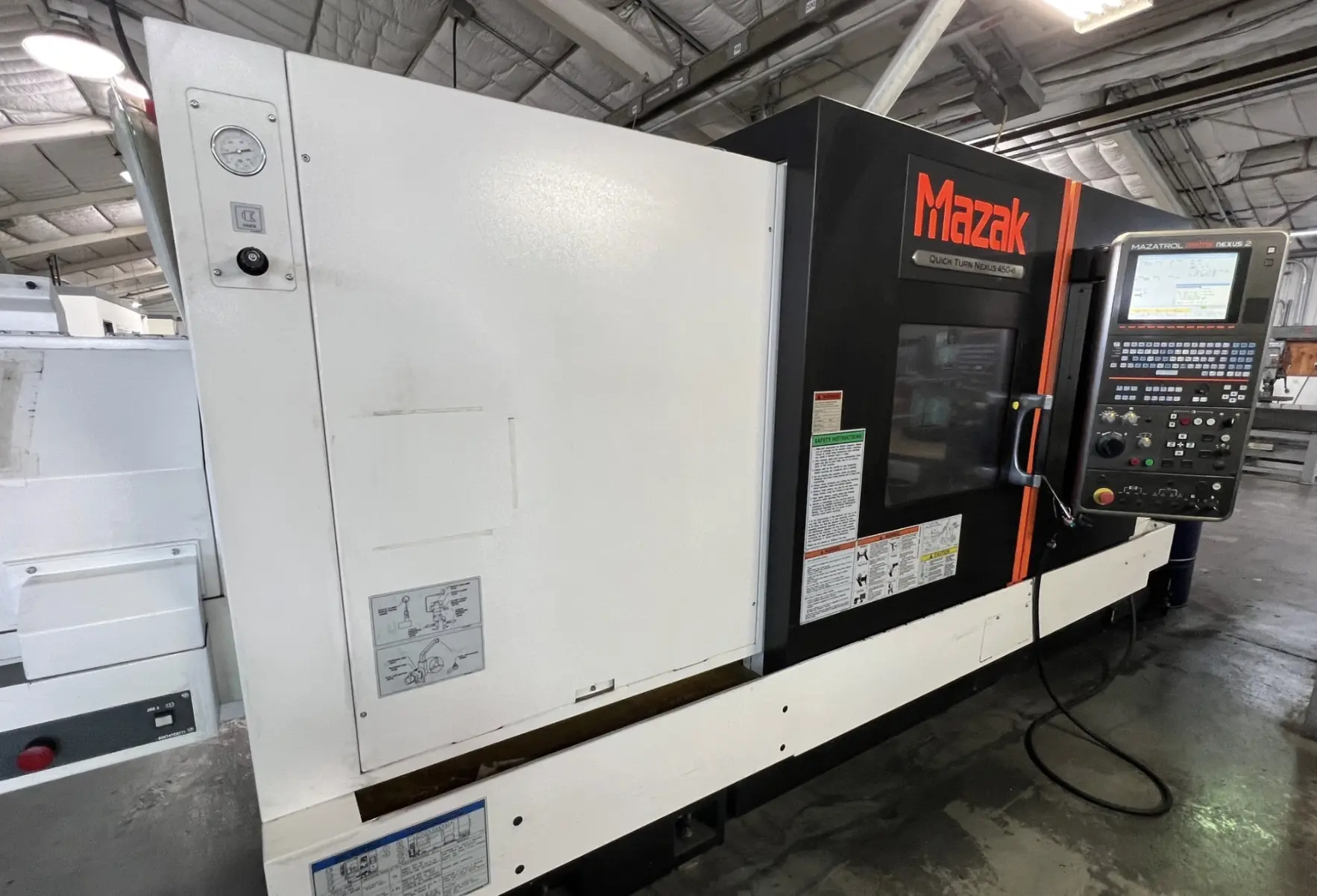

2016 MAZAK NEXUS QUICK TURN 450-II CNC lathe available. Key features include a 18″ hydraulic chuck, 22.83″ max turning diameter, 50HP spindle, Mazatrol Matrix II control, and programmable tailstock. Optional equipment: Jorgensen chip conveyor.
| Machining Length | 42" | 1,066.8 mm |
| # Axis | 2 | 2 |
| Chuck Size | 18" | 457.2 mm |
| Bar Capacity | 7.3" | 185.42 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 2,000 RPM | 2,000 RPM |
| Turning Dia | 22.83" | 579.88 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (MATRIX NEXUS 2) | CNC (MATRIX NEXUS 2) |
Specifications:
Chuck size: 18″
Bar capacity: 7.3″
Maximum turning diameter: 22.83″
Maximum turning length: 38.54″
Machine travels (x z): 12.2″ x 42.12″
Maximum spindle speed: 2,000 RPM
Spindle nose: A2-15
Spindle motor: 50HP
Turret configuration: 12 Tools Bidirectional
Machine dimensions: 159″ x 90″
Machine weight: 20,420 lbs
Electrical requirements: 220V/3Phz/60Hz/27kVA
18″ 3-Jaw Hydraulic Thru-Hole Chuck
Front SMW Autoblok Air Chuck BB-N-470-191-3
12D/24 Position Drum Turret
Programmable Tailstock
Tailstock Thrust Select (9-Level)
Large Spindle Bore
Tool Eye
High-Power Coolant (520W) (59 PSI, 16 GPM)
Work Light
Intelligent Safety Shield
Mazatrol Matrix II Nexus CNC Control
** Control Features
Windows XP Operating System
12.1″ Color LCD
USB I/F (2-PORT)
Lan Port
MT Connect Preparation
User Macros
EIA/ISO Input Function
Background Tool Path Check
Thread Cutting Function
Polar Coordinates Input (G122)
Velocity and Feedrate Control
Mazak Voice Adviser
Virtual Machining
OPTIONAL EQUIPMENT INCLUDED:
Re-Threading
Thread Start Point Compensation
Jorgensen Chip Conveyor – Side 1000U
