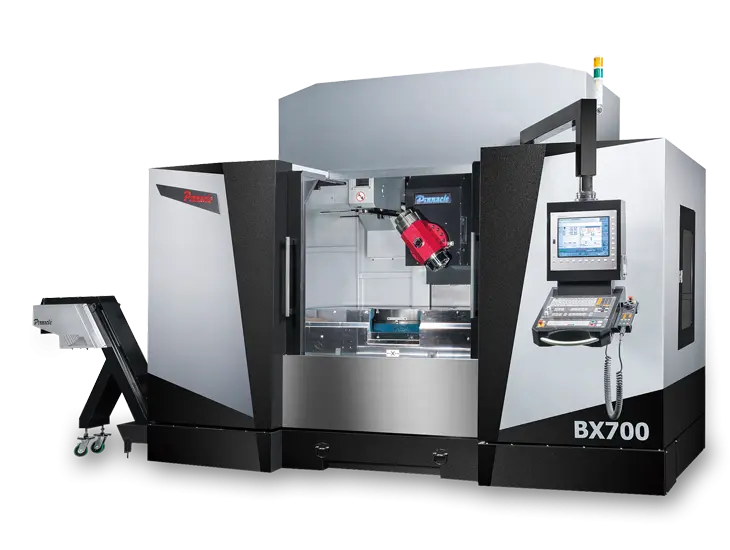

NEW 2024 PINNACLE BX-700

Table Size: 62.99" / 27.55"
Travel Range ( X Y ): 55.11" / 27.95"
Travel Range ( Z ): Vert 26.77" / Horiz 31.88"
Max Table Load: 2645.54 Lbs
Spindle Nose to Table Surface ( Vert ): 110 - 790
Spindle Center to Table Surface ( Horizontal ): 220 - 790
T- Slot: 0.70 x 4.92 x 0.19
Spindle Taper: Din40
Bearing Inner Diameter: Bearing Inner Diameter
Spindle Center to Column: 29.92
Spindle Speed: 15,000 RPM
Draw Bar Force: 1985
Main Motor ( con /56 60% kw ): 15/19.4
Motor Torque ( con / max: 52.80 / 127.59
Driver Type: Worm Gear
Reduction Ratio: 1.20
Tilting Range ( deg ): +/- 120 deg
Rotation Speed ( rpm ): 16.6
Min. Unit: 0.001
Clamp Torque ( lbs ): 1301.79
Working Torgue ( lbs ): 564.23
Type: Embedded
Driver Type: Direct Drive
Table Diameter: 24.80
Center Bore Diameter: 2.36
Rotation Speed ( rpm ): 50
Min. Index: 0.001
Max Table Load: 2204.62
Rapid Feed Rate ( x/y/z ): 1.41 x 1.41 x 0.94
Feed Rate ( x/y/z ): 39.37
X/Y/Z Axis Rated Torque: 160.19 / 160.19 / 160.19
B-Axis Rated: 97.35
C Axis Rated: 97.35
ACT Type: Plate
Cam Type: Duel Arm
Tool Selection ( Bi-Directionall ): Random
Tool Storage Capacity ( PC's ): 30 ( 40 - 60 )
Max. Tool Diameter: 2.95
Max. Tool Length: 250
Positioning XYZ Linear Axis: 0.005
BC Rotary ( sec ): 15" /10"
Repeatability XYZ Linear Axis: 0.003
BC Rotary ( Sec ): 10" /8"
Air Requirement: 85.34
Voltage: 220/440 3 Phase 60 Hz
Power Requirments: 104.974 / 52.486 220/440
Coolant Tank Capacity: 118.87
Machine Weight: 26,455. lbs
Machine Height: 125.98"
Floor Space ( L x W ): 153.14" X 125.19"
Packing Size ( L x W x H ): 127.16" x 90.55" x 100.78"
TOUCH PROBE + RECEIVER + CALIBRATION BALL: $12,880.00
CTS + 20 BAR PUMP & TANK 71.6 Instead of 48 Nm: $27,968.00
CTS + 20 BAR PUMP & Tank: $9,936.00
CHAIN TYPE 40 - TOOL ATC: $7,176.00
CHAIN TYPE 60 - TOOL ATC: $19,320.00
HEIDENHAIN LINEAR SCALES FOR XYZ AXIS: $13,432.00
OIL SKIMMER: $496.80
