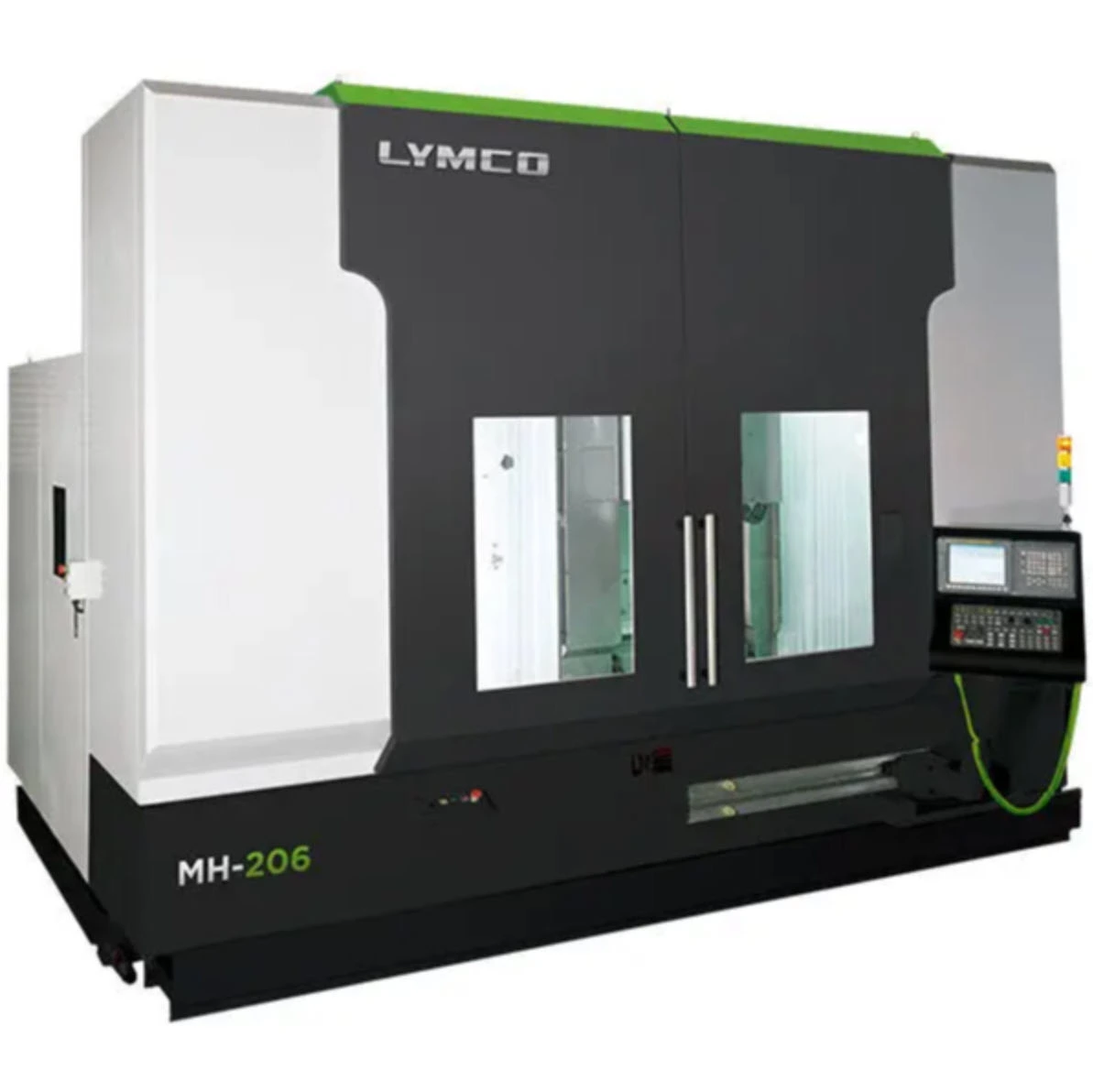

The MH series moving column machining centers are designed for the application of multi-function horizontal milling & machining solutions. This machining center series could be equipped with Fanuc, Heidenhain, Siemens, or Mitsubishi controls. The major benefit of this fixed-table, moving-column machine structure is to have consistent production of long parts and workpieces. The fixed working table allows effortless utilization of various fixtures for easy tool setting. The increase in productivity will enable shops to quickly turn over parts. The horizontal spindle orientation was known for superior chip management and evacuation.
To solve the challenge of high product mix and low volume, LYMCO moving column machine enables the processing of multiple workpieces at a time. The standard zone splitter as well as standard CNC preset multiple work zone allow loading and unloading simultaneously while the machine cuts at a different work zone.
Different customers had diverse needs. For example, the detachable fixed working table will allow a floor type configuration, a dual rotary table as a dual station milling center, or even an extended length as a screw manufacturing machine.
Customer aiming at high productivity could utilize the stationary nature of the work table to implement advanced automation solutions from automated inventory control, guided resupply robots, to autoload and unload, cutting, and inspection.
| X | 2,000 mm | 78.74" |
| X Axis Alternate | 3000 4000 6000 8000 mm | 3000 4000 6000 8000 mm |
| Y | 700 mm | 27.559" |
| Y Axis Alternate | 550 700 800 | 550 700 800 |
| Z | 600 mm | 23.622" |
| Z Axis Alternate | 600 800 1000 | 600 800 1000 |
| Control | CNC (Fanuc or client specified,) | CNC (Fanuc or client specified,) |
| Weight | 15,000 25,000 | 15,000 25,000 |
