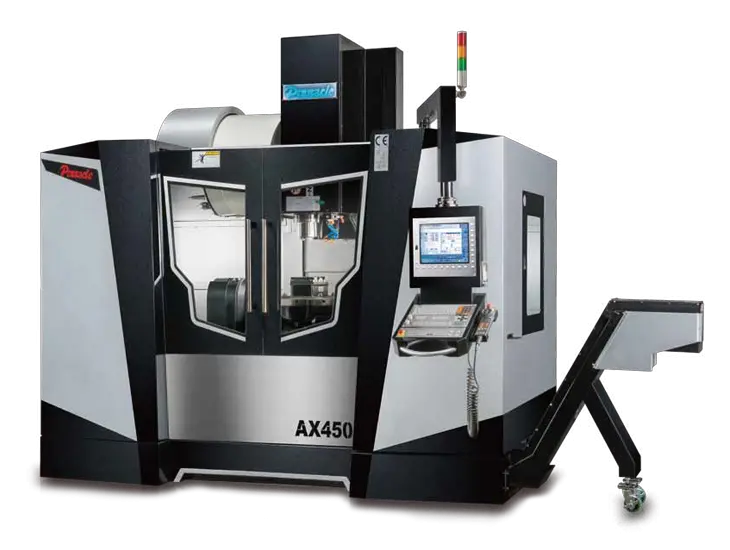

NEW 2024 PINNACLE AX450
Overview
High-Tech Expertise in 5-axis Machining
Fanuc Oii-MF Control, Coolant System, Full Guarding, Oil cooled Ball Screws, Spindle oil cooler, Spindle air blast, Cutting air blast, Flushing sysytem, Chain type chip conveyor, Arm type 24 ATC. CNC machine 5 axis 4+1 rotary table, VMC.
Pinnacle AX450 CNC Machine. Fanuc Oii-MF control, Coolant system, Full guarding, Oil cooled Ball screws, Spindle oil cooler, Spindle air blast, cutting air blast, Flushing sysytem, Chain type chip conveyor, Arm type 24 ATC.
Specs
Table Size: 17.7"
Travel Ranges ( X/Y/Z ): 30 x 24" x 22"
T Slot Size ( size & deg ): 14 x 45 min
Max. Table Load (0 deg/90deg g): 660/550 lbs.
Max. Workpiece Size (W x H): 23.6" x 11.8"
Diameter of Table Hole: 6.73"
Spindle Nose to Table Surface: 2" - 24"
A Axis, Tilt (deg) / (0.001 deg.): 220 deg (+/- 110 deg.)
C Axis Rotary (deg) / (0.001 deg.): 360 deg.
Tool Shank & Pull Stud: ISO40 Opt. HSK 63
Spindle Inner Diameter: 2.75591"
Spindle Speed (rpm) Direct Drive: 10,000 ( Option 12 & 15,000)
Spindle Speed (rpm) Built In: 15000
Main Motor (con./30min hp: 13 / 18
AXIS SERVO MOTOR:
Rapid Feed Rate (X/Y/Z - IPM: 1181" / 1181"
Feed Rate ( X/Y/Z - IPM: 945 IPM
Feed Rate ( A / C rev / min): 393 IPM
X Axis Rated Torque - In/lb: 88.51
Y Axis Rated Torque - In/lb: 88.51
Z Axis Rated torque - In/lb: 88.51
A Axis Rated Torque - In/lb: 88.51
C Axis Rated Torque - In/lb: 88.51
AUTO TOOL CHANGER:
ATC Type: 24, 30 ( Chain - 40/60)
Cam Type: Arm
Tool Selection ( Bi-Direction ): Random
Tool Storage Capacity ( Pcs ): 24 ( 30, 40 & 60 )
Max. Tool Diameter: 3.54331 ( 2.99213 )
Max Tool Length: 11.8"
Max Tool Weight: 17.63 lbs
MISCELLANOUS:
Air Requirement PSI: 85 PSI
Hydraulic Requirements: 40, 30 L
Voltage: 220 volt/3 phase/60 cycle
Power Requirement ( KVA ): 40
Coolant Tank Capacity ( Gal ): 80 Gallon
Machine Weight: 16,000 lbs.
Machine Height: 114"
Floor Space ( L x W ): 122" x 88"
Packing Size ( L x W x H ): 122" x 88" x 100"
