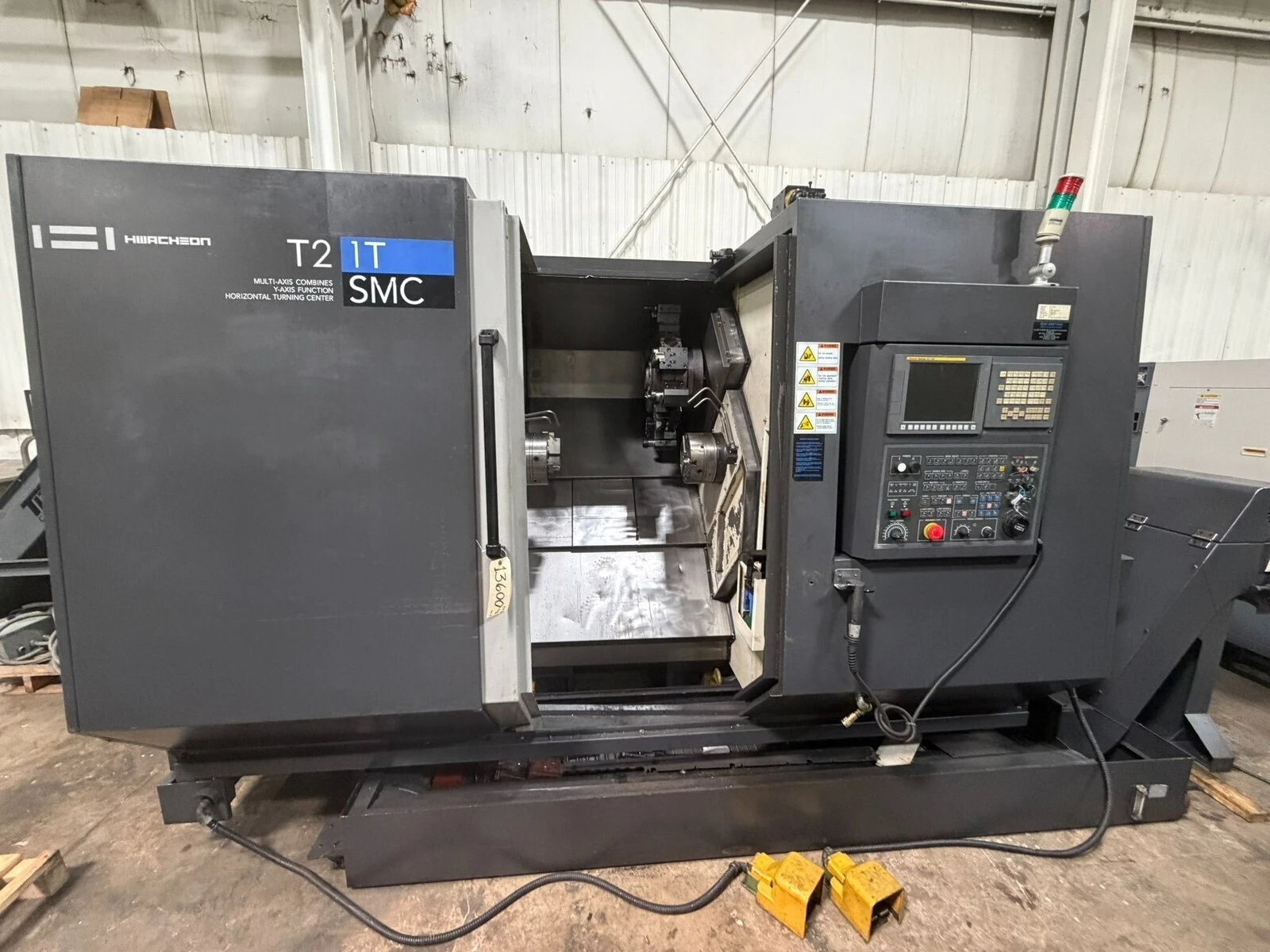

Used Multi-axis CNC lathe, features a dual 8-inch chuck, 12-position turret with live tooling, and a FANUC Oi-TD CNC control. Offers 5 axes, spindle speed up to 5000 rpm, and coolant system. Dimensions: 122x86x83, weight 17000 lbs.
| Swing | 34.6" | 878.84 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.56" | 65.024 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 18.1" | 459.74 mm |
| Control | CNC (Fanuc) | CNC (Fanuc) |
Bar Capacity 2.56
C Axis Index 0.001
Center Distance 24.5
Chuck Size Dual 8
Live Tooling Speed 6000
Machine Dimensions 122x86x83
Machine Weight 17000
Number of Axes 5
Rapid Traverse (B) 1181
Rapid Traverse (X/Z) 1181
Spindle Motor Cont. 20
Spindle Nose A2-6
Spindle Speed 5000
Swing 34.6
Travel (B) 21.62
Travel (X) 9.65
Travel (Z) 20.47
Turning Diameter 18.1
Turret Indexing Time 0.1
Turret Stations 12
FANUC Oi-TD CNC CONTROL
MAIN AND SUB SPINDLES
C-AXIS
12 POSITION TURRET WITH LIVE TOOLING
PARTS CATCHER
CHIP CONVEYOR
COOLANT SYSTEM
