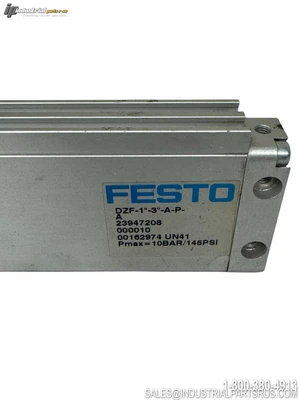

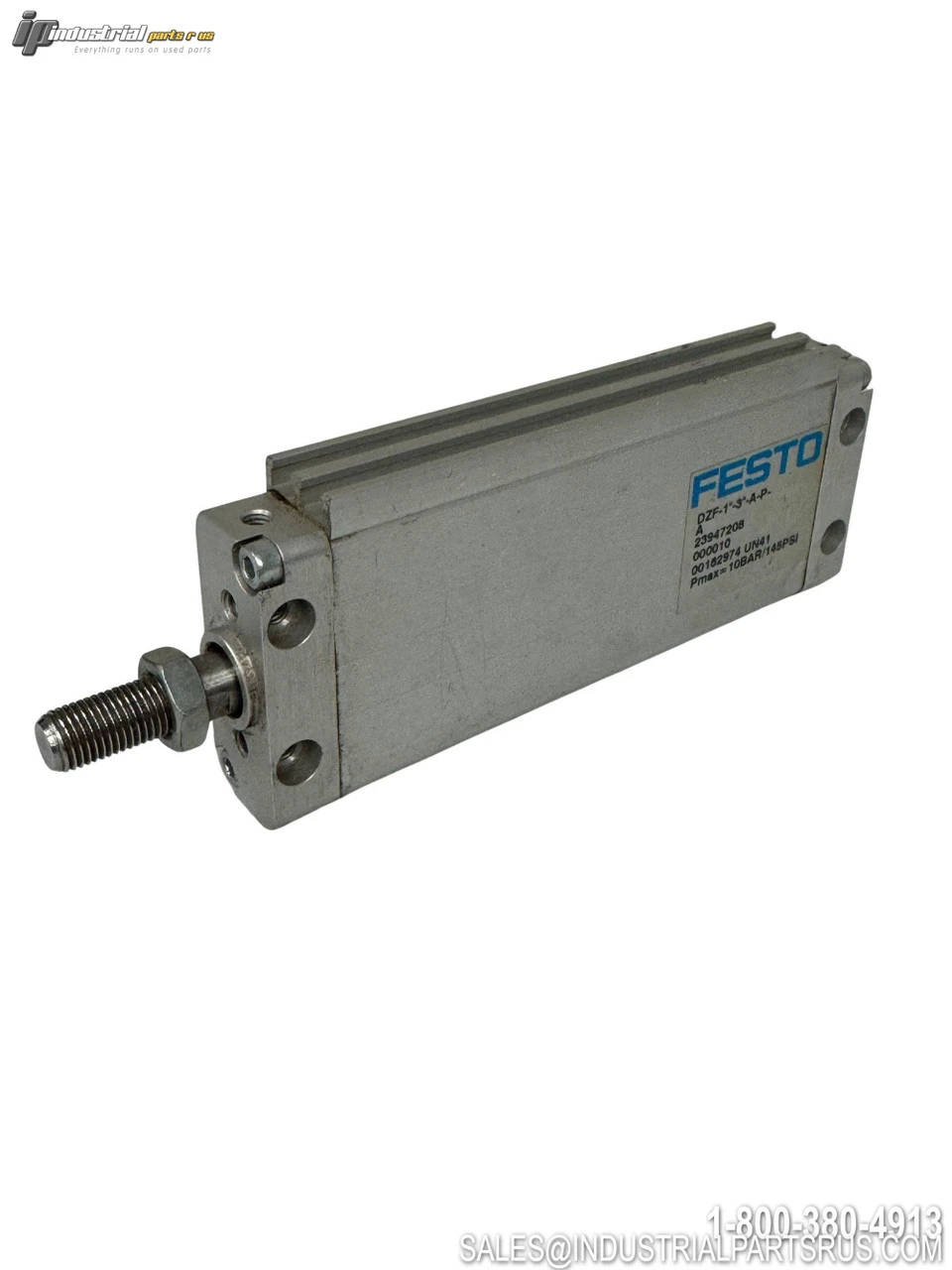

USED FESTO DZF-1"-3"-A-P-A

The Festo DZF-1"-3"-A-P-A is a compact flat cylinder designed for double-acting pneumatic applications. This cylinder features a 1-inch bore diameter with 3-inch stroke length and includes magnetic piston for position sensing. The cylinder uses compressed air per ISO 8573-1:2010 standards and features elastic cushioning at both ends.
Specification
Value
Brand
Festo
Model/Part Number
DZF-1"-3"-A-P-A
Festo Part Number
162974
Type
Flat Cylinder, Double-Acting
Bore Diameter
1 inch
Stroke Length
3 inches
Stroke Range
0.04 to 8 inches
Piston Rod Thread
3/8-24 UNF-2A Male
Operating Pressure
0.1 to 1 MPa (1 to 10 bar)
Maximum Force
295 N Advance
Port Size
10-32 UNF
Operating Medium
Compressed Air ISO 8573-1:2010 [7:4:4]
Cushioning
Elastic cushioning rings/plates at both ends
Position Detection
Via proximity sensor (magnetic piston)
Torsional Backlash
±1 degree
Protection Against Rotation
Oval piston design
Corrosion Resistance
CRC 2 - Moderate stress
Construction
Wrought aluminum alloy housing
We warranty all items for 30 days from date of purchase.

SKU: AI1733
UPC: 679523686185
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Manufacturer: Festo
Part Number: DZF-1"-3"-A-P-A
Shelf: B-6
Bore Diameter: 1 in
Model: DZF-1"-3"-A-P-A
MPN: DZF-1"-3"-A-P-A
Type: Pneumatic Cylinder
