USED SMC CDG1BN20-150
Overview
Description

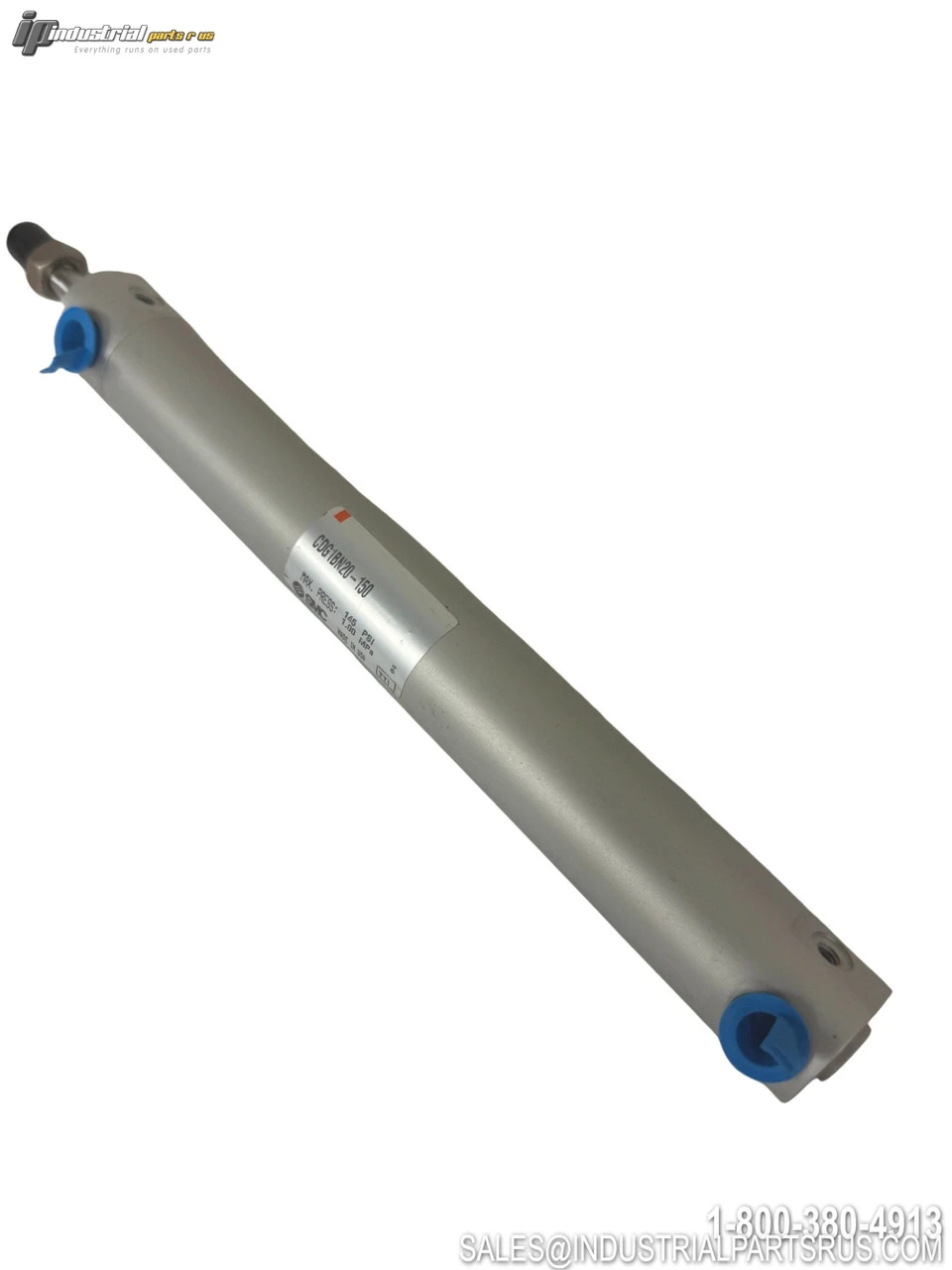

The SMC CDG1BN20-150 is a precision pneumatic cylinder from the CG1 series designed for demanding industrial automation applications. This double acting, single rod cylinder features a 20mm bore diameter and 150mm stroke length, with an impact extruded aluminum tube that provides an extraordinarily smooth finish for low break-away pressure and smooth stroke action. The cylinder is auto switch capable and offers multiple mounting options for versatile installation requirements.
Specification
Value
Brand
SMC
Model/Part Number
CDG1BN20-150
Series
CG1
Cylinder Type
Double Acting Single Rod
Bore Diameter
20mm
Stroke Length
150mm
Maximum Operating Pressure
1.0 MPa
Minimum Operating Pressure
0.05 MPa
Proof Pressure
1.5 MPa
Cushion Type
Rubber Bumper
Mounting Type
Basic (Without Trunnion)
Material
Impact Extruded Aluminum
Auto Switch Capable
Yes
Rod End
Female Available as Standard
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: AI1742
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: SMC
Part Number: CDG1BN20-150
Shelf: B-6
Bore Diameter: 20 mm
Model: CDG1BN20-150
MPN: CDG1BN20-150
Type: Pneumatic Cylinder
