USED BIMBA FO-312-MT
Overview
Description

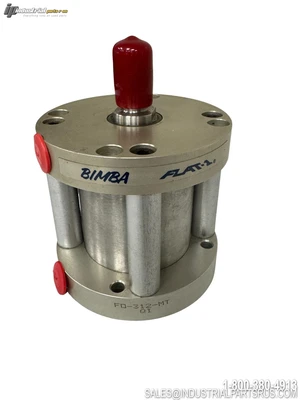

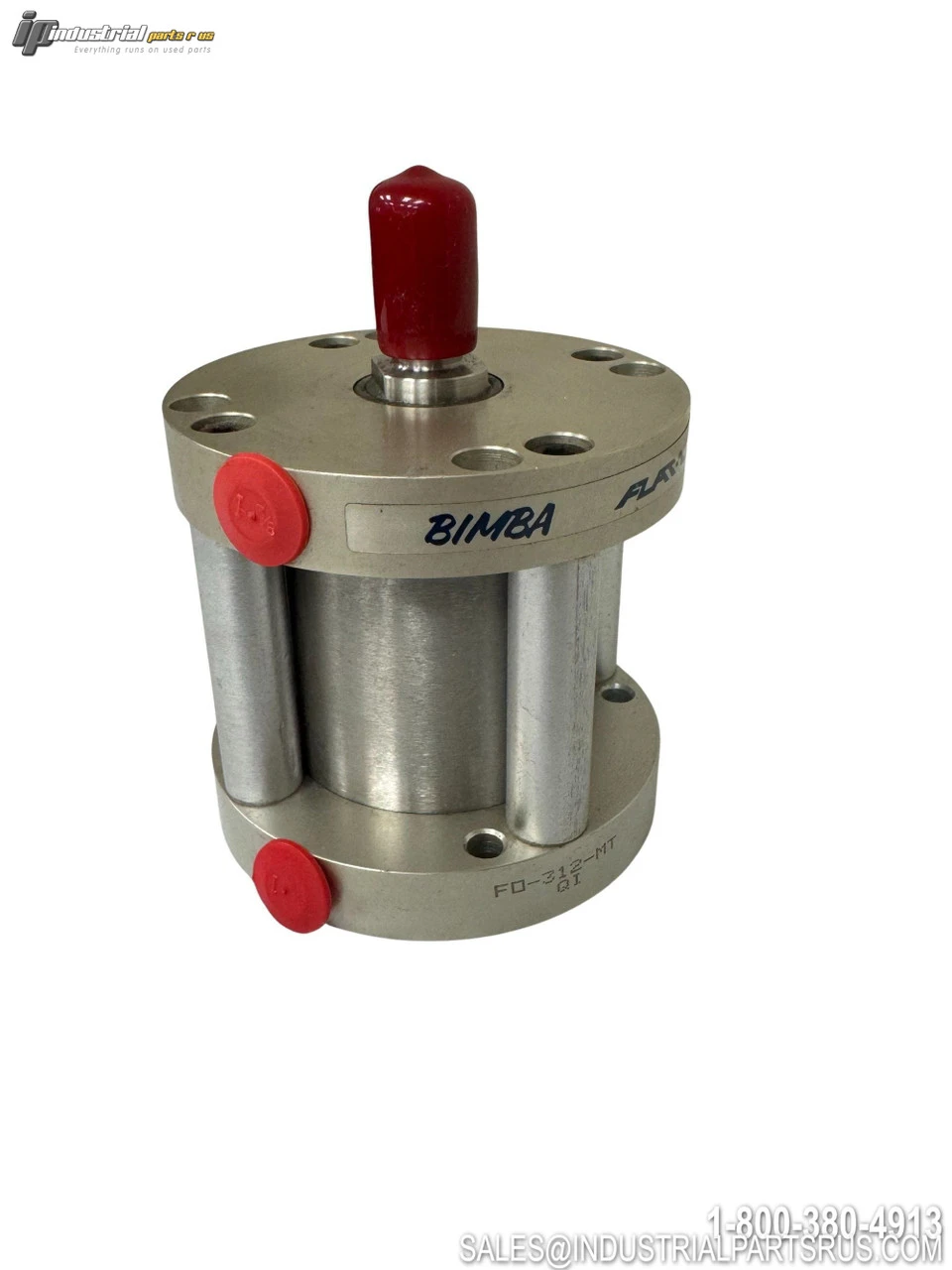

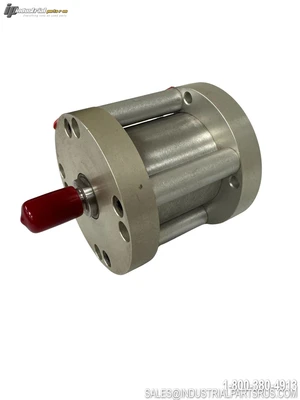

The Bimba FO-312-MT is a double-acting, single end rod pneumatic cylinder from the Flat-1 series designed for compact industrial applications. This cylinder features a 2-inch bore diameter with a 2-inch stroke length and incorporates a fine male threaded rod for secure attachment connections.
Specification
Value
Brand
Bimba
Model/Part Number
FO-312-MT
Product Series
Flat-1
Cylinder Type
Double Acting, Single End Rod
Bore Diameter
2"
Stroke Length
2"
Mounting Type
Standard
Rod Thread
Fine Male
Bumpers
No Bumpers
Magnetic Piston
None
Hollow Rod
No
Rod Wiper
No
Maximum Pressure
200 PSI
Port Size
1/8" NPT
Rod Material
Hard Chrome-Plated Stainless Steel 303
Body Material
Stainless Steel 304
Seal Material
Buna-N
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: AI1734
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Bimba
Part Number: FO-312-MT
Shelf: B-19 Tub 2
Bore Diameter: 2 in
Model: FO-312-MT
MPN: FO-312-MT
Type: Pneumatic Cylinder
