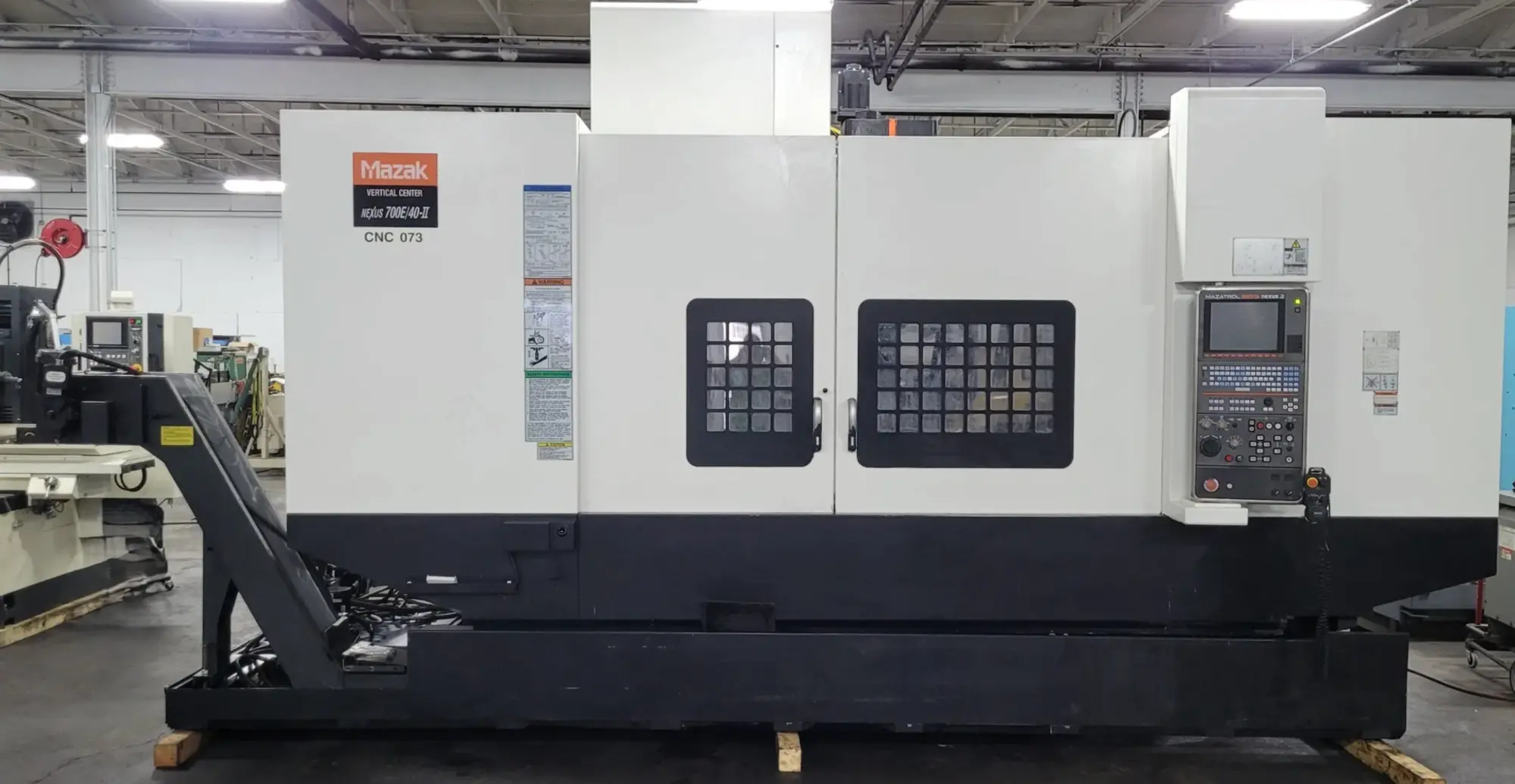

USED 2016 MAZAK NEXUS VCN 700E/40-II
Overview
Description
2016 MAZAK NEXUS VCN 700E/40-II Vertical Machining Center with low 5040 cutting hours. Features 30 hp, 12,000 RPM, 4-axis, Nikken CNC rotary table, high-pressure coolant system, and Matrix Nexus 2 control. Equipped with BJMAZACC-2D software and Windows 7 OS.
Specifications
| X | 80" | 2,032 mm |
|---|---|---|
| Y | 27.6" | 701.04 mm |
| Z | 28.3" | 718.82 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | #40 | #40 |
| Table-W | 27.5" | 698.5 mm |
| Table-L | 80" | 2,032 mm |
| # Axis | 4 | 4 |
| Control | CNC (MATRIX NEXUS 2) | CNC (MATRIX NEXUS 2) |
Equipped With
Nikken 302MA CNC Rotary Table
Low Hours only 5040 Cutting Hours
High Pressure thru Tool Coolant System
Chip Conveyor
Power Transformer
Relocation Device
Windows 7 Operating System
Hand Held Coolant Nozzle
BJGOO Slope Constant
BJMAZACC -2D Software (Shape Compensation)
Operator door with interlock with lock-switch
Cover coolant
Dry Pit Foundation with complete toe-clamp
Matrix Nexus 2 Control
12.1” Color LCD
EIA/ISO Code Input Function
Additional EIA/ISO Functions
LAN Port in Electrical Cabinet
USB I/F (2 Port)
Absolute Encoder System
Manual Pulse Generator 1 Dial (Detachable)
