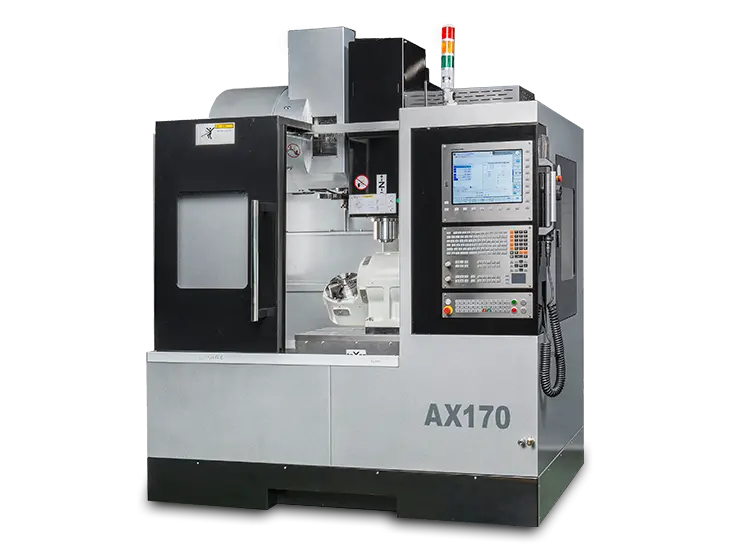

NEW 2024 PINNACLE AX170
Overview
High-Tech Expertise in 5-axis Machining
Rotary table, table rotation and tilting are directly driven by motor. Directly driven by motor, featuring no backlash and high speed.
Specs
Table Size : 19.68 in
Travel Ranges (X/Y/Z): 760 x 610 x 560 mm
Max Table Load: 350 kg
Max workpiece size: 23.62 in x 305
Diameter of Tale hole: 1.968 in
A Axis, Tilt : 220 degrees
C Axis, Rotary: 360 degrees
Distance between column: 40 mm
Spindle Speed (Belt): 10,000 RPM
Spindle Speed (Direct drive): 10,000 RPM
Spindle Speed (Built in): 20,000 RPM
Rapid Feed Rate (X/Y/Z): 30/30/24
ATC Type: Disk
Tool storage capacity: 24/30
Machine Weight : 7100
