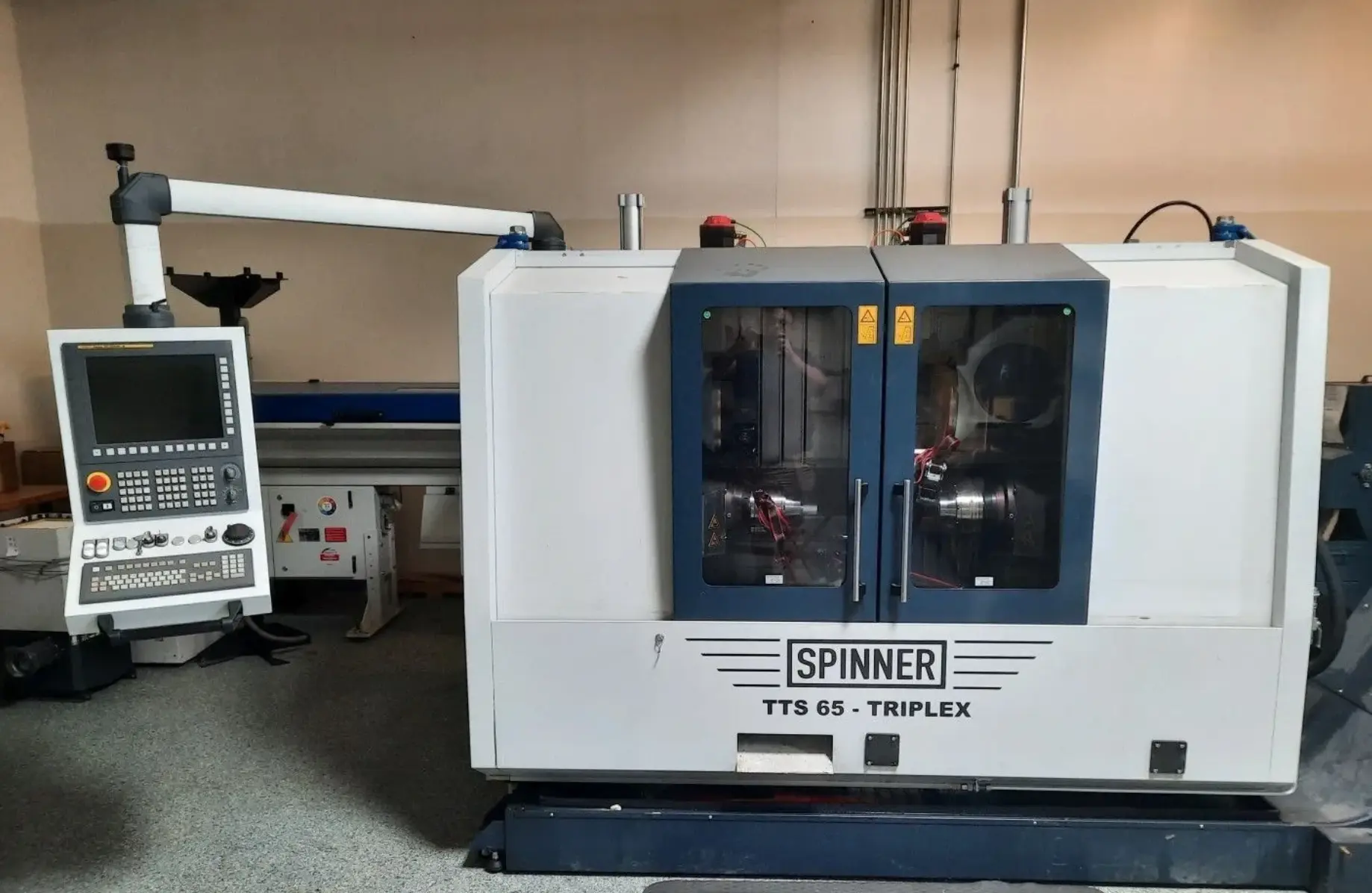

USED 2022 SPINNER TTS-65 TRIPLEX
Overview
Used CNC Lathe. Features include 65 mm bar capacity, 7,000 max RPM, live tooling, sub spindle, Iemca Master 880 Verso bar feeder, and mist collector. Low usage with only 74 cut time hours.
Specs
Machine/Spec TTS-65 Triplex
Working Area
X1/X3 Axis 7.1
X2 Axis 7.1
Y1/Y3 Axis 1.77/-1.77
Z1/Z3 Axis 27.7
Z2 Axis 24.4
Rapid Travers X 1181 IPM
Rapid Travers Y 1181 IPM
Rapid Travers Z 1181 IPM
Spindle 1 RPM 5000 RPM
Spindle Nose A6/DIN
Spindle Bore 2.56
Chuck Diameter 8.3
Performance 32.2 hp
Torque 111.4 ft/lb
Spindle 2 RPM 7000 RPM
Spindle Nose 110mm
Spindle Bore 1.65
Chuck Diameter 5.5
Performance 29.5 hp
Torque 94.4 ft/lb
Number of Tool Stations 3 X 12
Driven Tool Stations All
Tool Holder BMT45 (opt VDI25)
Max Speed Driven Toola 8000 RPM
Performance 5.76 hp
Torque 10 ft/lb
Machine Length 113.4
Machine Width 83.9
Machine Hieght 78.3
Machine Weight 17416.5 lb
Equipped With
6' Iemca Master 880 Verso Bar Feeder
Royal Rota Rack
Collet Chucks Main & Sub
Misc. Tool Holders
Mist Collector
1,015 POWER ON HOURS
174 Run TIME HOURS
74 CUT TIME HOURS
