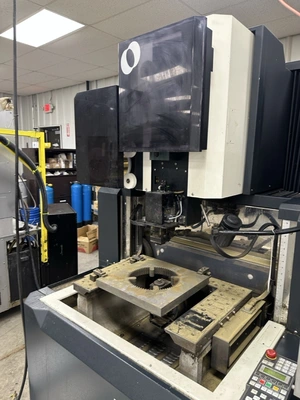

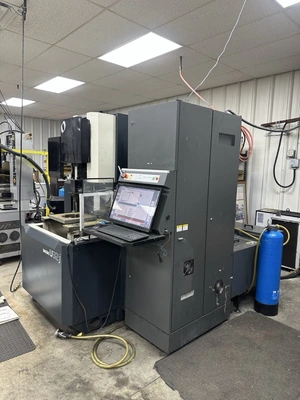

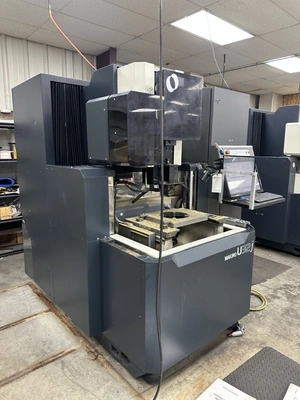

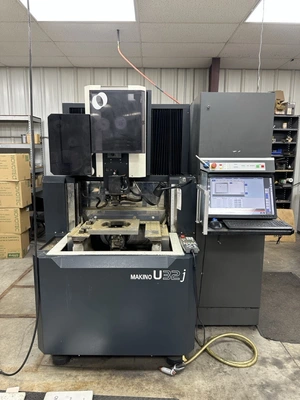

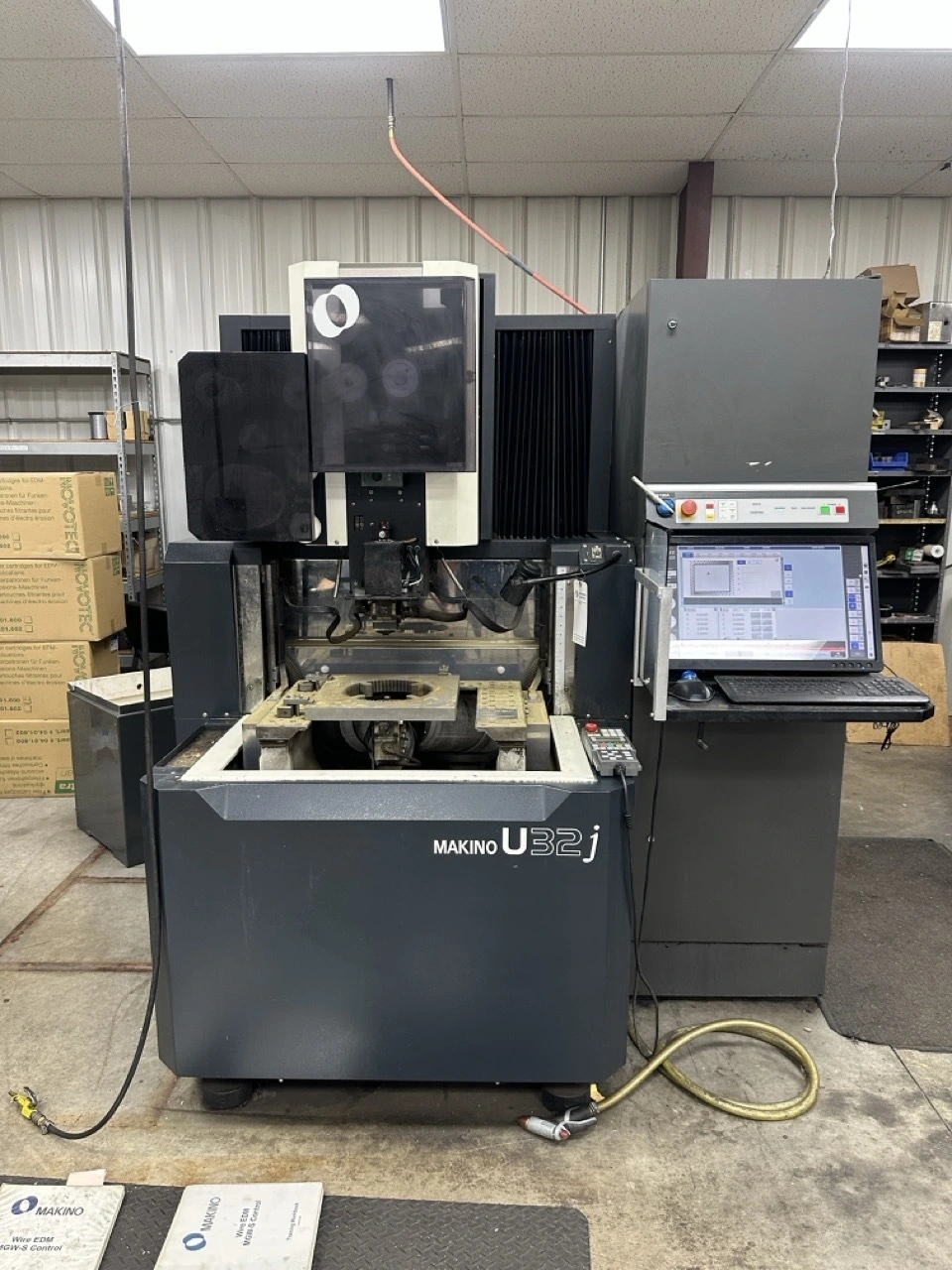

Used Wire EDM for sale. This used model features 14.6" x, 10.6" y, 8.7" z axis travel; auto threading and submerged capabilities. Equipped with Crystal II Circuit for fine finish and Makino Hyper I CNC for control.
| X | 14.6" | 370.84 mm |
| Y | 10.6" | 269.24 mm |
| Z | 8.7" | 220.98 mm |
| Auto Threading (Yes/No) | Yes | Yes |
| Submerged (Yes/No) | Yes | Yes |
Travels & Capacity
X / Y / Z Travels: 370 mm x 270 mm x 220 mm (14.6″ x 10.6″ x 8.7″)
U / V Travels: +/- 50 mm X +/- 50 mm (+/- 2.0″ x +/- 2.0″)
Max Workpiece Size: 780 mm x 590 mm x 220 mm (30.7″ x 23.2″ x 8.7″)
Max Workpiece Weight: 1,322 lbs
Work Table Dimensions: 570 mm x 370 mm (22.4″ x 14.6″)
Machining Performance
Surface Finish Capability: Down to 0.07µmRa (34µinRa) with Crystal II Circuit

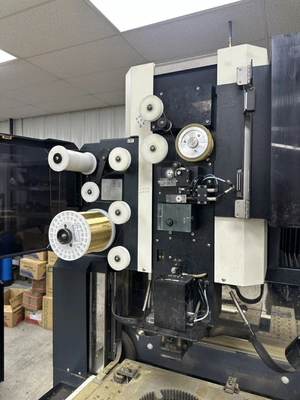

Wire Diameter Support: 0.1 mm to 0.3 mm (Standard); 0.05 mm to 0.07 mm (Optional)
Positioning Accuracy: 0.05mm Glass
Scale Feedback System
Taper Angle: +/- 15° at 100 mm Thickness (Standard Guides)

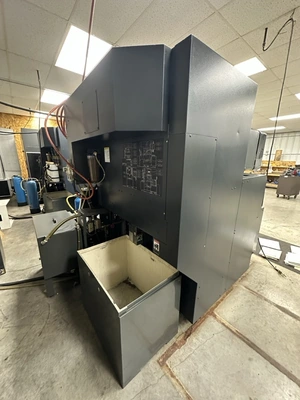

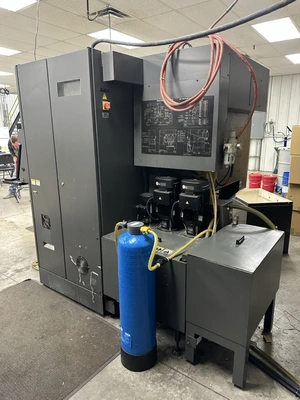

Machine & Fluid System
Machine Weight: 7,055 lbs
Dielectric Capacity: 156 Gallons
Filter Type: Paper Filter (2 Elements)

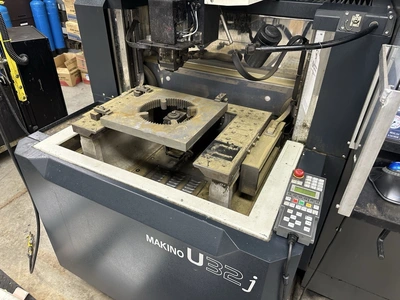

Tank Type: Programmable 3-Sided Rise & Fall Work Tank

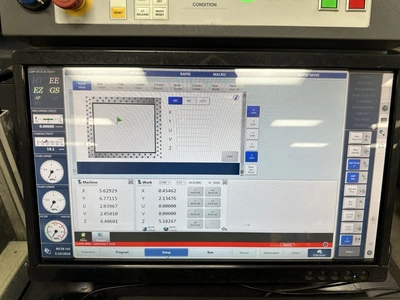

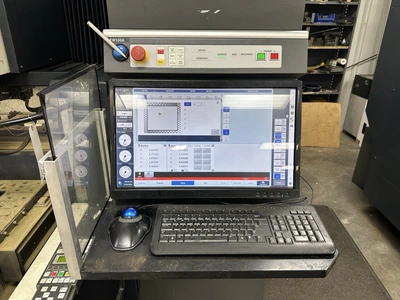

Control System: Makino Hyper I CNC (24″ HD Touch Screen)
Installation Requirements
Power Supply: 200 V +/- 10%, 3-Phase, 50/60 Hz; 12 kva Total Capacity
Air Supply: 0.5 mpa (72 psi) Minimum; 21 scfm Flow Rate
Footprint (W x D): 80.7″ x 99.2″

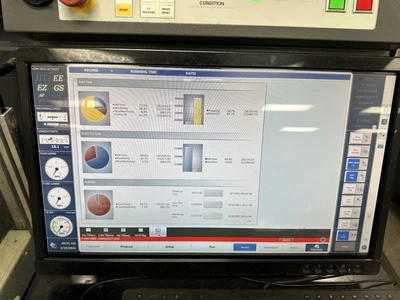

Machine Timestamps & Totals
Power On Time: 38,376:41
Auto Run Time: 12,140:14
Machining Time: 11,257:39
