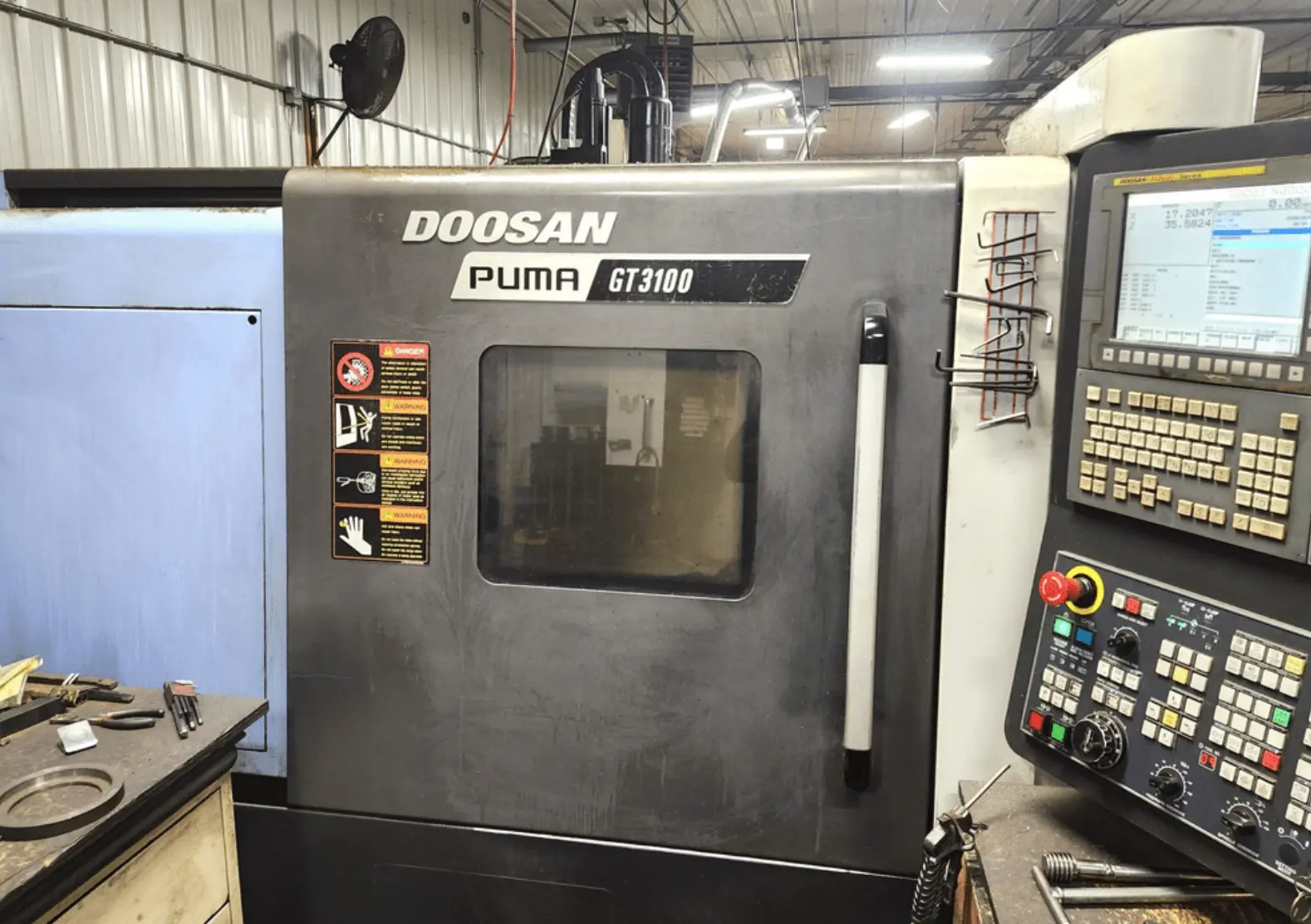

Used CNC Lathe: 12" chuck, 4" bar capacity, max RPM 2800, 45 hp. Features: DOOSAN-FANUC i Series CNC, 2-speed gearbox, hydraulic chuck, collet chuck, programmable tailstock, chip conveyor, and tool presetter.
| Swing | 720 mm | 28.347" |
| Machining Length | 755 mm | 29.724" |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 4" | 101.6 mm |
| Power | 45 hp | 33.6 kW |
| Max RPM | 2,800 RPM | 2,800 RPM |
| Turning Dia | 18.9" | 480.06 mm |
| Tailstock | Yes | Yes |
Max Swing:28.3″ (718.82 mm)
Max Cutting Diameter:18.9″ (480.06 mm)
Max Cutting Length:29.7″ (754.38 mm)
X-Axis Travel:10.2″ (259.08 mm)
Z-Axis Travel:32.7″ (830.58 mm)
Chuck Size:12″ (304.8 mm)
Bar Capacity:4″ (101.6 mm)
Spindle Bore:4.53″ (115.06 mm)
Spindle Nose:A2-11
Spindle Motor:45 HP (33.6 kW)
Spindle Speed:2,800 RPM
Turret Positions:12
DOOSAN-FANUC i Series CNC Control, 2-Speed Gearbox, 12″ 3-Jaw Hydraulic Chuck, S26 Collet Chuck, Programmable Tailstock, Tool Presetter, Chip Conveyor, Box Ways
