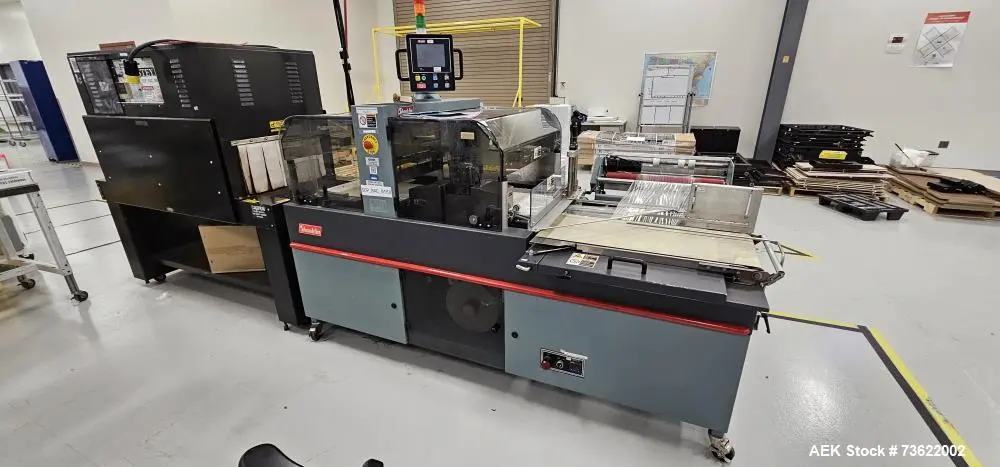

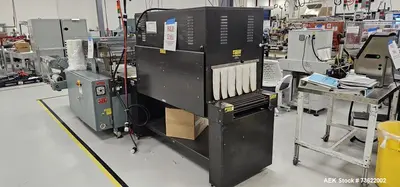

USED SHANKLIN TR1 W/EASTEY TUNNEL

Used Shanklin Triumph Model TR1 Horizontal Side Seal Shrink Wrapper. Machine is capable of speeds up to 60 jaw cycles per minute (dependent on product and application). Has a package size range of 3" - 48" length; 2" - 15" width; 1/8" - 5" height, with change parts that accompany machine that allows up to 8.5" high product. Maximum film web width of 21" wide centerfolded film. 21" Long x 1" heat seal knife, 14.5" wide x 33" long infeed, 15.5" long x 22" wide discharge conveyor. Allen Bradley Micrologix 1500 PLC. Longitudinal seal: weld bead at side of package. Transverse seal: wide fin hot knife jaws. Has pin wheel perforator and scrap rewinder. Machine is print registered film capable, eye/sensors required at minor cost addition. Includes Eastey model ET1608 shrink tunnel, aperture 19" wide x 8-1/2" tall, conveyor belt 16" wide x 39" long. Elec: 1/60/230V.

Used Equipment Facts About This Machine
Manufacturer Information:
Shanklin is a recognized manufacturer of shrink packaging equipment, including side sealers, L-sealers, shrink tunnels, and related wrapping systems used in production packaging environments. This listing is for a Shanklin Triumph Model TR1 horizontal side seal shrink wrapper paired with an Eastey Model ET1608 shrink tunnel. Eastey is commonly associated with shrink tunnels and packaging support equipment used with shrink wrapping systems.
Main Product Description:
Used Shanklin Triumph Model TR1 horizontal side seal shrink wrapper with Eastey Model ET1608 shrink tunnel. This shrink packaging system is designed for horizontal side seal wrapping applications and is capable of speeds up to 60 jaw cycles per minute, depending on product and application. The Shanklin TR1 handles packages from 3" to 48" long, 2" to 15" wide, and 1/8" to 5" high, with accompanying change parts that allow products up to 8.5" high. Features include an Allen Bradley Micrologix 1500 PLC, 21" wide centerfolded film capacity, pin wheel perforator, scrap rewinder, longitudinal weld bead side seal, and transverse wide fin hot knife jaws. The included Eastey ET1608 shrink tunnel has a 19" wide x 8-1/2" tall aperture and a 16" wide x 39" long conveyor belt.
Specifications:
Manufacturer: Shanklin
Model: TR1 w/Eastey Tunnel
Serial Number: 26017
Stock Number: 73622002
Equipment Type: Horizontal side seal shrink wrapper with shrink tunnel
Category: Packaging Equipment
Subcategory: Shrink Equipment - Horizontal Lap Sealers
Wrapper Speed: Up to 60 jaw cycles per minute, depending on product and application
Package Length Range: 3" to 48"
Package Width Range: 2" to 15"
Package Height Range: 1/8" to 5"
Maximum Product Height with Change Parts: Up to 8.5"
Maximum Film Web Width: 21" wide centerfolded film
Heat Seal Knife: 21" long x 1"
Infeed Conveyor: 14.5" wide x 33" long
Discharge Conveyor: 15.5" long x 22" wide
PLC: Allen Bradley Micrologix 1500
Longitudinal Seal: Weld bead at side of package
Transverse Seal: Wide fin hot knife jaws
Additional Features: Pin wheel perforator and scrap rewinder
Print Registered Film Capability: Capable; eye/sensors required at minor cost addition
Shrink Tunnel Manufacturer/Model: Eastey ET1608
Tunnel Aperture: 19" wide x 8-1/2" tall
Tunnel Conveyor Belt: 16" wide x 39" long
Electrical: 1/60/230V
Condition: Not specified
Overall Dimensions: Not specified
Applications:
This Shanklin TR1 side seal shrink wrapper with Eastey tunnel is suitable for shrink packaging operations that require side seal wrapping and heat shrink finishing for individual products or multipacks. It may be used in general packaging, contract packaging, consumer goods, food-adjacent packaging when appropriate for the application, printed film packaging, retail display packaging, and production lines requiring a compact horizontal shrink wrapping system.
Suitable Products / Materials:
Suitable products may include boxed goods, printed items, multipacks, trays, retail products, consumer goods, and other package formats that fit within the listed package size range. Film compatibility should be confirmed by Aaron Equipment or the buyer before purchase, but the listing verifies use with up to 21" wide centerfolded film.
FAQs:

What is this machine used for?
This machine is used for horizontal side seal shrink wrapping applications where products are wrapped in shrink film and then passed through a shrink tunnel for final package appearance and containment.

What is the speed of the Shanklin TR1 shrink wrapper?
The listing states the machine is capable of speeds up to 60 jaw cycles per minute, depending on product and application.

What package sizes can this Shanklin TR1 handle?
The listed package size range is 3" to 48" long, 2" to 15" wide, and 1/8" to 5" high. The machine includes change parts that allow products up to 8.5" high.

Does this unit include a shrink tunnel?
Yes. The system includes an Eastey Model ET1608 shrink tunnel with a 19" wide x 8-1/2" tall aperture and a 16" wide x 39" long conveyor belt.

Is this machine capable of print registered film operation?
The listing states the machine is print registered film capable, with eye/sensors required at minor cost addition.

What electrical service is listed?
The listing specifies 1/60/230V electrical.

Can Aaron Equipment help with shipping?
Yes. Aaron Equipment can assist with shipping coordination for used equipment purchases. Buyers should contact Aaron Equipment to confirm loading, crating, freight options, and any special handling requirements for this Shanklin TR1 shrink wrapper and Eastey tunnel.

How can Aaron Equipment help me decide if this shrink wrapper is right for my application?
Aaron Equipment can help review the listed package size range, film width, electrical requirements, shrink tunnel aperture, and application details to determine whether this Shanklin TR1 system is a suitable fit for your product and production needs.
