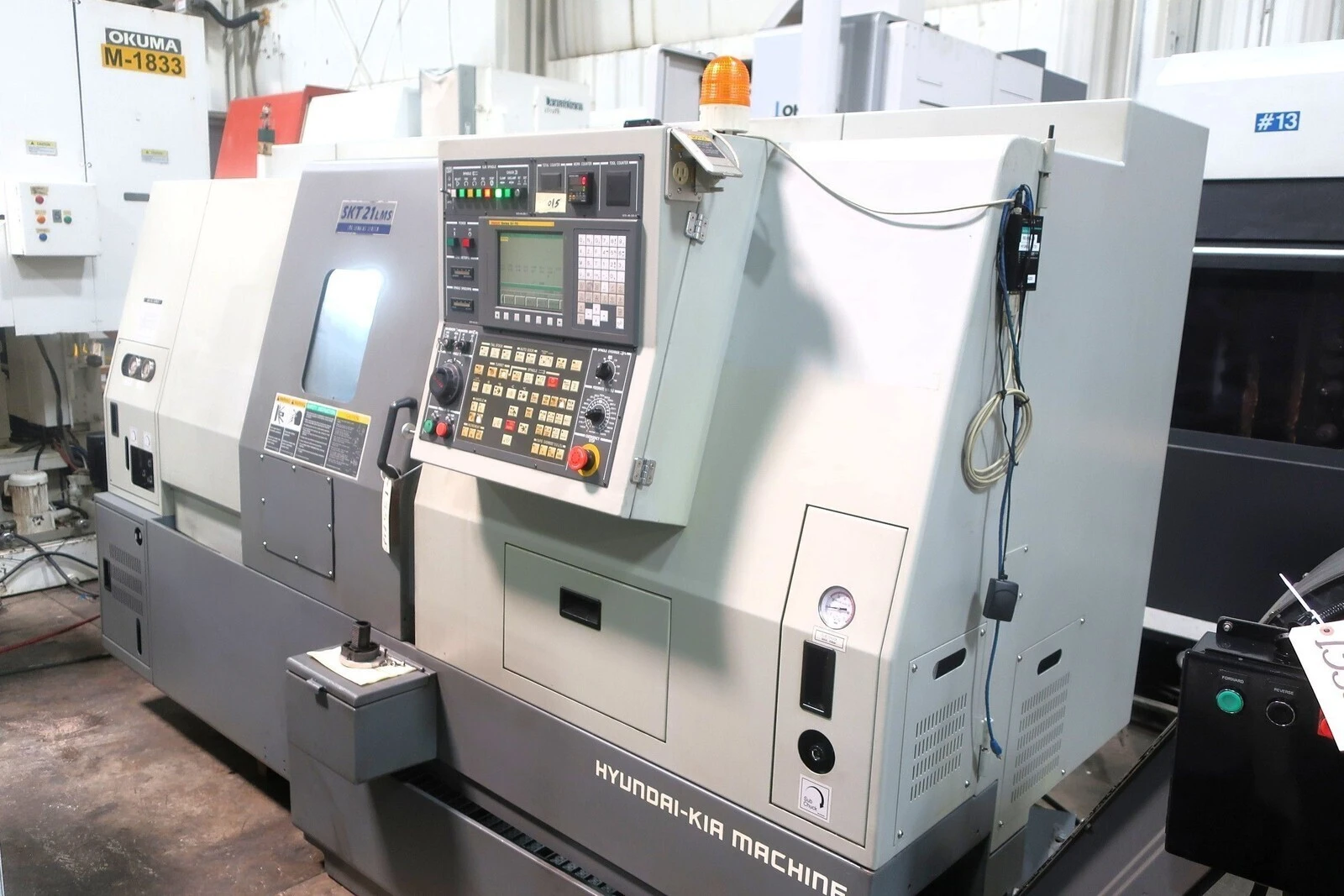

USED 2010 HYUNDAI KIA SKT21LMS
Overview
Description
In used condition, offering a 21.7" swing over bed, 10.2" max turning diameter, and speeds up to 4,000 RPM. Features include dual spindles, 12-station turret, and tool presetter.
Specifications
| Swing | 21.6" | 548.64 mm |
|---|---|---|
| Machining Length | 20.9" | 530.86 mm |
| # Axis | 4 | 4 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.56" | 65.024 mm |
| Power | 15 hp | 11.2 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 10" | 254 mm |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
| Control | CNC (Fanuc) | CNC (Fanuc) |
CAPACITY: SWING OVER BED / SWING OVER SADDLE 21.7" / 13.8"
MAXIMUM TURNING DIAMETER / LENGTH 10.2" / 20.87"
SPINDLE: SPINDLE SPEEDS 25 - 4,000 RPM
SPINDLE BORE / BAR CAP / SPINDLE NOSE 3.1" / 2.56" / A2-6
MAIN MOTOR (30 MIN. / CONTINUOUS) 20 / 15 HP
SUB-SPINDLE: SPEEDS 40 - 4,000 RPM
SPINDLE BORE / BAR CAP / SPINDLE NOSE / INDEXING 1.7" / 1.3" / A2-8
MOTOR (30 MIN. / CONT.) 5 / 3 HP
TURRET: NUMBER OF POSITIONS 12 STATIONS
X-AXIS TRAVEL 8.3"
Z-LONGITUDINAL 21.7"
ROTARY TOOLS: ROTARY TOOL SPEED 30 - 4,000 RPM
ROTARY TOOL MOTOR (30 MIN. / CONTINUOUS) 5 / 3 HP
RAPIDS: RAPID TRAVERSE (X / Z ) 590 / 708 IPM
FEED RATE (X & Z ) 0.04 - 157 IPM
Equipped With
8″ 3-Jaw Chuck on Main Spindle
5″ 3-Jaw Chuck on Sub Spindle
Sub Spindle
12 Station Live Tool Turret
Tool Presetter
Part Catcher
Chip Conveyor
Tooling on Turret Included as Pictured
