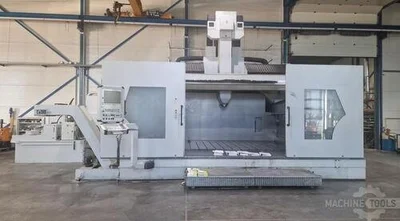

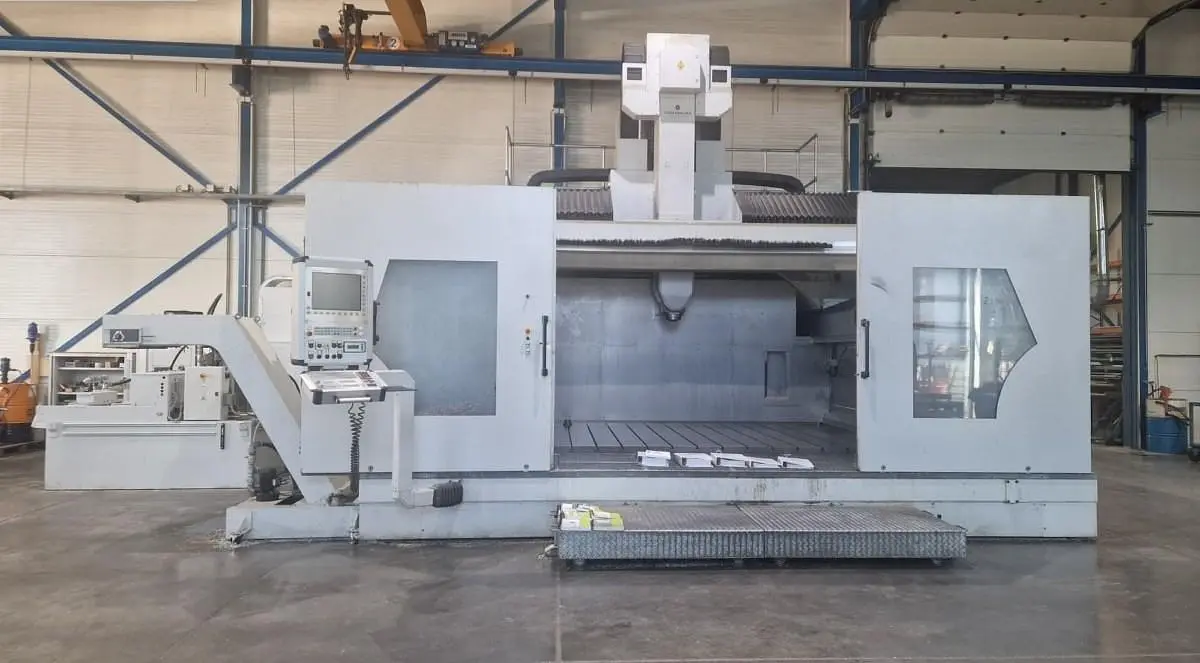

Heidenhain iTNC 530 CNC 5-Axis Path Control handwheel HR520 15” TFT color displayNEW Spindle Installed 6-months agoIncludes vibration sensorIncludes bearing temperature sensorIncludes rotary joint for internal tool magazine feed (IKZ)Extraction system LTA Industrial Air CleaningMachine room canopy50-position tool changer, chain magazine, behind the machineChip conveyor, ejection 60° to the left, front-facingNo probe available!!!Blum Laser tool measurement ‘Control NT-MicroVH30 milling head2-axis milling head: VH30,Siemens Weiss milling spindleSpindle power S1 (100% duty cycle) 60 kW,Spindle speed 22,000 rpm, 95 Nm, HSK-A63External dimensions of fork head L x W approx. 500 x 600 mmNominal torque of rotary axes Control loop A: min. 1,200 NmC: min. 1,047 NmClamped A and C axes: 3,000 Nm(Continuous grease lubrication with automatic relubrication system)Swivel axis – spindle nose 326 mmTool holder HSK 63 ATool clamping Spring clampTool unclamping HydraulicPermissible tool weight 4.5 kg (manufacturer’s specification)Clamping tableLength x width x height - 2500 x 3250 x 400 mmTable load 8000 kg/m² (max. 16,000 kg)T-slots, arranged longitudinally 18H12T-slot spacing 250 mmLinear axis drivesFeed rate X, Y, Z axes 60 m/minAxis acceleration X, Y, Z axes up to 5 m/s²Rotary axis drives – VH30Feed rate A- and C-axis 360 °/sAxis acceleration A- and C-axis 700 °/s²Resolution A- and C-axis 0.0001Accuracies of linear axes – in accordance with VDI / DGQ 3441Positioning accuracy X-axis P= 0.026 mmY-axis P= 0.028 mmZ-axis P= 0.020 mmRepeatability X-axis Ps= 0.015 mmY-axis Ps= 0.016 mmZ-axis Ps= 0.010 mmResolution of measuring systems (interpol) A-, C-axis 0.0001°Accuracy of rotary axes – VH30Positioning accuracy A- and C-axis P= 12" = 0.0033°Repeatability A- and C-axis Ps= 8" = 0.0022°Coolant supply External and internalCoolant/lubricant supply (emulsion) at the front of the milling spindle withbelt filter systemVolume 1500 lPump 1: 40 l/min at 20 barPump 2: 20 l/min at 40 bar,Air blow at the front of the milling spindleDimensions, weightsFootprint (excluding peripheral equipment) approx. 7600 x 7300 x 5650 mmTotal weight approx. 53,500 kgElectrical connection dataVoltage (three-phase) 400 VFrequency 50 HzCompressed air connection (to be provided by customer)Required air pressure 6 barAverage air consumption approx. 15 m³/h

Specifications

Manufacturer: Zimmermann
Model: FZ 33 C
Year: 2014
Condition: Used
Stock Number: 5654366
Spindle speeds: 22,000 rpm
X axis travel: 2,500 mm
Y axis travel: 3,000 mm
Z axis travel: 1,250 mm
Table dimensions: 2,500 x 3,250 mm
Table capacity: 16,000 kg
C axis: ±300°
Milling-head swivable: ±110°
Spindle taper: HSK 63A
Total power requirement: 130 kW
Machine dimensions: 7.6 x 7.3 x 5.7 m
Machine weight: 53.5 Ton
