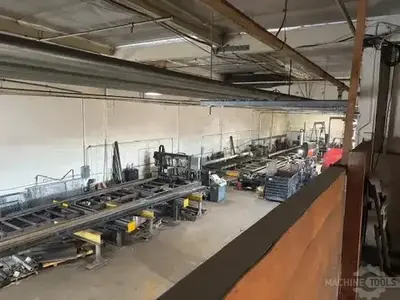

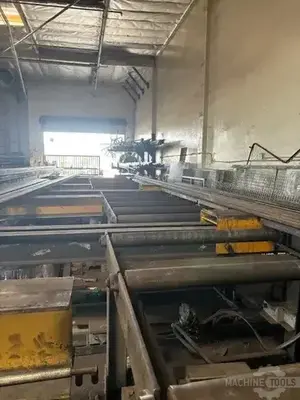

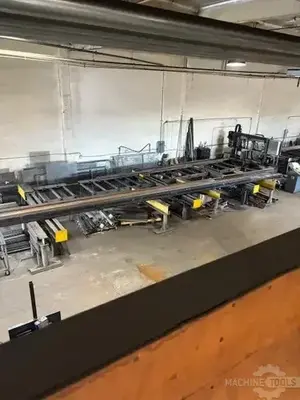

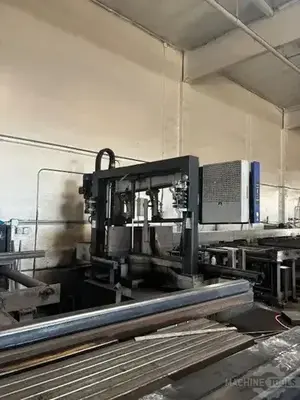

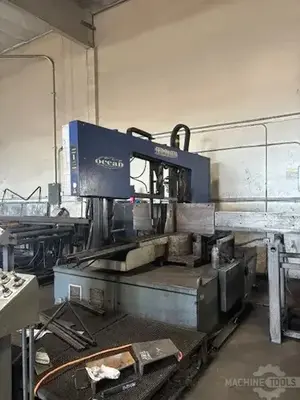

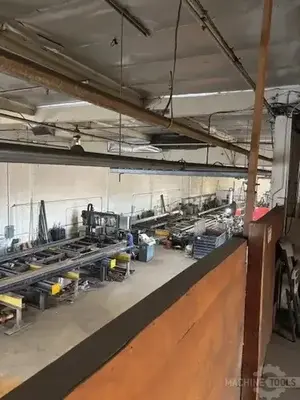

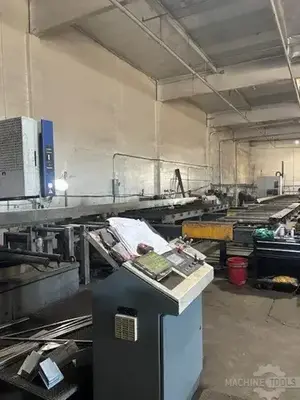

USED 2021 OCEAN TERMINATOR DCM 18/25

Dual Column Band Saw

Request a Quote
Add to Cart
90° Straight Capacity: 18″ H x 25″ W
45° Miter Capacity (Left/Right): 18″ H x 16″ W
60° Miter Capacity (Left/Right): 18″ H x 10″ W
Blade Size: 22" L x 1.5″ W x 0.050″ Thick
Blade Wheel Diameter: 23"
Blade Speed Range: 50 to 492 FPM
Table Height: 37"
Blade Drive Motor: 15 HP
Hydraulic Motor: 2 HP
Machine Weight: 7,275 Lbs
Machine Dimensions: 130″ L x 134″ W x 91″ H
Automated Moveable Guide Arm (Adjusts with Vise): Bi-Directional 60° Mitering (Left and Right)

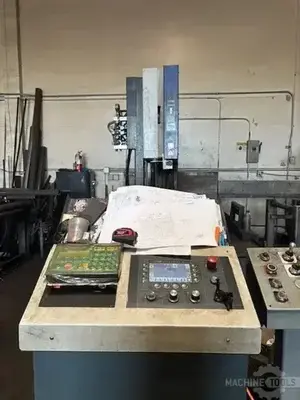

Digital Control Console with Hyd-Mech Interface: Dual-Cylinder Hydraulic Down-Feed Control
Full-Stroke Hydraulic Dual-Vise Clamping (Both Sides of Blade): Heavy-Duty Cast Iron Guide Arms with Carbide Inserts
Heavy-Duty Dual-Column Design: Independent Feed Rate and Feed Force Adjustment
Integrated Overhead Hydraulic Plunger Clamp: Integrated Work Area Lamp
Laser Line Cut Alignment System: Real-Time Blade Speed/Miter Angle/Amperage Display
Slide-Out Hydraulic Power Pack Drawer: Variable Frequency Drive (VFD) Mechanical Blade Speed Control
