CNC Vertical Machining Center
| X | 41" | 1,041.4 mm |
| Y | 20" | 508 mm |
| Z | 24" | 609.6 mm |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 24 | 24 |
| Taper | 40 | 40 |
| Table-W | 19" | 482.6 mm |
| Table-L | 47" | 1,193.8 mm |
| # Axis | 4 | 4 |
Request a Quote
Add to Cart
X-Axis Travel: 41.3"
Y-Axis Travel: 13.7"
Z-Axis Travel: 24"
Spindle Speed: 10,000 RPM
Spindle Taper: CAT 40
Tool Magazine Capacity: 24 ATC

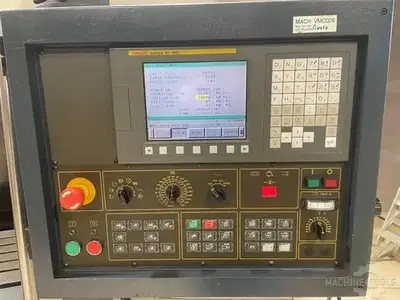

Control: Fanuc Oi-MC
Chip Removal: Chip Auger
Estimated Dimensions: 115" x 87" x 119"
Estimated Weight: 13000 Lbs
