| X | 800 mm | 31.496" |
| Y | 650 mm | 25.591" |
| Z | 550 mm | 21.654" |
| # Axis | 5 | 5 |
| Power | 16.2 kW | 21.7 hp |
| Control | CNC (Heidenhain iTNC530) | CNC (Heidenhain iTNC530) |
X Axis Travel: 34.6"
Y Axis Travel: 24.8"
Z Axis Travel: 24.8"
Spindle Speed: 12,000 RPM
Spindle Taper: CT40
Spindle Motor: 20 HP
Rapid Rate Y Axis: 1,181 IPM
Rapid Rate X Axis: 1,181 IPM
Rapid Rate Z Axis: 1,181 IPM
Tool Changer: 32 ATC
Max Pallet Load: 1543 LBS
Max tool weight: 17.6 LBS
Max tool diameter without free side pockets: 3.15"
Max tool diameter with free side pockets: 5.12"
Max tool length: 12.4"
Pallet Size: 49.2" x 27.6"

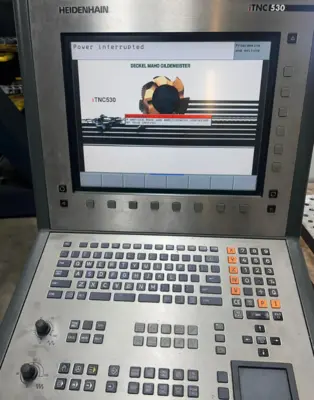

Heidenhain iTNC530 Control
Heidenhain TS 641 Tool Probe
Chip Conveyor
Chip Rinsing in Door
Spray Pistol with Pump
