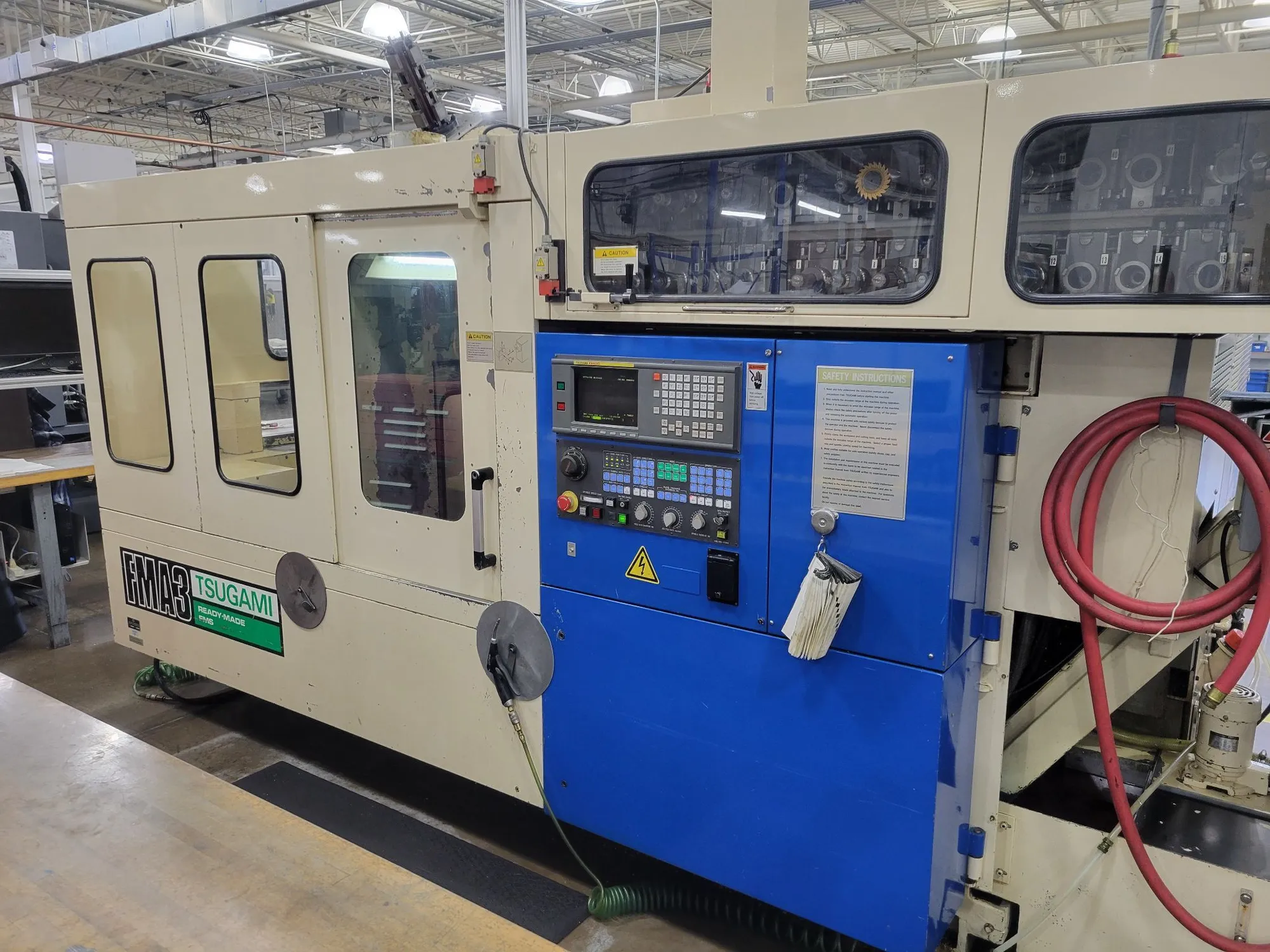

Tsugami FMA3 11 Pallet HMC with Fanuc Control, 10,000 RPM Spindle, 62 ATC, 11 Station Pallet Pool, Auto Part Gauging, Tool Breakage Detection, and Chip Conveyor.
| X | 14.17" | 359.92 mm |
| Y | 13" | 330.2 mm |
| Z | 15.74" | 399.8 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 62 | 62 |
| Taper | CAT-40 | CAT-40 |
| Pallet-W | 11.75" | 298.45 mm |
| Pallet-L | 11.75" | 298.45 mm |
| # Axis | 4 | 4 |
| Control | CNC (Fanuc CNC Control) | CNC (Fanuc CNC Control) |
| Dimensions | 159" x 98" x 108" | 159" x 98" x 108" |
| Weight | 23,148 LBS | 23,148 LBS |
Pallet Size...............11.75" X 11.75"
Max Workpiece Weight......176 lbs
Maximum Workpiece Size....11.81" x 11.81" x 14.17"
X-Axis Travel.............14.17"
Y-Axis Travel.............13"
Z-Axis Travel.............15.74"
Spindle Motor.............10 HP
Spindle Taper.............CAT-40
Spindle Speed.............10,000 RPM
Rapid Traverse Rates......945 IPM
Feed Rates................236 IPM
Tool Changer..............62
Tool Change Time..........1 Second
Tool Change Chip Time.....5 Seconds
Dimensions................159 x 98 x 108
Weight....................23,148
Fanuc CNC Control
10,000 RPM Spindle
62 Station ATC
11 Station Pallet Pool
Auto Part Gauging
Tool Breakage Detection
Chip Conveyor
**REBUILT SPINDLE 7/2020**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
