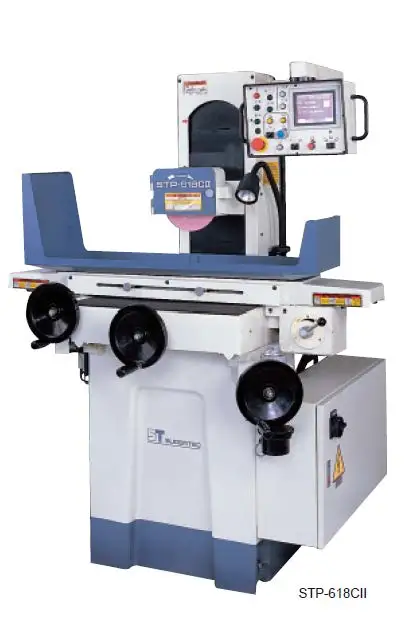

Supertec STP-618CII 3 axis Surface Grinder
Automatic Surface grinder, Water grinder, 6 x 18, 3 axis grinder with incremental downfeed, fully automatic surface grinder, like Chevalier, Harig, Okamoto, Mitsui
| Table-W | 6" | 152.4 mm |
| Table-L | 18" | 457.2 mm |
| Horz/Vert | Horz | Horz |
| Power | 3 hp | 2.2 kW |
| Grinding Wheel Width | 8" | 203.2 mm |
| Grinding Wheel Dia. | 0.5" | 12.7 mm |
| Dimensions | 61" x 51" x 87" high Shipping | 61" x 51" x 87" high Shipping |
| Weight | 2475 lbs. | 2475 lbs. |
Table Working Surface: 6" X 18"
Cross Slide Travel: 7" manual 6 3/4" Automatic
Table Travel: 20.9" Manual, 20" Hydraulic
Table Power Feed: 16-28 FPM
Wheel Size: 8" X 1/2" X 1,1/4"
Max. Distance Under New Wheel: 15.3" no chuck
Spindle Drive Motor: 3 HP
Rapid traverse rate 4 IPM
Automatic traverse increment 0.0001"-0.0002"
handwheel graduation 0.000050"
handwheel per revolution 0.050" Micro down feed
Radid traverse rate 38 IPM
Auto traverse increment .0001" .002"
handwheel per graduation .001"
handwheel per revolution .2"
Cross feed motor 25W
elevating motor 1/2 HP
Hydraulic motor 1 HP
Machine weight 1995 lbs.
Floor space 76" X 60" X 70"
OLP-2-5003 Walker Electromagnetic fine line chuck $P.O.R.
OLP3-5002 Walker Automatic chuck control $P.O.R.
OG2-2005 Combination Coolant & dust collector $ 1,950.00
OP2-5002 auto demagnetizer $ 966.00
3 Axis auto downfeed, Downfeed handwheel waist high, Mitsubishi PLC control uses a menu-driven LCD touch screen Technology for simple operation, Modes include, Surface, Plunge Semi Automatic and crisscross, hydraulic systm, grinding wheel and arbor, Splash guard, operators manual & parts list, 1 year Warranty Parts
