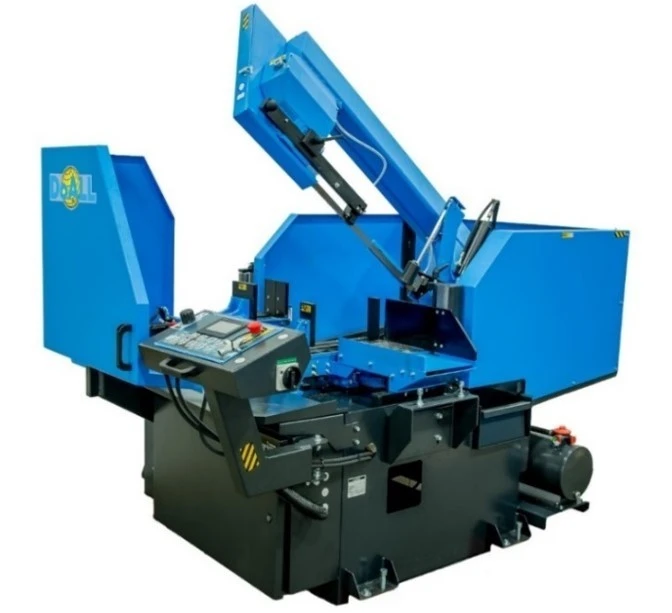

Doall S-320CNC Swivel Bandsaw 2022
Doall S-320NC Swivel Bandsaw, Heavy Duty bandsaw, Production Bandsaw.
| Rect-Cap (H) | 11.75" | 298.45 mm |
| Rect-Cap (W) | 11.75" | 298.45 mm |
| Control | CNC (Mitsubishi) | CNC (Mitsubishi) |
| Dimensions | 91" x 75" x 60" High | 91" x 75" x 60" High |
| Weight | 2,000 lbs. | 2,000 lbs. |
Cutting capacity Round 7.1"
Rectangular 13" x 12"
Bandsaw Blade Size 1 x 0.035" x 144"
Band Drive Motor HP 3 HP
Band Speed 65-328 FPM
Band Tension Hydraulic
Hydraulic Motor 1.14 HP
Coolant Pump 0.6 HP
Coolant Capacity 5 1/4 Gallon
Auto Index Single Stroke min-max 0.12" to 19.7"
Auto Index Multiple Stroke Max 394"
Electrics 230V, 60Hz, 3 ph
Approx. dimensions 91" x 90" x 60"
Machine weight 1,764 lbs.
Mitsubishi Saw Control, Overfeed Protection, Discharge Chute, Digital Read Out of Cutting Angle, Pulley-Driven Band Brush, Work Height Sensor, Work Light, VFD, Flood Coolant, Tool Kit, and all manuals.
