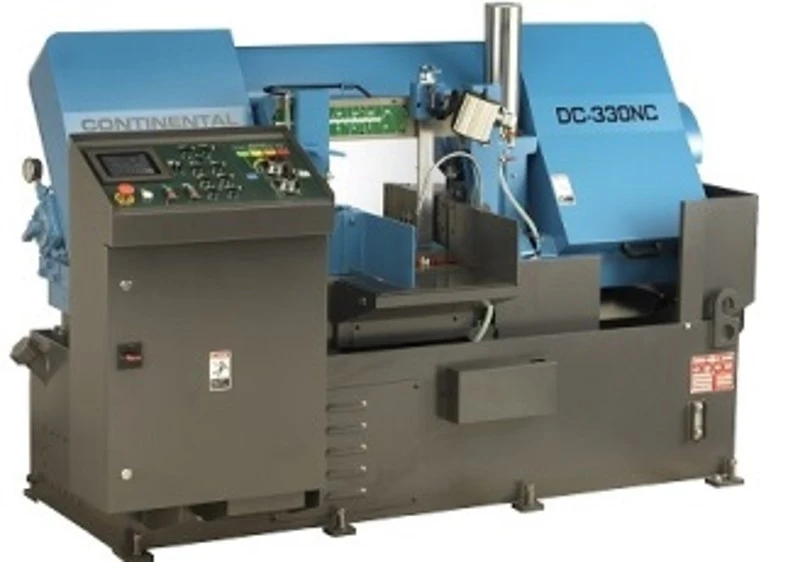

Doall Dual Column 330NC Automatic Horizontal Bandsaw
Doall DC-330NC Automatic Horizontal Bandsaw, Heavy Duty bandsaw, Production Bandsaw, Automatic Bandsaw, Dual Column.
Includes variable vise pressure, Bundling clamps and 6' infeed conveyor
| Rect-Cap (H) | 13" | 330.2 mm |
| Rect-Cap (W) | 13" | 330.2 mm |
| Control | CNC (Doall) | CNC (Doall) |
| Dimensions | 89" x 87" x 56" high | 89" x 87" x 56" high |
| Weight | 4,410 lbs. | 4,410 lbs. |
Cutting capacity Round 13"
Rectangular 13" x 6.75"
Bandsaw Blade Size 1 1/4" x 167"
Band Drive Motor HP 5 HP
Band Speed 52-430 FPM
Band Tension Hydraulic
Hydraulic Motor 1 HP
Reservoir Size 16 Gallon
Length Per Stroke 19.68"
Maximum Index Stroke Length 177"
Remnant Length 6.5"
Electrics 230V, 60Hz, 3 phase
Total Amp Draw 22 Amps
Approx. dimensions 89" x 87" x 56"
Machine weight 4,410 lbs.
optional out of square detection = $ 3,137.00
Variable Vise Pressure, Bundling Clamps, 6' Infeed conveyor, Programmable logic controller, Feed rate/Feed Force saw head control, infinite band speed controlled variable frequency drive, hydraulic retractable shuttle vise, rapid and creep speed index vise control, variable vise pressure control, halogen work light, hydraulic blade tension, band door interlocks, coolant system, and all available manuals.
