GANESH CYCLONE 32-NCY – 2013

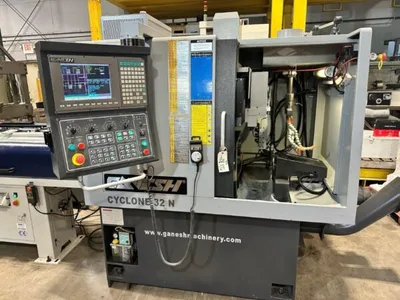

GANESH CYCLONE 32NCY CNC TURNING CENTER

AXIS CONTROLS:

CNC CONTROLLED AXIS ………………. 4-Axis(X,Y,Z,C)

X-AXIS TRAVEL (Vertical Tool) ……… 7.5″ Linear Ways

Y-AXIS TRAVEL (Cross Tool) ………… 19.3″ Linear Ways

Z-AXIS TRAVEL (Sliding Headstock)…… 6.5″ Linear Ways

C-AXIS TRAVEL (Rotational Axis) ……. 360 Degrees

SPINDLE:

DRAW TUBE ID …………………….. 1.456″

TRAUB A-32 COLLET CAPACITY ………… 1.25″

SPINDLE SPEED RANGE ………………. 100-6,000 RPM

SPINDLE HORSEPOWER ……………….. 10 HP (7.5kW)

SPINDLE CENTER HEIGHT …………….. 38″

RIGID TAPPING ON MAIN SPINDLE ……… YES

TOOLING SYSTEM:

NUMBER AND SIZE OF TOOLING STATIONS … 6 TOOLS of 1/2″

NUMBER OF INTERNAL STATIC TOOLS ……. 5 ID TOOL STATIONS

ID TOOL BORES (Round Shank) ……….. 25mm Bore for ER-20

DRIVEN TOOL SYSTEM:

NUMBER OF CROSS WORKING DRIVEN TOOLS .. 4-Cross Driven

NUMBER OF END WORKING LIVE TOOLS …… 3-Axial Driven

SIZE OF DRIVEN TOOLS (Round Shank) …. ER-20, 1/16″-1/2″

RIGID TAPPING w/DRIVEN TOOLS ………. Included

DRIVEN TOOL PROGRAMMABLE RANGE …….. 0-4000 RPM

DRIVEN TOOL HP …………………… Radial 2.0HP

AXIS DRIVES

RAPID TRAVERSE RATE X,Y & Z Axis …… 1181 IPM

C-AXIS RESOLUTION ………………… 0.001 Degrees

SYSTEM REQUIREMENTS:

ELECTRICAL REQUIREMENTS …………… 16 KVA – 42 Amps

MACHINE DIMENSIONS:

FLOOR SPACE ……………………… 86″ x 74″ x 76″

MACHINE NET WEIGHT ……………….. 6,175 LBS.

– MITSUBISHI CNC CONTROL

– EDGE REBEL V65 MAGAZINE BARLOADER

– MP 1000 PSI HIGH PRESSURE COOLANT

– PARTS CATCHER
