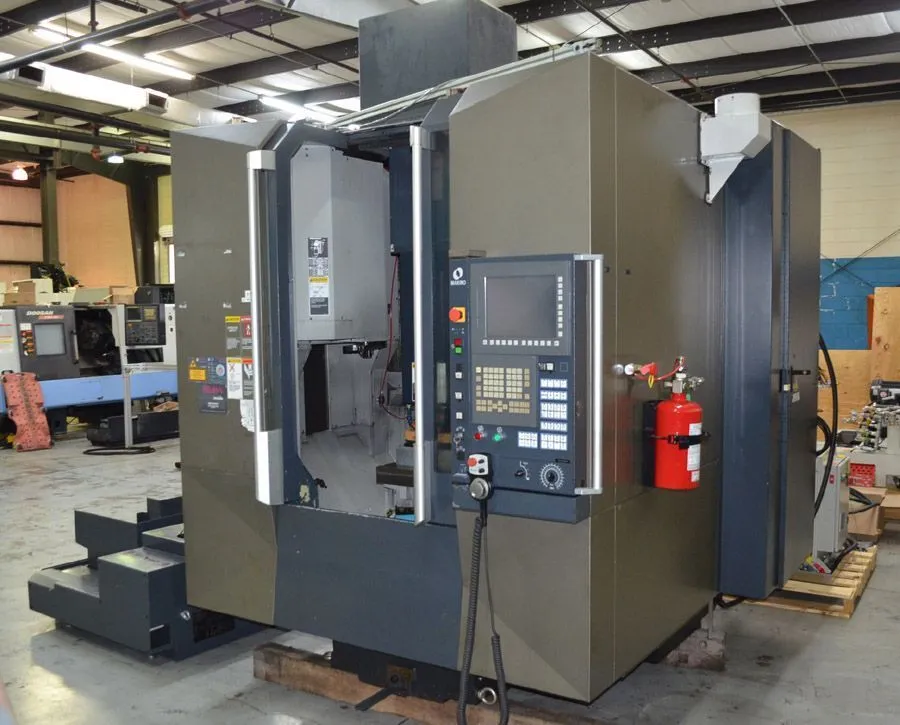

USED 2017 MAKINO F3-5AX
Overview

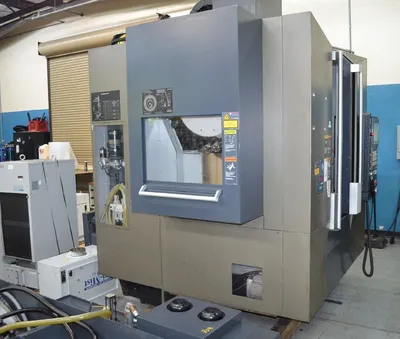

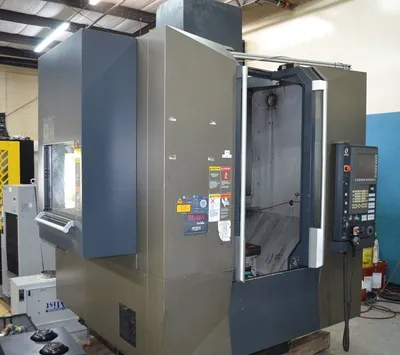

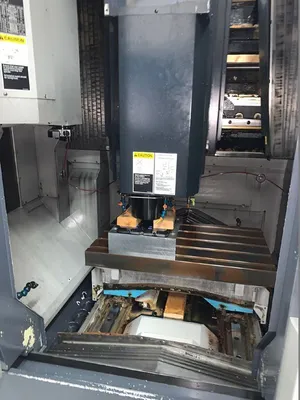

MAKINO F3-5AX, vertical machining center with 5-axis capabilities. Specs: X 25.6" Y 19.7" Z 17.7", 20 hp, 20,000 RPM, and 30 ATC. Features include HSK-A63 taper, 33.5"x19.7" table area, Fanuc servo motors, and removable Komo 5-axis trunnion CNC rotary table.
Specs
Table Working Area 33.5" x 19.7"
Maximum Table Load 1,760 Lbs
Rapid Traverse 20,000 mm/min
Cutting feed 1 - 20,000 mm/min
Equipped With

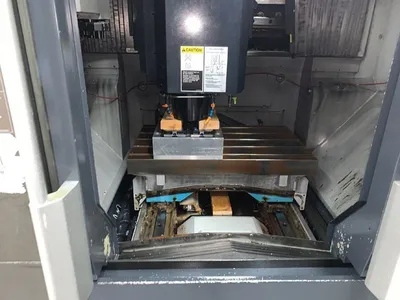

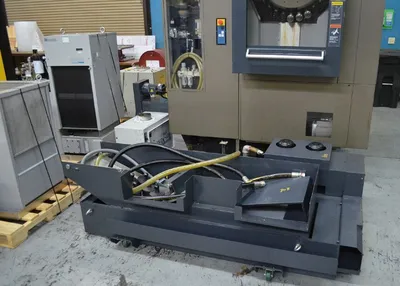

Komo TND-160M 5-Axis Trunnion CNC Rotary Table (Removeable)
specs on the rotary table"
Tilt Range -30 to + 110 Degrees
Table Diameter 6.3"
Table Max RPM - Tilt 11.1 RPM, Rotary 41.6 RPM
Servo Motors are Fanuc

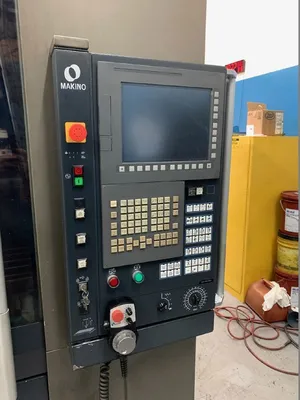

Makino Professional 5 (5-Axis CNC control)

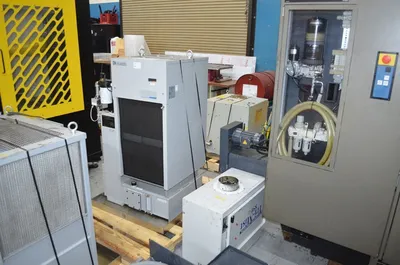

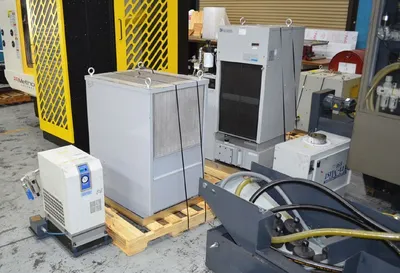

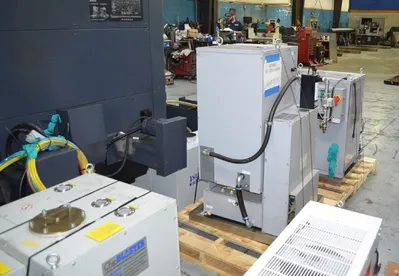

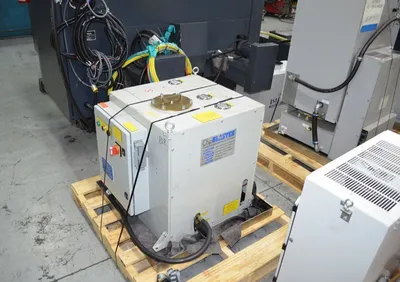

Chip Blaster Coolant Through The Spindle Unit , Model D30-35
Tooling
Used for High Precision Medical Parts. 3 identical Macines Available
