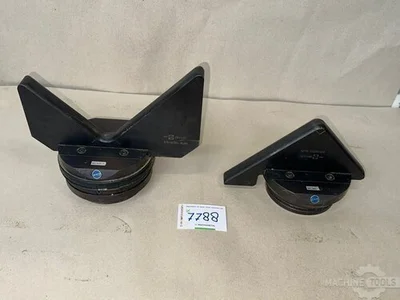

Reforming Tool type WT/NFW
Diameter 150 mm
Weight 16.9 Kg
Steel 400 N/mm2 = 6,0 mm
Inox 600 N/mm2 = 6,0 mm
Aluminium 250 N/mm2 = 6,0 mm
For finish forming and calibrating of preformed components.

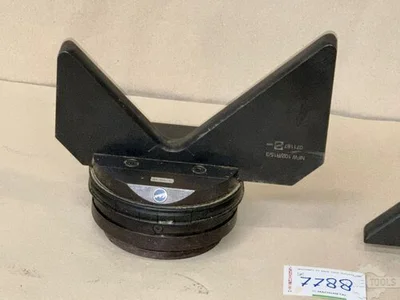

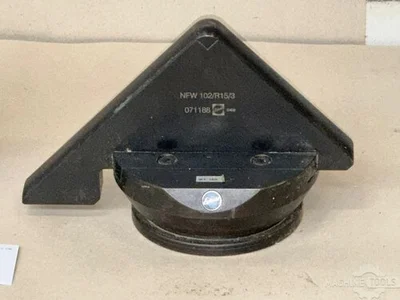

It consists of a tool carrier WT 80 S and forming inserts N NFW 102
The forming inserts NFW in steel quality are designed forone single radius and one single thickness of material only.
Different forming inserts can be put into the sametool carrier WT 80 S.
But with one set of forming inserts only one single radius in one single thickness of material can be reformed.Inserts are available different shapes
