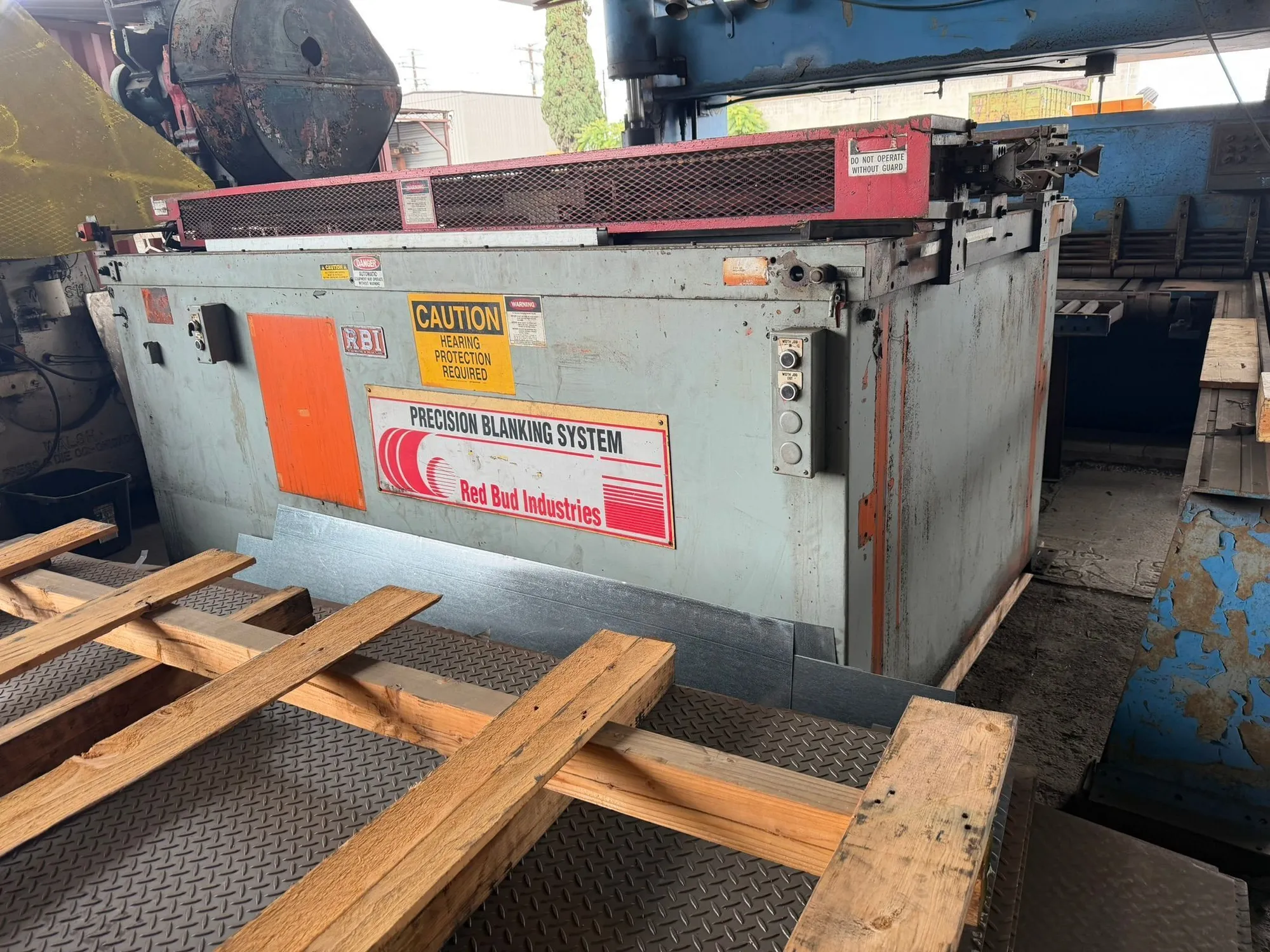

USED RED BUD FMBD-9-48-96
Overview
Description
Red Bud FMBD-9-48-96 Heavy-Duty Hydraulic Loop-Design Shear and Grip-Feeding System (1995)
Specifications
Red Bud FMBD-9-48-96 Heavy-Duty Hydraulic Loop-Design Shear and Grip-Feeding System (1995)
Technical Specifications
Machine Type: Hydraulic Grip Feeder / Slide-Type Feeder.
Maximum Material Width: 48 inches (approx. 1219 mm).
Standard Thickness Capacity: Mild steel and similar metals from 0.015" up to 0.135"
depending on the specific line configuration (often paired with a loop design system).
Stroke Length: 96 inches.
Indexing Capability: Multi-stroke / double-indexing capacity (allows the machine to grip and stroke multiple times sequentially to feed material out significantly past the 96" base limit, reaching 168"+ lengths).
Drive Mechanism: Hydraulic motor driven with heavy-duty gripping jaws.
Passline: Fixed passline height ranging from 43" to 50" above the floor, depending on mill housing specs
