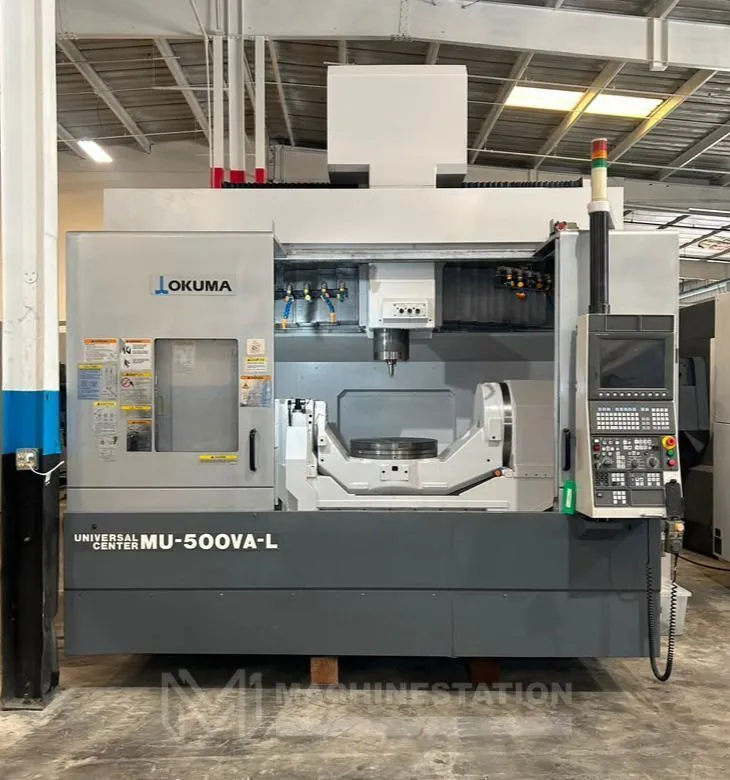

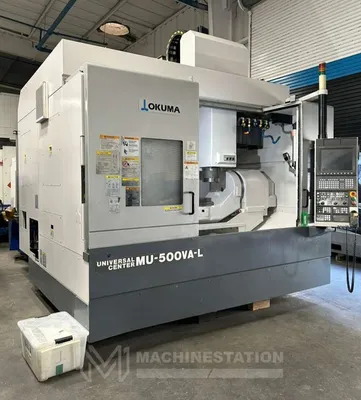

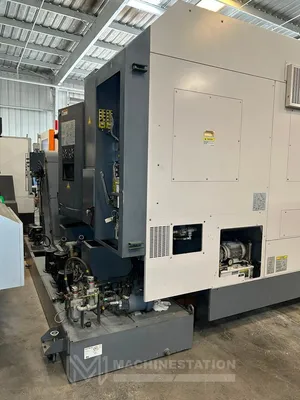

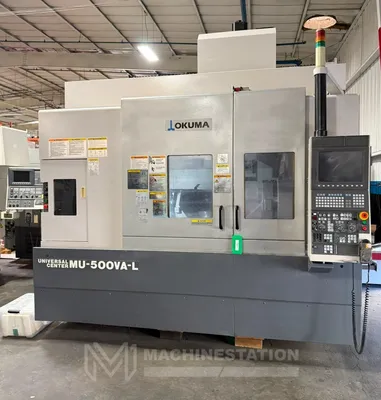

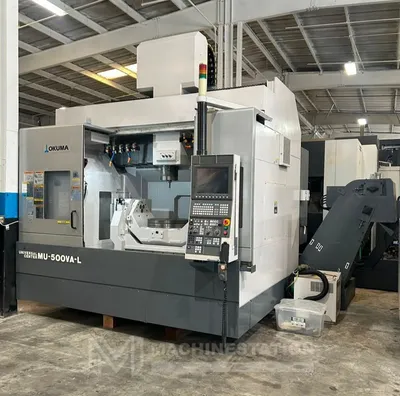

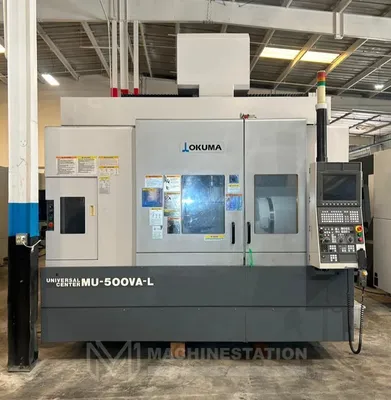

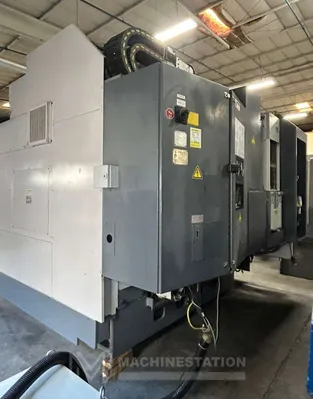

USED 2008 OKUMA MU-500VA-L

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

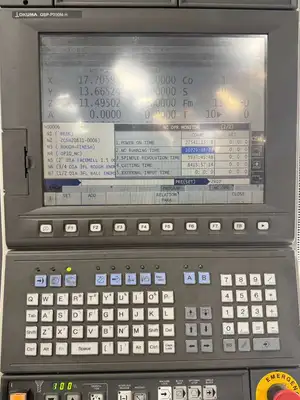

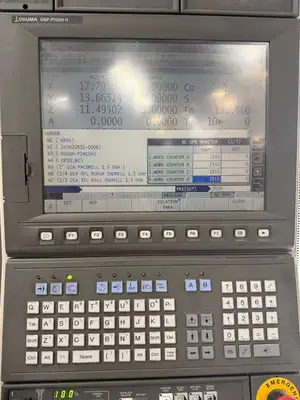

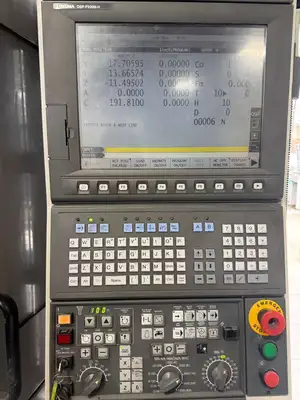

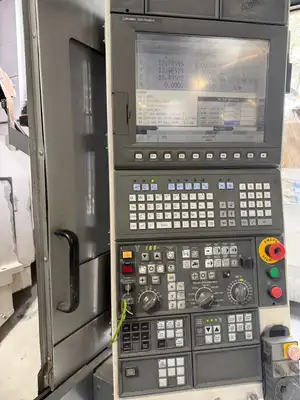

Okuma OSP-P200M-H Series CNC Control
8,415 Hours Cutting Time
Simultaneous 5 Axis Cutting
Spindle Orientation
Rigid Tapping
Coolant Tank

Travels:
X Axis: 49.21″
Y Axis: 25.98″
Z Axis: 21.26″

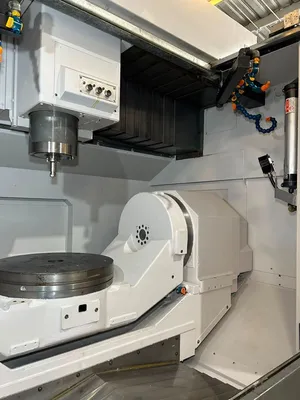

B Axis: +20˚ / -110˚ Table Tilt
C Axis: 360° Table Rotate
Min. Increment: 0.001°

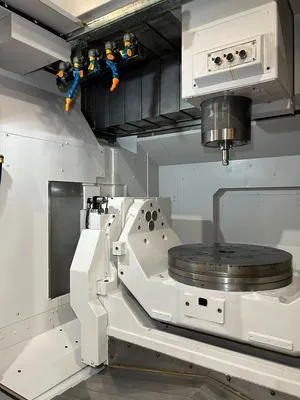

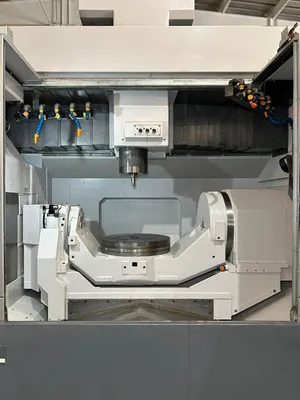

Table:
Table Diameter: 19.69″
Max Workpiece Size: ø27.56″ × H19.69″
Max Weight On Table: 1,100 lbs
Turning Spindle Speed: 1,000 RPM

Spindle:

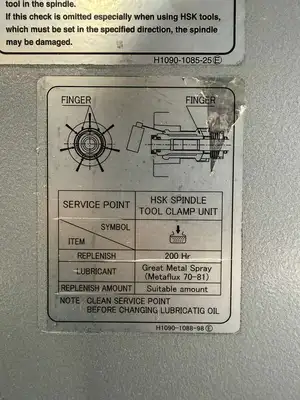

Taper Size: HSK-A63
Speed Range: 15,000 RPM
Spindle Power: 30 HP

Feed Rates:
Rapid X, Y, Z Axis: 1,969 IPM
Cutting Feed Rate: 1,969 IPM

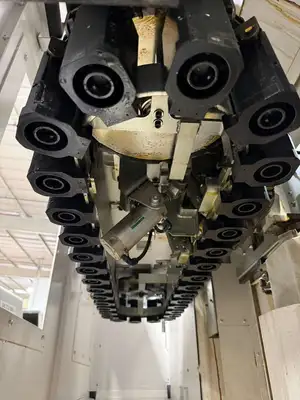

Tool Changer:
Capacity: 32 Tools
Taper: HSK-A63
Max Tool Size: 3.54″ x 15.75″
Max Tool Weight: 18 lbs

General:

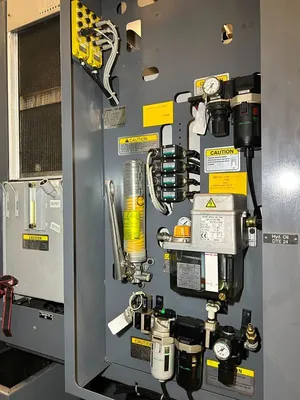

Air Required: 80 PSI, 4 SCFM

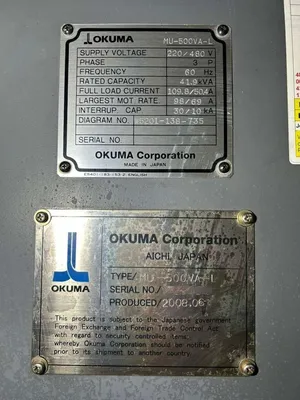

Power: 41.9 kVA / 220/480V / 3-Phase
Overall Dimensions: 157″ x 108″ x 135″ High Approx.
Weight: 33,880 lbs Approx.
