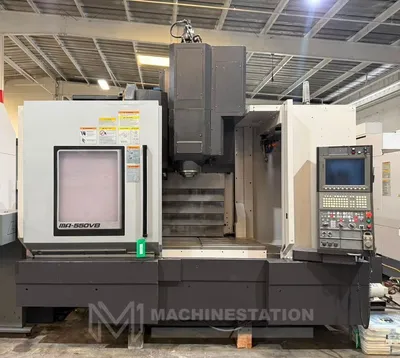

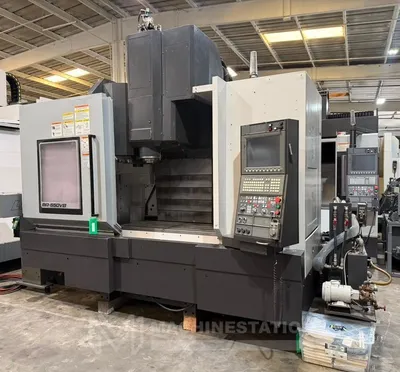

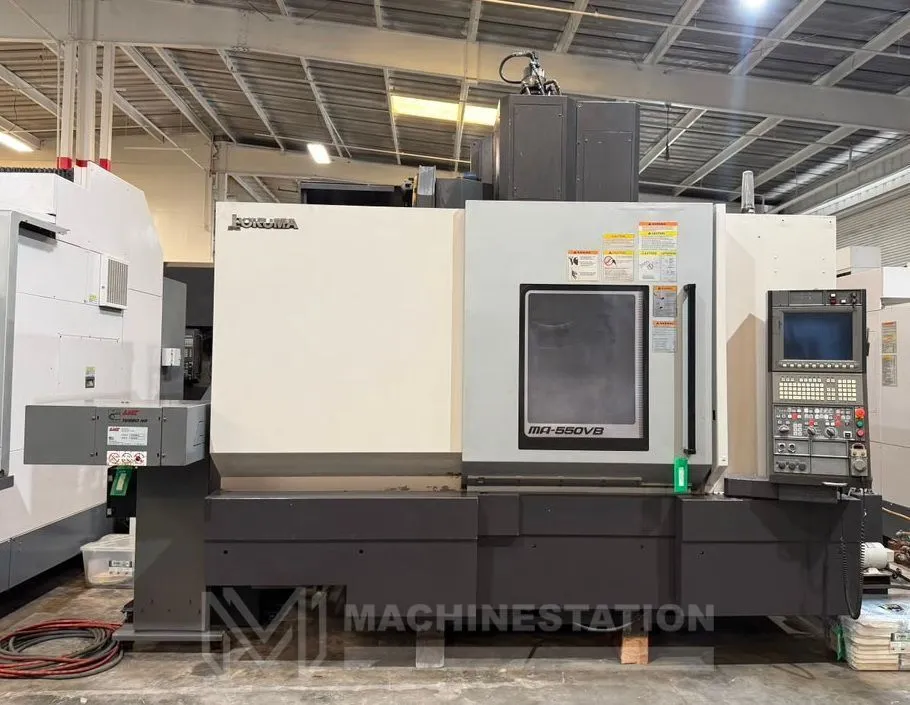

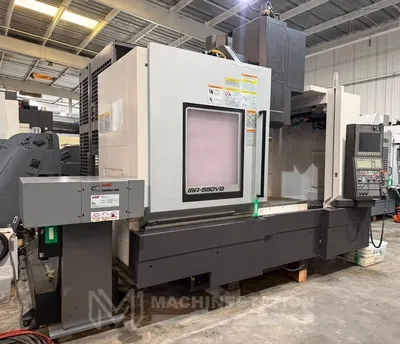

USED 2014 OKUMA MA-550VB

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Features:

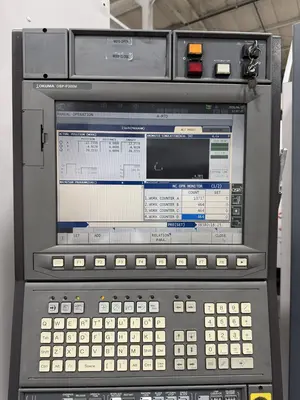

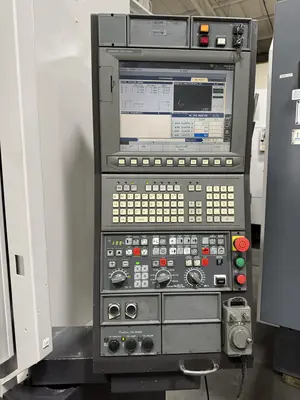

Okuma OSP-P300M CNC Control
USB Ports
Rigid Tapping

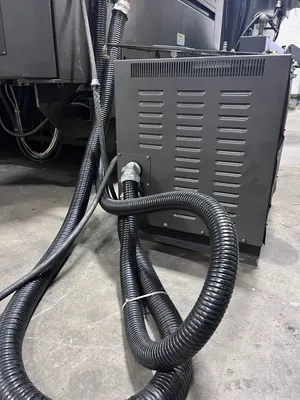

Coolant Tank

Travels:
X-Axis: 51.18″
Y-Axis: 22.04″
Z-Axis: 22.04″
X, Y Axis Rapid Traverse rates: 1575 IPM
Z Axis Rapid Traverse rates: 1181 IPM
Cutting Feedrate: 1181 IPM
Spindle Nose to Table (Min.- Max.): 7.87″ – 29.92″

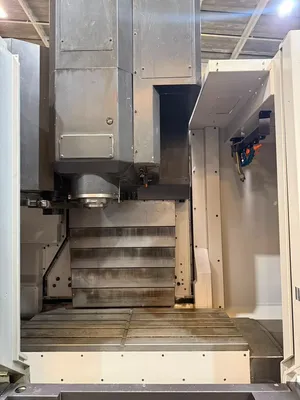

Table:
Length: 51.18″
Width: 22.04″
T-Slot no. & Width: 5 X 0.7″
Max Weight on Table: 2204 lbs

Spindle:
Spindle Type: Gear Head
Taper Size: CAT-50 Big Plus
Speed Range: 6,000 RPM
Spindle Power: 30 HP

Automatic Tool Changer:
Capacity: 32 Station Side Mounted
Max Tool Weight: 44 lbs
Max Tool Length: 15.74″
Max Tool Diameter: 5.31″

General:
Air Required: 90 psi, 4 scfm

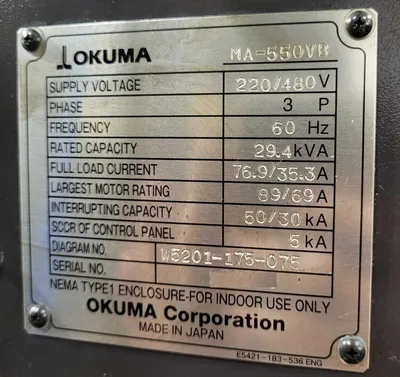

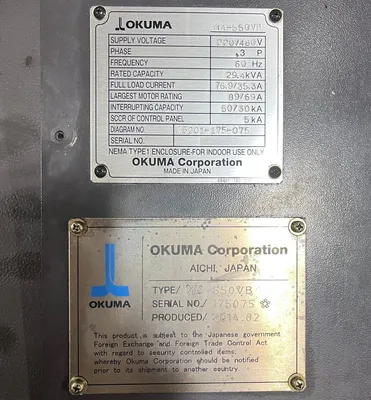

Power: 440v/220v / 29.4kva / 3-Phase
Overall Dimensions: 126″ x 112″ x 114″ High
Weight: 29,960 lbs. Approx.
