USED 2007 SNK IKEGAI NB130 PE3.5
Overview
Description

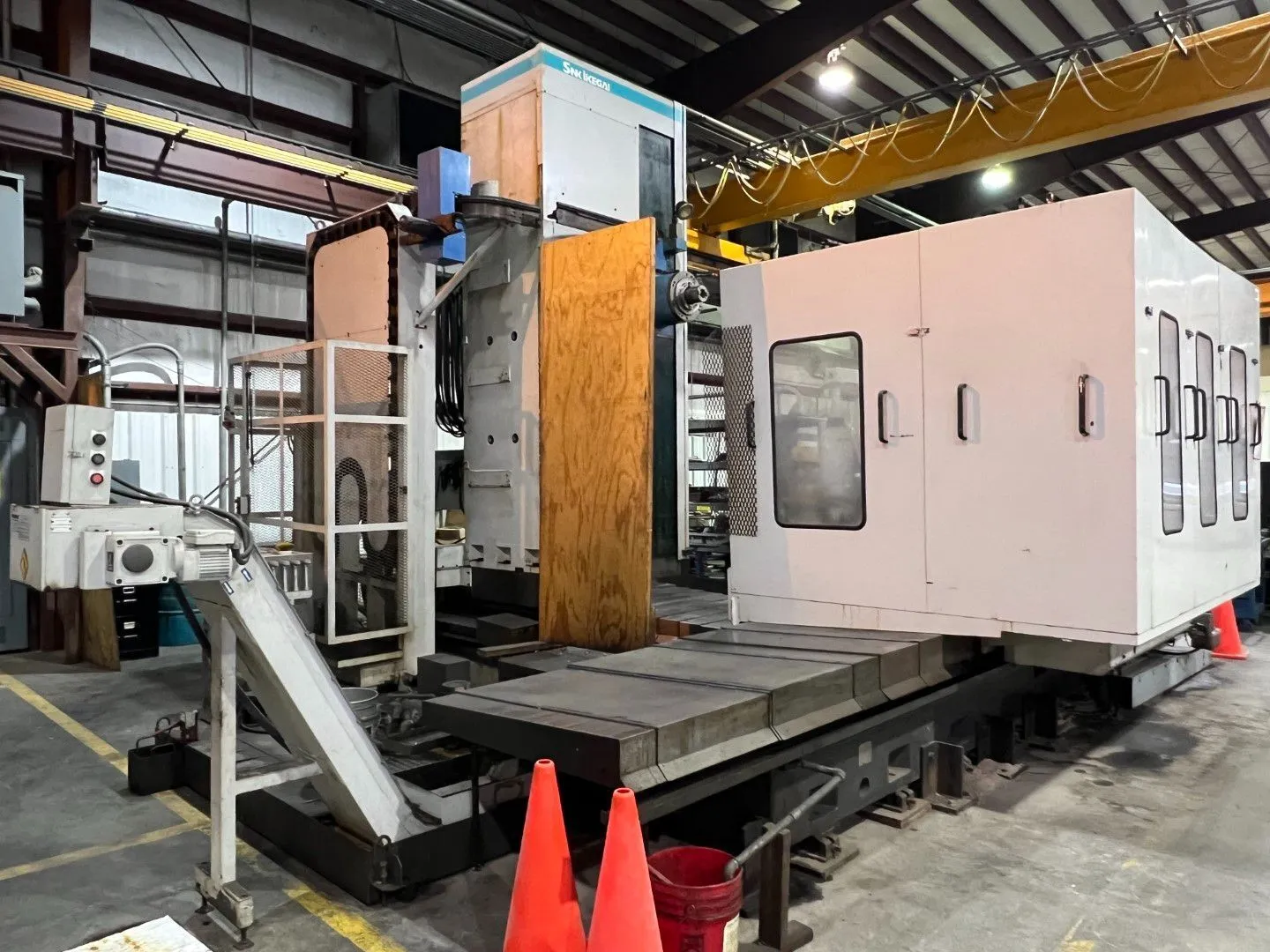

2007 SNK Ikegai NB130 PE3.5 CNC Horizontal Boring Mill. Machine is currently running and can be inspected under power as needed. Machine comes with many options including a chip conveyor!
Specifications
| Spindle Size | 5.125" | 130.17 mm |
|---|---|---|
| X-Horiz Tvl of Col | 137.8" | 3,500.1 mm |
| Y-Vert Tvl of Head | 98.4" | 2,499.4 mm |
| Power | 35 hp | 26.1 kW |
| RPM | 2,500 RPM | 2,500 RPM |
| Table-W | 63 mm | 2.4803" |
| Table-L | 70 mm | 2.7559" |
| Z-Spdl Tvl | 63" | 1,600.2 mm |
| Control | CNC (Fanuc 18IMB) | CNC (Fanuc 18IMB) |
Equipped With
The model NB-130PE3.5 planer type, CNC horizontal boring and milling machine is among the Ikegai products being demonstrated by Mitsui Machine Technology
The model NB-130PE3.5 planer type, CNC horizontal boring and milling machine is among the Ikegai products being demonstrated by Mitsui Machine Technology. The heavy-duty machine is especially suited for large, complex workpieces where a high degree of accuracy is required.
Among the machine's features are a 63-in. x 86-in. rotary table with 22,000-lbs. workpiece capacity. Standard control is a Fanuc 18--MB CNC for 5-axis machining with 137-in. X-Axis, 98-in. Y-Axis, 63-in. Z-Axis, 27 1/2-in. W-Axis (5 1/8-in. bar) and a contouring B-Axis using a 90° shot pin with 0.001° hydraulic clamping. A three-range, 35-hp milling spindle motor delivers up to 2,793 ft.-lbs. torque at speeds up to 2,500 rpm.
Ikegai has a 110 year history of manufacturing high quality, heavy duty machines using a traditional rigid box construction and the latest technological advances.
