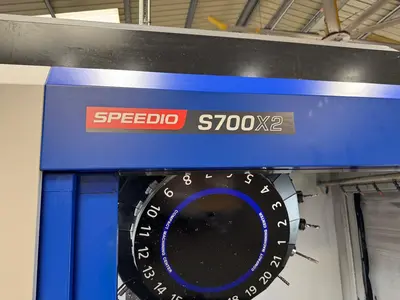

USED 2020 BROTHER SPEEDIO S700X2
Overview
Description

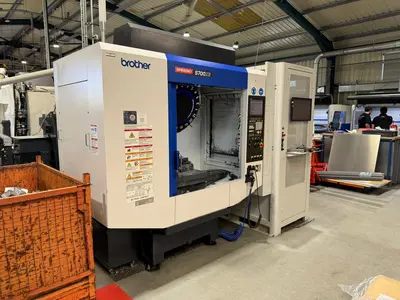

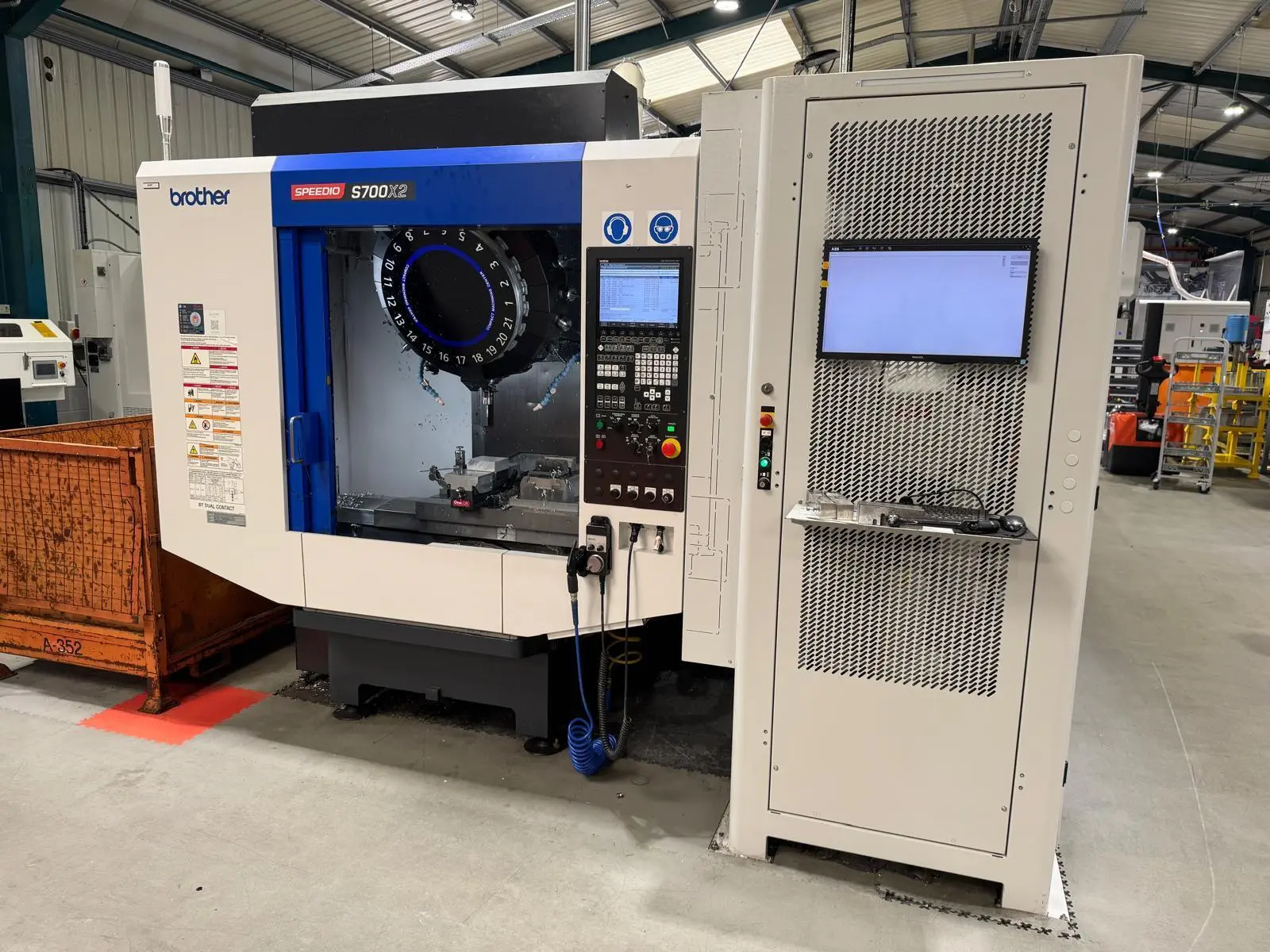

2020 Brother SPEEDIO S700X2 CNC vertical machining centre with ABB FEEDIO robotic loading/unloading automation cell. Fitted with Brother CNC-C00 control, high-speed 16,000 rpm BBT30 face and taper spindle, 21-station automatic toolchanger, 700 x 400 x 300 mm travels and 800 x 400 mm table.
The machine is also equipped with a NOP 35 bar high pressure modular coolant system, FSE 50 micron drum filtration conveyor, Blum spindle and tooling probes, and ABB robotic loading/unloading system. A compact, high-speed automated machining cell ideal for repeat production, reduced operator attendance, improved process control and increased spindle utilisation.
Specifications
| X | 27.56" | 700.02 mm |
|---|---|---|
| Y | 15.75" | 400.05 mm |
| Z | 11.81" | 299.97 mm |
| Power | 11.8 hp | 8.8 kW |
| RPM | 16,000 RPM | 16,000 RPM |
| # ATC | 21 | 21 |
| Taper | BT30 | BT30 |
| Control | CNC (Brother CNC-C00) | CNC (Brother CNC-C00) |
| Dimensions | 80.71 x 87.52 | 80.71 x 87.52 |
| Weight | 5291.10 | 5291.10 |
2020 Brother SPEEDIO S700X2 CNC Vertical Machining Centre with ABB FEEDIO Robot Automation Cell
Machine Details

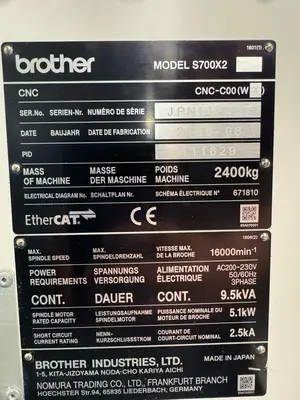

Make: Brother
Model: SPEEDIO S700X2
Year: 2020
Type: CNC Vertical Machining Centre

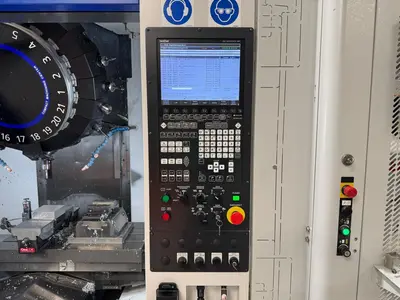

Control: Brother CNC-C00

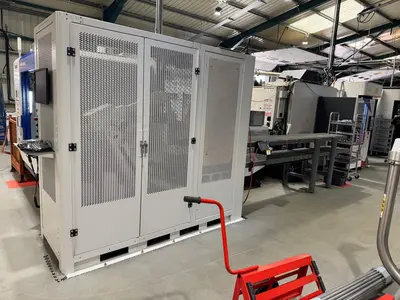

Automation: ABB FEEDIO robotic loading/unloading cell
Capacity
X-Axis Travel: 700 mm
Y-Axis Travel: 400 mm
Z-Axis Travel: 300 mm

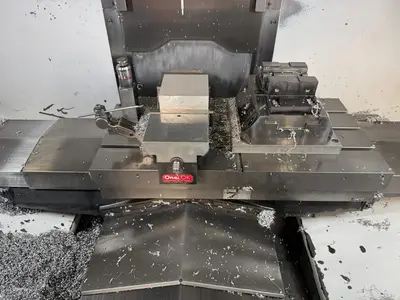

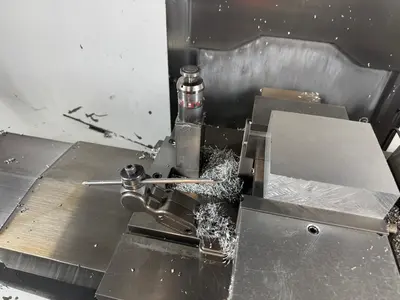

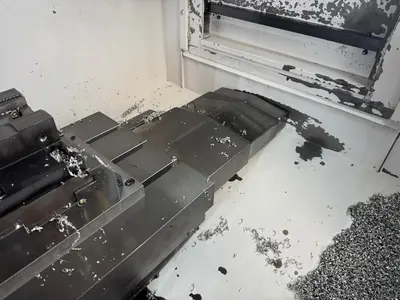

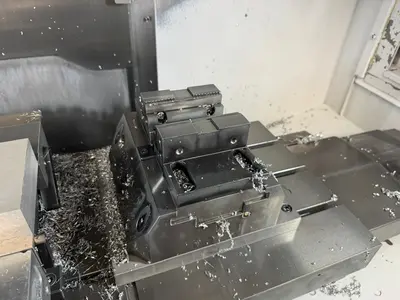

Table Size: 800 x 400 mm
Maximum Table Load: Approx. 250 kg
Spindle
Spindle Type: BBT30 face and taper spindle
Maximum Spindle Speed: 16,000 rpm
Spindle Specification: High-speed BBT30 spindle suitable for precision machining and high-speed production applications
Tooling

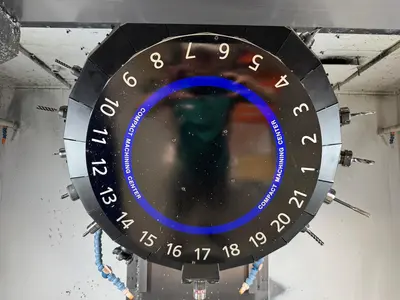

Automatic Toolchanger: 21 station
Tool Shank: BBT30
Maximum Tool Diameter: Approx. 110 mm
Maximum Tool Weight: Approx. 3 kg
Probing
Probing System: Blum spindle and tooling probes
Application: Tool measurement, tool breakage detection, workpiece setting and in-process checking
Coolant & Filtration

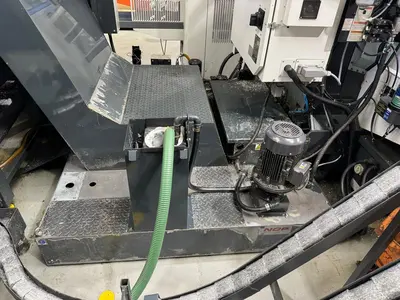

High Pressure Coolant System: NOP 35 bar high pressure modular coolant system

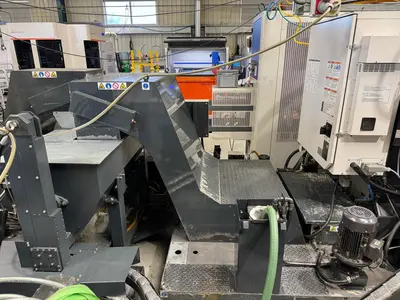

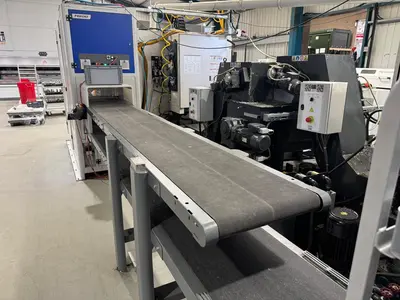

Filtration System: FSE 50 micron drum filtration conveyor
Chip Management: Conveyor and filtration system suitable for improved coolant cleanliness and continuous production use
Feeds & Speeds
Rapid Traverse X/Y/Z: 50 / 50 / 56 m/min
Cutting Feed Rate: Up to 30,000 mm/min
Tool Change Time: Approx. 0.7 seconds tool-to-tool
Chip-to-Chip Time: Approx. 1.3 seconds

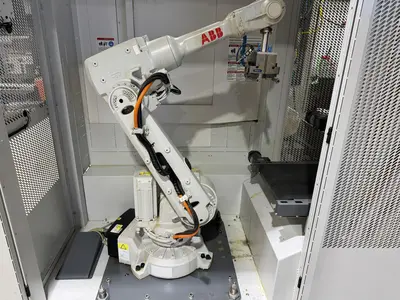

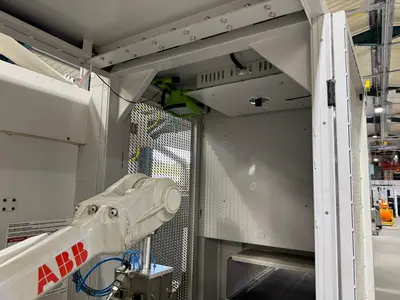

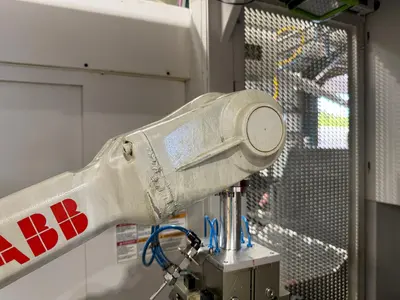

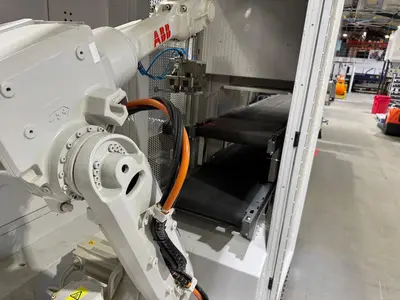

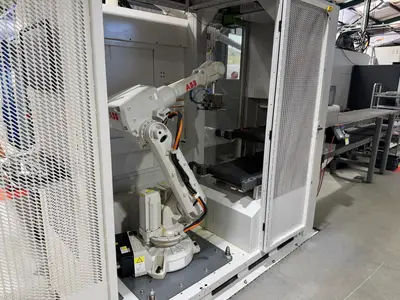

Robot Automation

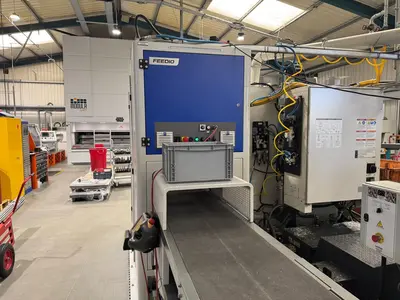

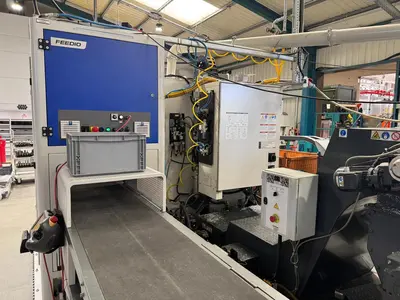

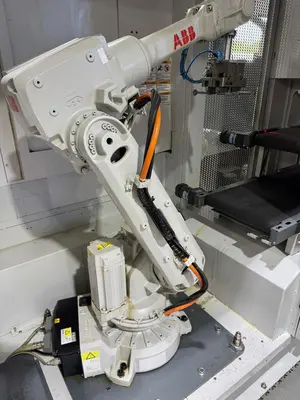

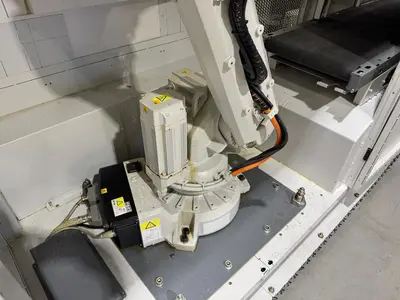

Automation System: ABB FEEDIO
Robot Manufacturer: ABB
Robot Type: 6-axis industrial robot
Robot Model: TBC

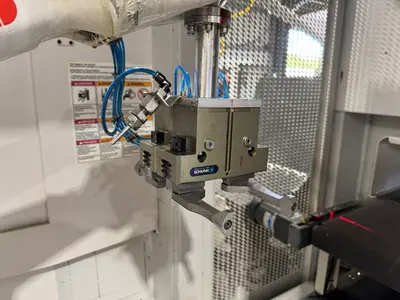

Application: Automatic component loading and unloading
Suitable For: Repeat production, reduced operator attendance and unmanned machining cycles
Machine Dimensions & Weight
Machine Weight: Approx. 2,400 kg, excluding automation cell
Machine Footprint: Approx. 2,050 x 2,223 mm, excluding automation cell
