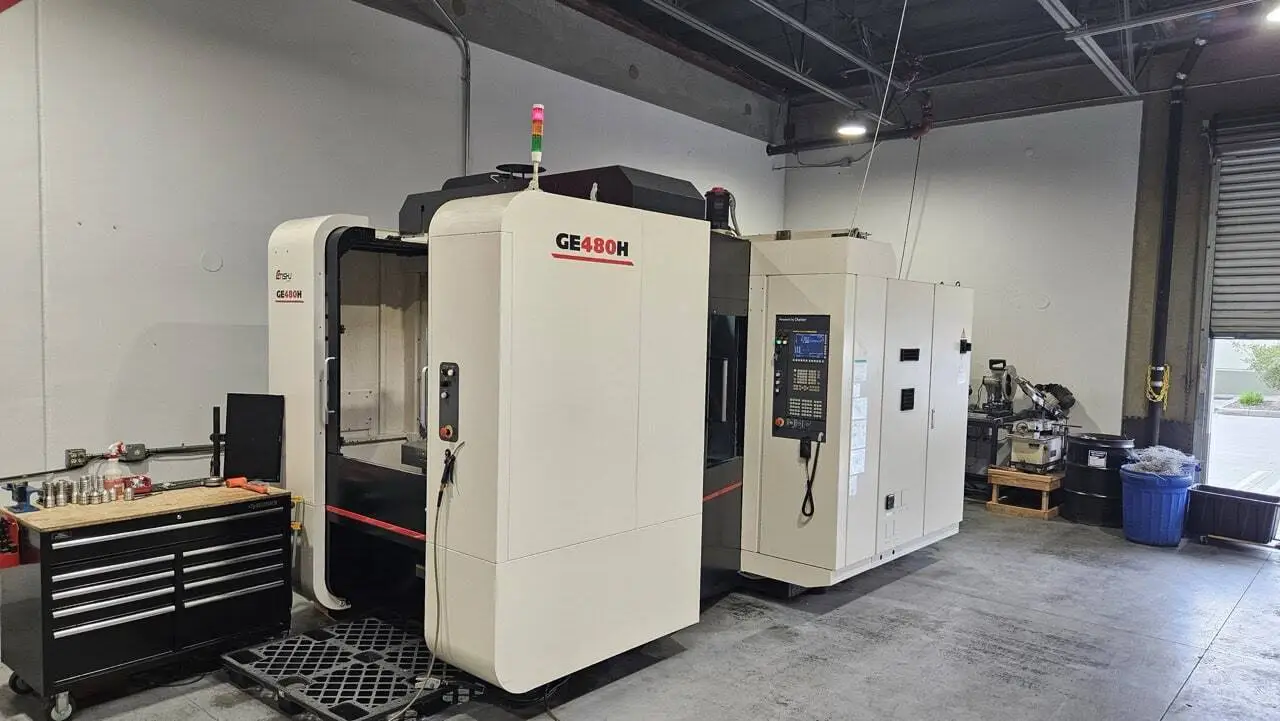

USED 2019 ENSHU GE480H
Overview
Description
Used Horizontal Machining Center, featuring Fanuc 31i-Model B Control, full 4th Axis, Renishaw Probe, and through spindle coolant. With 19.7" pallet size and 15,000 RPM spindle.
Specifications
| X | 31.5" | 800.1 mm |
|---|---|---|
| Y | 31.5" | 800.1 mm |
| Z | 31.5" | 800.1 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 60 | 60 |
| Taper | CAT 40 | CAT 40 |
| Pallet-W | 500 mm | 19.685" |
| Pallet-L | 500 mm | 19.685" |
| # Axis | 4 | 4 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 232″ x 110″ x 116.3″ | 232″ x 110″ x 116.3″ |
Pallet Size: 19.7″
Pallet Capacity: 1,100 LBS
X-Axis Travel: 31.5″
Y-Axis Travel: 31.5″
Z-Axis Travel: 31.5″
Spindle Taper: BIG-PLUS CAT 40
Spindle Power: 50 HP
Spindle Speed: 15,000 RPM
Rapid Traverse (X/Y/Z): 3,543 IPM
ATC: 60
Machine Dimensions: 232″ x 110″ x 116.3″
Equipped With
Fanuc 31i-Model B Control
Full 4th Axis
Renishaw Probe
Through Spindle Coolant
Flood Coolant
2 Pallets
