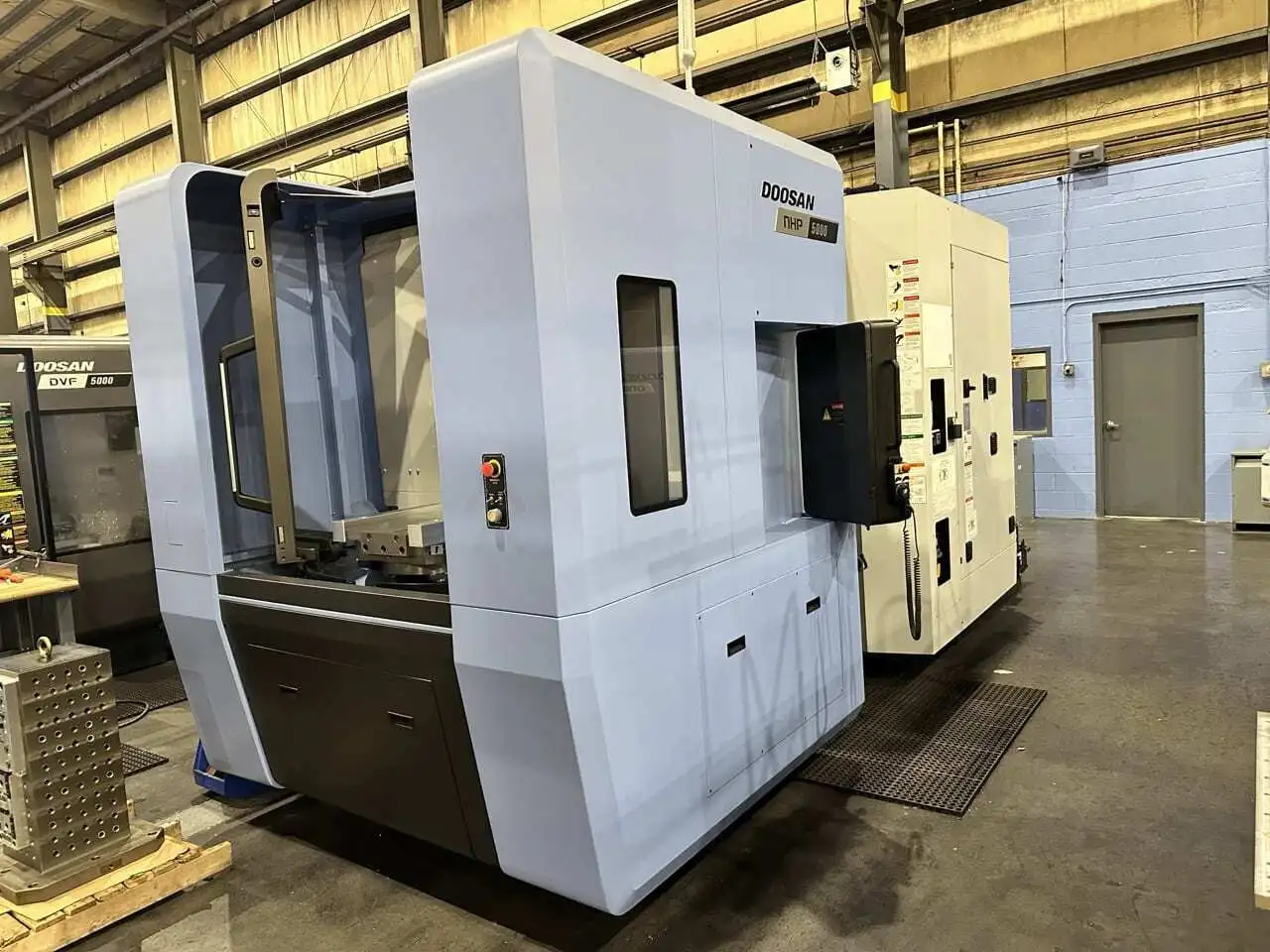

Used Horizontal Machining Center. Features X/Y/Z: 28.7″/28.7″/34.6″, 40 hp, 15,000 RPM, CAT 40 BP taper, 120 ATC, dual 19.7" pallets, Fanuc 31iMB CNC, Renishaw Probing, high-pressure coolant, chip conveyor, and 2 tombstones.
| X | 28.7" | 728.98 mm |
| Y | 28.7" | 728.98 mm |
| Z | 34.6" | 878.84 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 120 | 120 |
| Taper | CAT 40 | CAT 40 |
| # Axis | 4 | 4 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 214.6″ x 105.5″ x 113.4″ | 214.6″ x 105.5″ x 113.4″ |
| Weight | 25,353 lbs | 25,353 lbs |
X-Axis: 28.7″
Y-Axis: 28.7″
Z-Axis: 34.6″
Power: 40 hp
RPM: 15,000 RPM
Taper: CAT 40 BP
# ATC: 120
Pallet-W: 19.7″
Pallet-L: 19.7″
# of Pallets: 2
Pallet Indexing: Full 4th
Approx. Dimensions: 214.6″ x 105.5″ x 113.4″
Approx. Weight: 25,353 lbs
Fanuc 31iMB CNC Control
Full 4th Axis
Renishaw Probing System
Renishaw Tool Setter
High Pressure Through Spindle Coolant (230 PSI)
LNS Turbo MH250 Chip Conveyor
Comes with 2 Tombstones pictured
