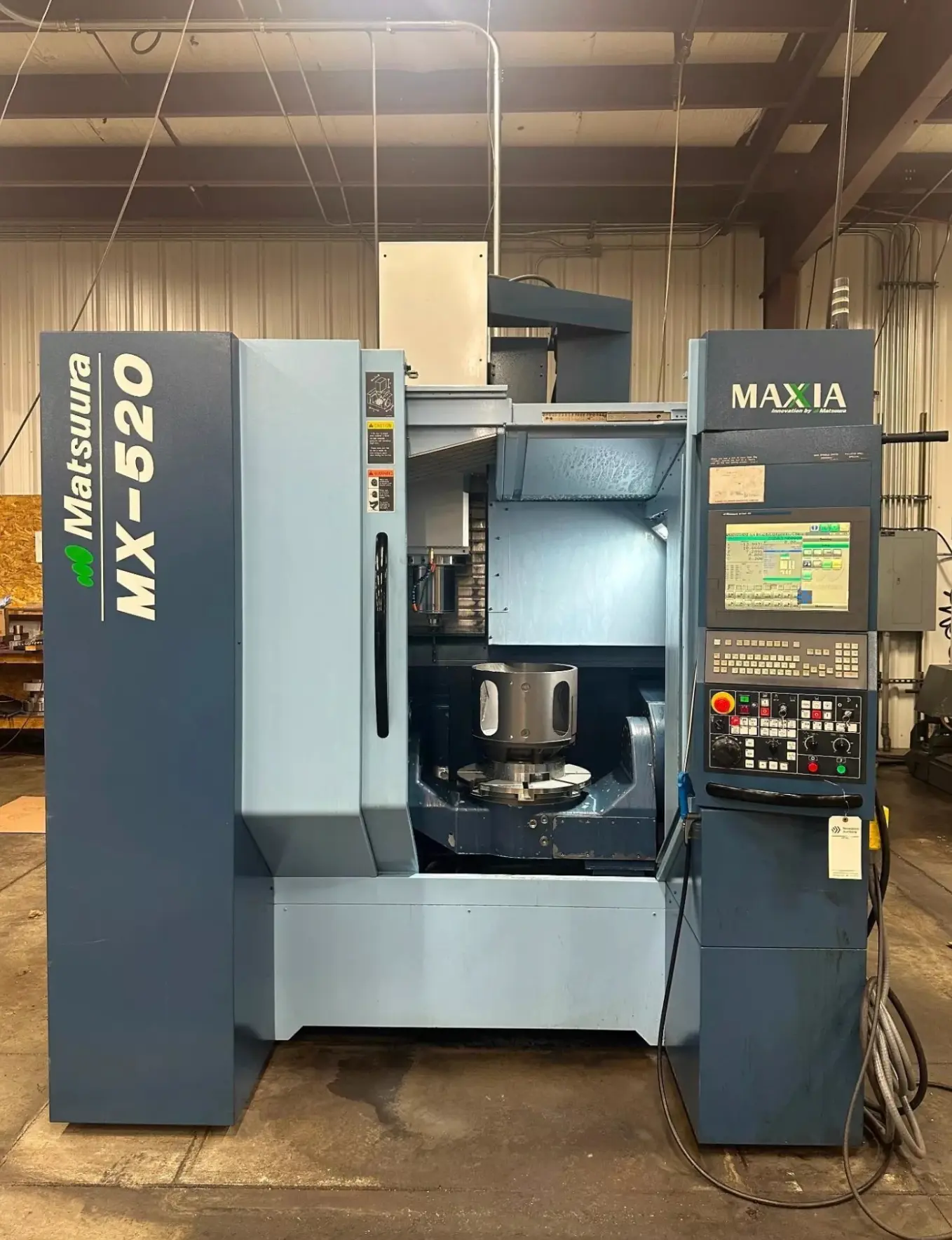

USED 2017 MATSUURA MX-520
Overview
Used 5-axis vertical machining center offers 12,000 RPM speed, CAT40 taper, and 15 HP power. Features a 19.68" work surface, handling up to 440 lbs with precision travels and feedrates. Max work size Ø 20.47" x H 13.77".
Specs
Speed: 12,000 RPM
Taper: CAT40
Power: 15 HP
Working Surface: 19.68 Diameter
Load Capacity: 440 Lbs.
Max Work Size: Ø 520 mm x H 350 mm (Ø 20.47″ x H 13.77″)
X-Axis Travel: 630 mm (24.8″)
Y-Axis Travel: 560 mm (22.04″)
Z-Axis Travel: 510 mm (20.07″)
A-Axis Travel: -125° TO +10°
C-Axis Travel: 360°
Feedrate: (X/Y/Z) = 1575 IPM
Feedrate: A = 17 RPM, C = 33 RPM
Dimensions: (WxDxH) 136.2″ x 235.5″ x 116.14″
Weight: 19,500 Lbs.
