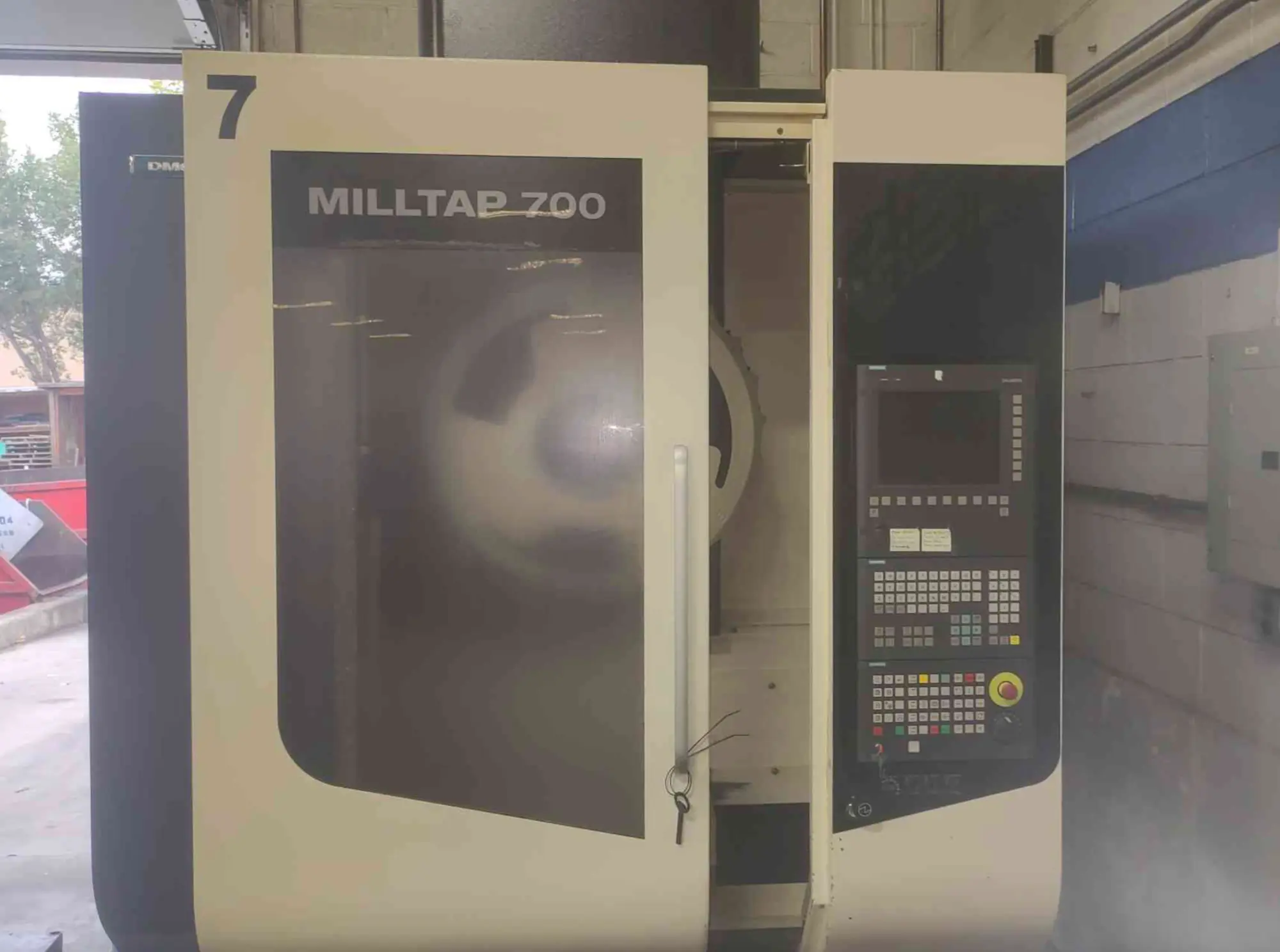

Drilling & Tapping Center, used, equipped with Siemens 840 D Control, 27.6" X-axis travel, 24,000 RPM spindle, and 25-tool ATC. Features include Sinumerik Cycles, tool probe, and indexer.
| X | 700 mm | 27.559" |
| Y | 420 mm | 16.535" |
| Z | 380 mm | 14.961" |
| Power | 15 hp | 11.2 kW |
| RPM | 24,000 RPM | 24,000 RPM |
| # ATC | 25 | 25 |
| Taper | BT-30 | BT-30 |
| Control | CNC (Siemens) | CNC (Siemens) |
X-Axis Travel: 27.6″
Y-Axis Travel: 16.5″
Z-Axis Travel: 15″
Table Size: 33.1″ X 16.5″
Max Table Load: 882 Lbs
Spindle Motor: 15 Hp
Spindle Speed: 24,000 Rpm
Spindle Taper: Bt-30
Rapid Traverse Rate (x/y/z): 2,362 Ipm
Auto Tool Changer: 25 Tool Atc
Siemens 840 D Control
10.4″ Tft Screen
Digital Parts Counter & Timer
Program guide via Sinumerik Cycles & G-Code
4 Th & 5 Th Axis Adaptable
Tool Probe
Indexer
