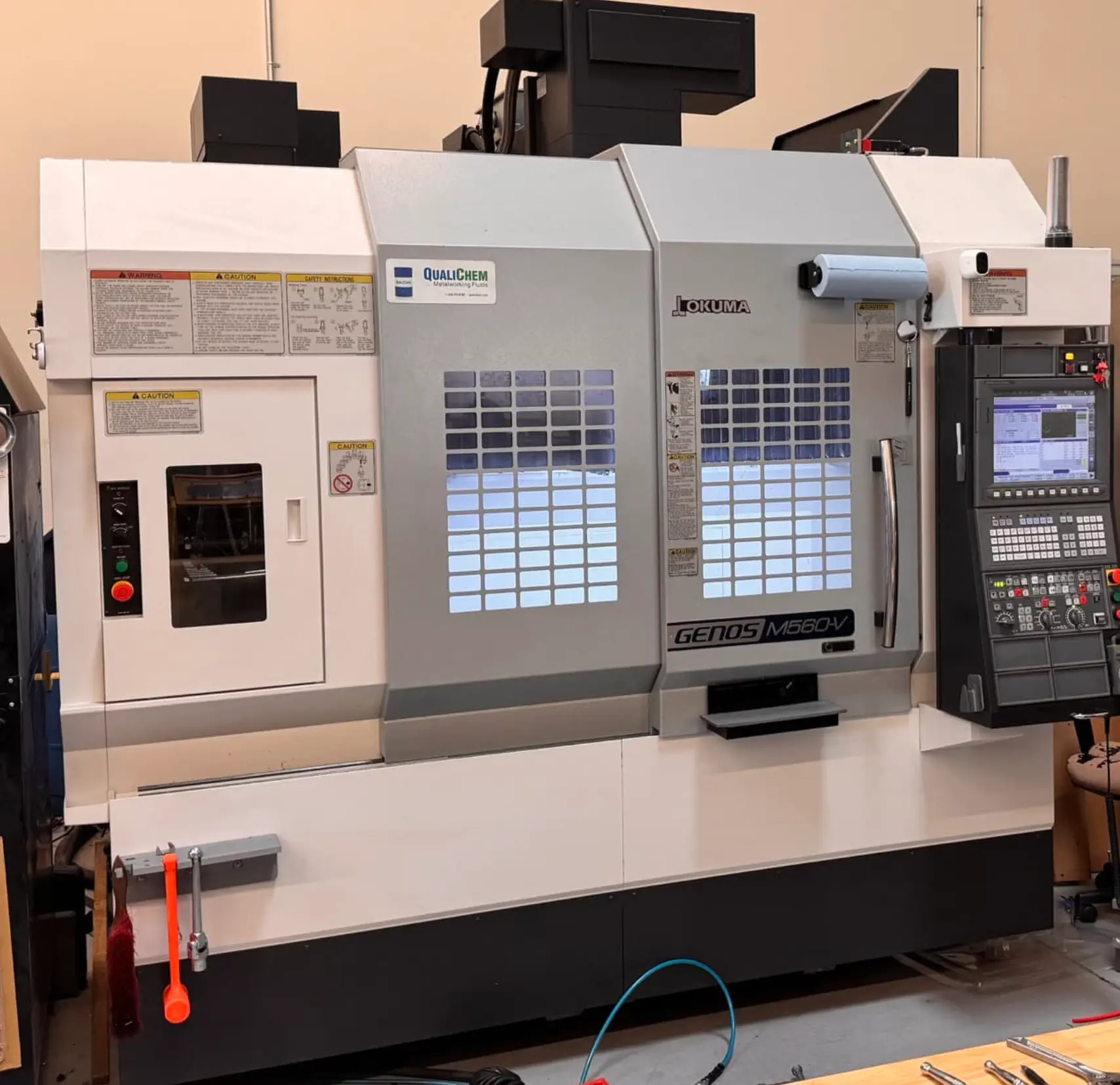

Used Vertical Machining Center for sale. Features include a 51.18" x 22.05" table, 41.34" x-axis travel, 15,000 RPM CAT 40 spindle with 30 HP, and a 32-tool capacity. Also equipped with OSP-P300MA and Renishaw OMP400.
| X | 1,050 mm | 41.339" |
| Y | 560 mm | 22.047" |
| Z | 460 mm | 18.11" |
| Power | 30 hp | 22.4 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 32 | 32 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 560 mm | 22.047" |
| Table-L | 1,300 mm | 51.181" |
| # Axis | 3 | 3 |
| Dimensions | 122″ L x 99″ W x 108″ H | 122″ L x 99″ W x 108″ H |
| Weight | 17,000 Lbs | 17,000 Lbs |
Table Size: 51.18″ x 22.05″
X Travel: 41.34″
Y Travel: 22.05″
Z Travel: 18.11″
Rapid X Rate: 1,575 IPM
Rapid Y Rate: 1,575 IPM
Rapid Z Rate: 1,262
Max Table Load: 1,980
Spindle Motor: 30 HP
Spindle Speeds: 15,000 RPM
Spindle Taper: CAT 40
Tool Capacity: 32
Approx. Shipping Weight: 17,000 Lbs.
Approx. Shipping Dimensions: 122″ L x 99″ W x 108″ H
OSP-P300MA Controller
Renishaw OMP400
TSC Ready
No Conveyor
