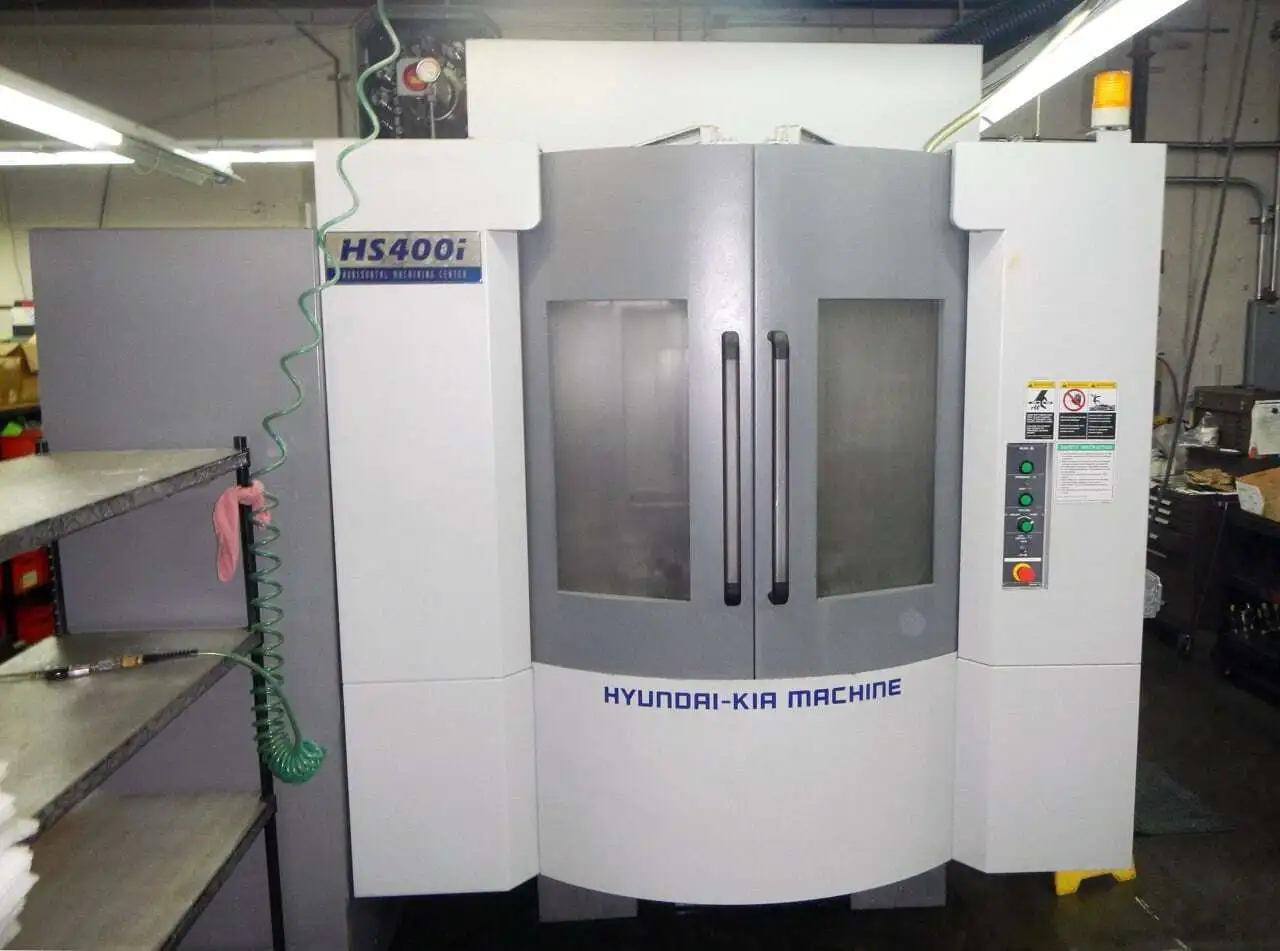

Used horizontal machining center with 15.75" pallets, 25.2" x 25.6" x 22" travels, 12,000 RPM spindle, and Fanuc 21i-MB control. Equipped with 60-position tool changer, chip conveyor, and spindle rebuilt in 2022.
| X | 25.2" | 640.08 mm |
| Y | 22" | 558.8 mm |
| Z | 25.6" | 650.24 mm |
| Power | 33.5 hp | 25 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 60 | 60 |
| Taper | CAT 40 | CAT 40 |
| Pallet-W | 15.75" | 400.05 mm |
| Pallet-L | 15.75" | 400.05 mm |
| # Axis | 4 | 4 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
Pallet Size: 15.75″ x 15.75″ (400 mm)
X-Axis Travel: 25.2″
Y-Axis Travel: 22″
Z-Axis Travel: 25.6″
B-Axis: 1° Indexing
Spindle Speed: 12,000 RPM
Spindle Power: 33.5 HP
Spindle Taper: CAT 40
Automatic Tool Changer: 60 Positions
Automatic Pallet Changer: 2 Positions
Rapid Traverse (X/Y/Z): 1,969 in/min
Max Workpiece Diameter: 25.6″
Max Workpiece Height: 25.6″
Max Pallet Load: 1,102 lbs
Fanuc Series 21i-MB CNC Control
Through Spindle Coolant
Rigid Tapping
Custom Macro B & Variables (200 each)
33.5 HP Direct Drive Spindle
60 Position Tool Changer
Extended Memory
Chip Conveyor
2x Pallets
Spindle rebuild in 2022
