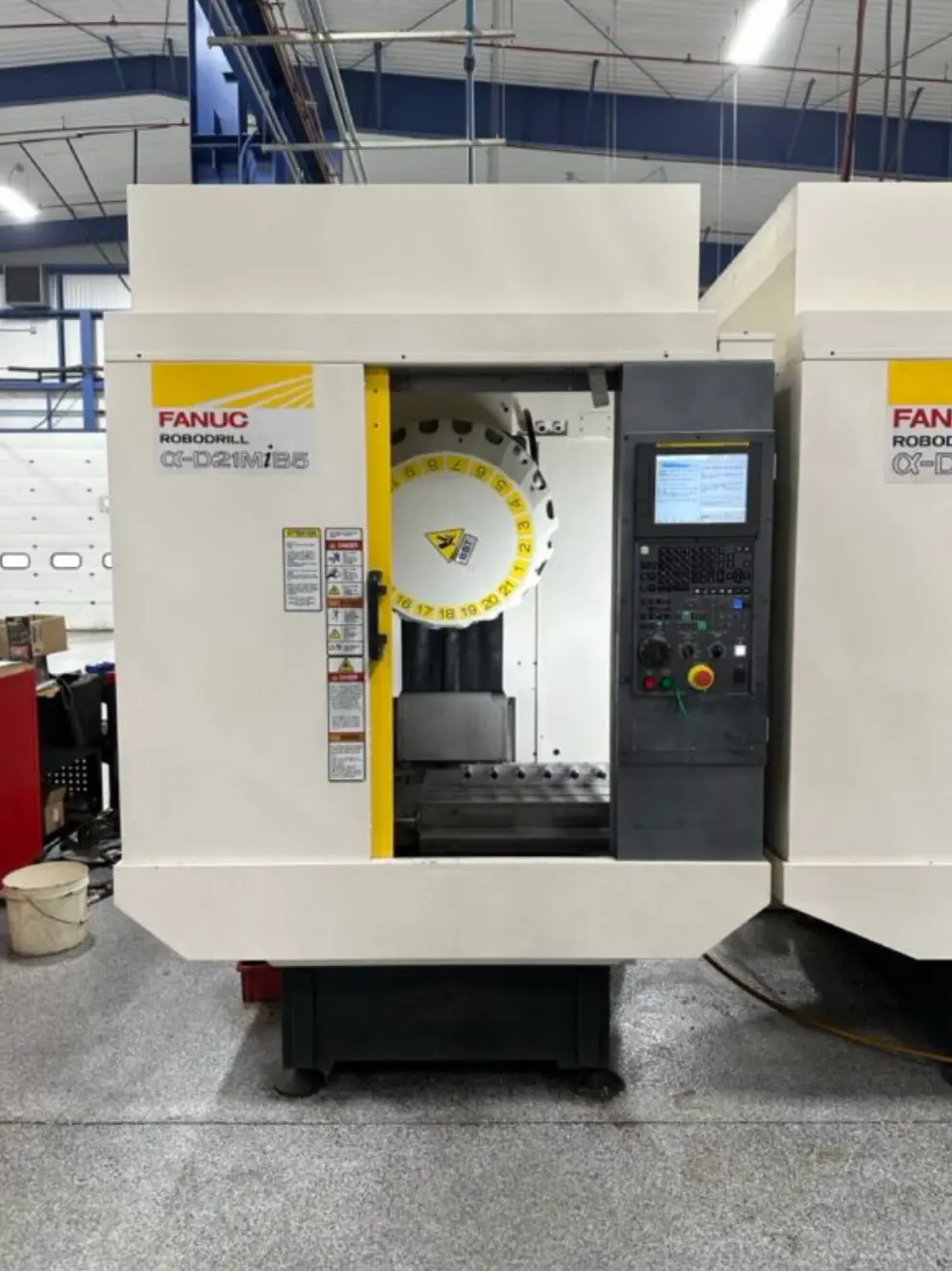

Used Vertical machining center with X/Y/Z travel of 19.68"/15.74"/12.99", spindle speed of 10,000 RPM, and 21 ATC. Features 15 HP, BT-30 taper, and a rapid rate of over 2,100 IPM.
| X | 19.68" | 499.87 mm |
| Y | 15.74" | 399.8 mm |
| Z | 12.99" | 329.95 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 21 | 21 |
| Taper | BT-30 | BT-30 |
| # Axis | 3 | 3 |
| Dimensions | 70″ x 80″ x 100″ | 70″ x 80″ x 100″ |
| Weight | 5,000 LBS | 5,000 LBS |
X Axis Travel: 19.68″
Y Axis Travel: 15.74″
Z Axis Travel: 12.99″
Rapid Rate X Axis: 2,126 IPM
Rapid Rate Y Axis: 2,125 IPM
Rapid Rate Z Axis: 2,125 IPM
Table Size: 25.59″ x 15.74″
Max Table Load: 661 LBS
Spindle Motor: 15 HP
Spindle Speed: 10,000 RPM
Spindle Taper: BT30 BIGPLUS CT
Tool Changer: 21 ATC
Dimensions: 70″ x 80″ x 100″
Weight: 5,000 LBS
