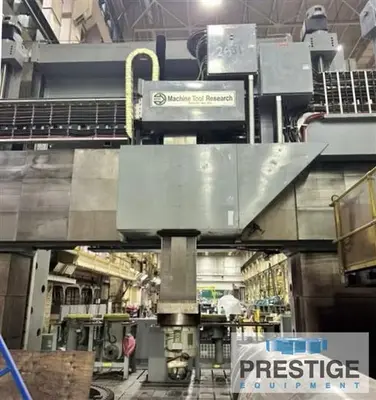

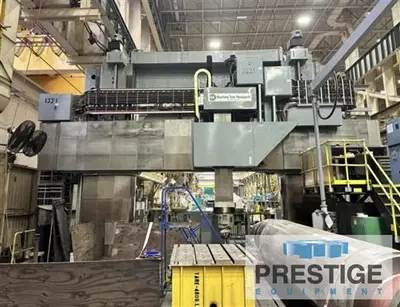

USED INGERSOLL CNC BRIDGE MILL

SPECIFICATION:
Table Travel, X-Axis: 684"
Head Travel, Y-Axis: 275"
Ram Stroke, Z-Axis: 60"
Rail Travel, W-Axis: 172"
Ram Rotation, C-Axis: .001 degrees
Distance Between Housings: 222"
Height Under Rail: 204"
Table Size: 672" x 206"
Table Capacity: 450,000 lbs
Spindle Speeds (Variable): 0-2,500 RPM
Vertical Milling Head: 134 HP

Equipped With:

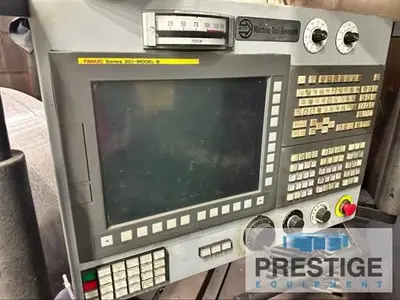

Fanuc 30i CNC Control
134 HP Milling Head
Right Angle Head Attachment, #50 Taper
Long Reach Straight Head Attachment, #60 Taper
Short Reach Straight Head Attachment, #50 Taper

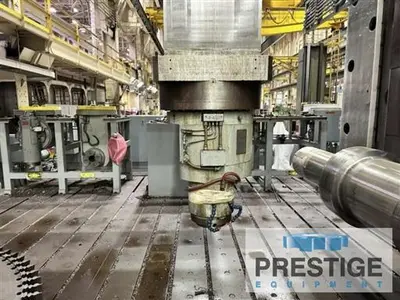

672" x 206" T-Slotted Table

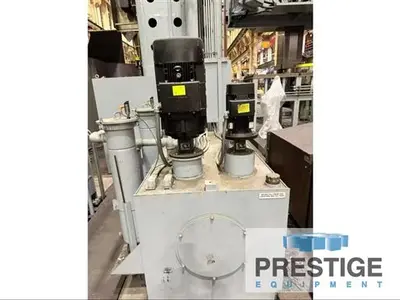

Through Spindle Coolant

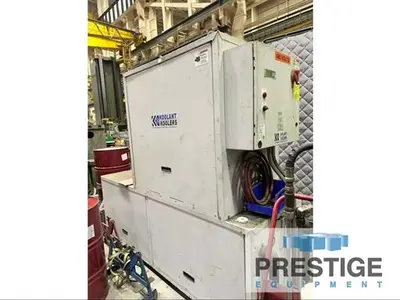

Koolant Koolers Chiller
Adjustable Rail
Chip Conveyor

Features:
Fanuc 30i CNC Control
134 HP Milling Head
Right Angle Head Attachment, #50 Taper
Long Reach Straight Head Attachment, #60 Taper
Short Reach Straight Head Attachment, #50 Taper
672" x 206" T-Slotted Table
Through Spindle Coolant
Koolant Koolers Chiller
Adjustable Rail
Chip Conveyor
