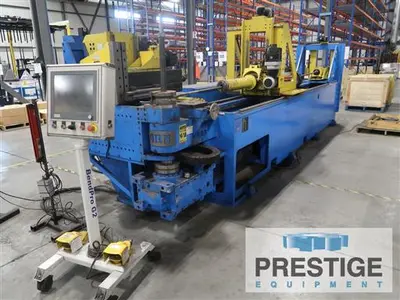

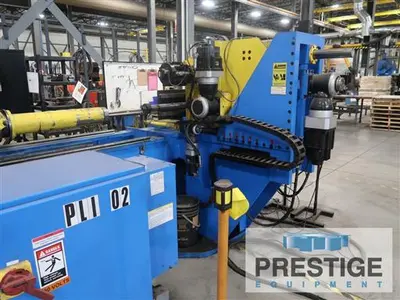

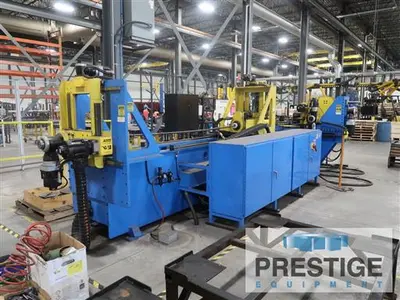

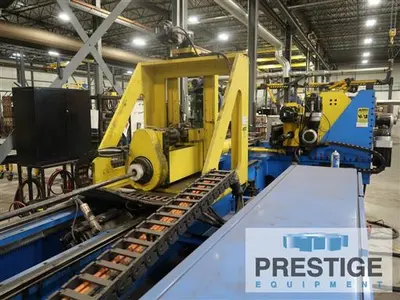

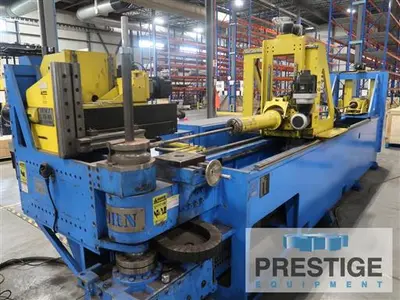

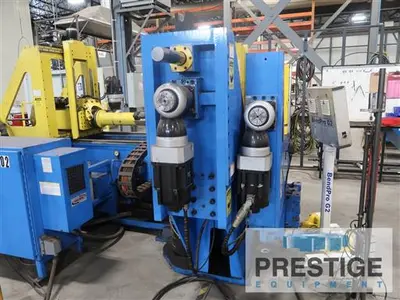

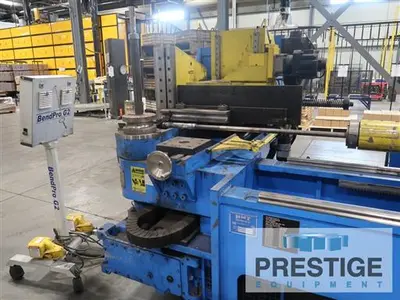

USED 2022 HORN 3.0ECNC-MS

BENDER CAPACITY (CLR @ 1.0 X D):
Bending Cap. Round Mild Steel (OD x WT): 3" x .188
Bending Cap. Round Non-Ferrous(OD x WT): 3" x .375
Bending Cap. Round Stainless (OD x WT): 3" x .095
Bending Cap. Square Mild Steel(OD x WT): 2" x .250
Bending Cap. Pipe/Mild Steel: 2" IPS Schedule 80
Bending Cap. Solid Bar/Mild Steel: 2"

BENDER SPECIFICATIONS:
Maximum Bending Radius: 12"
Maximum Bending Angle: 190 Degrees
Maximum Length over Mandrel: 120"
Working Height: 49.2"
Tooling Center Line Height: 2.75"
Bend Arm Speed: 160 RPM
Y-Axis Travel (Carraige Feed): 117"
Y-Axis Speed: 29 IPS
B-Axis Travel (Collet Rotation): 360 Degrees
B-Axis Speed: 600 Degrees/Sec
Z-Axis, Vertical Stack Shift Speed: 12"/Sec
X-Axis Horizontal Stack Shift Speed: 18"/Sec
Electric Service: 480 VAC, 3-Ph @ 125 Amps.
Machine Dimensions: 96" W x 252" L x 8' H
Machine Weight: 24,000 Lbs.

Equipped With:
BendPro G2v2 CNC Control
Left-Hand CCW Rotation
Multi-Stack Feature
Keyence Safety Laser floor scanner

Features:
BendPro G2v2 CNC Control
Left-Hand CCW Rotation
Multi-Stack Feature
