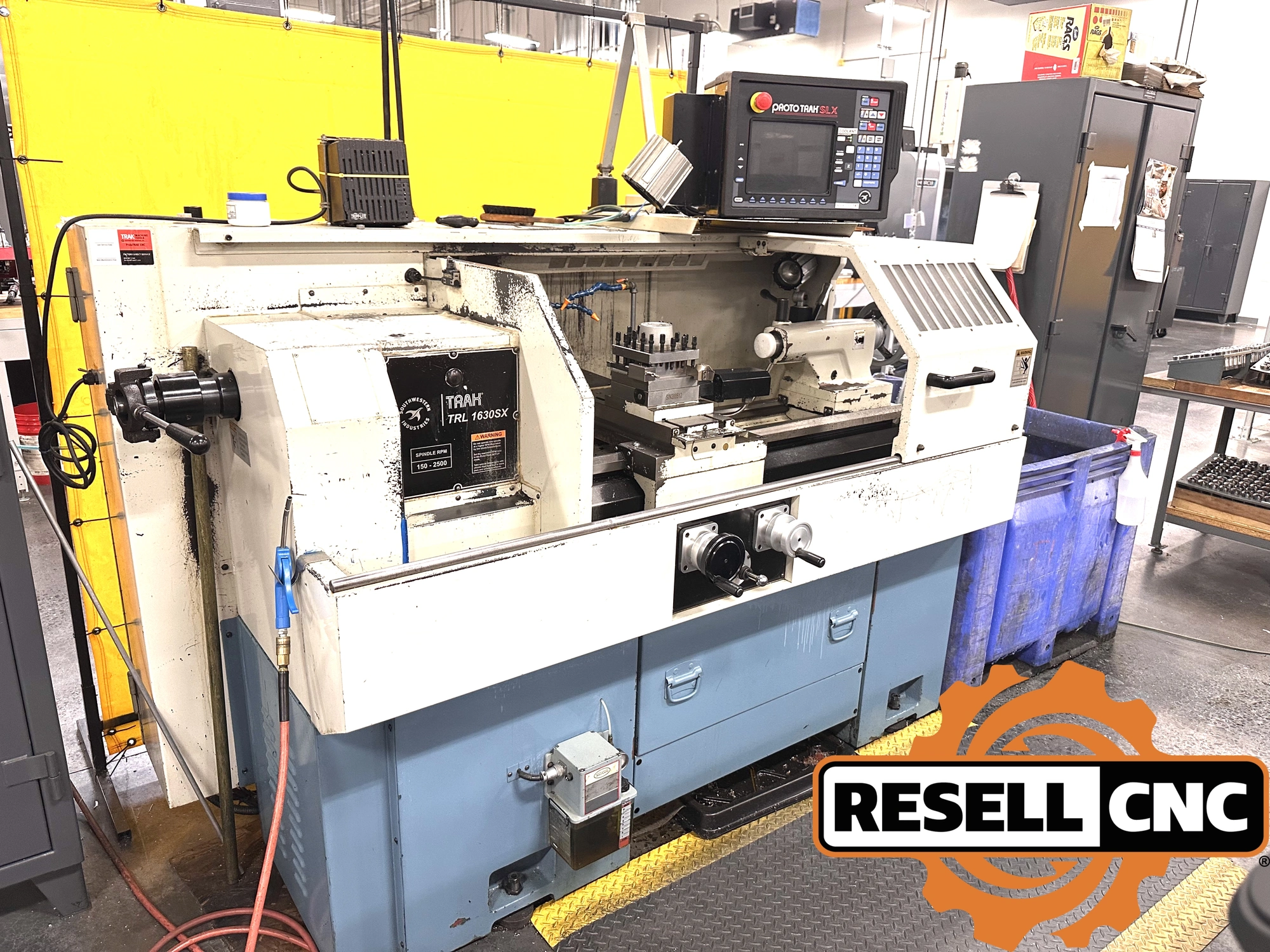

USED 2008 Southwestern Industries Trak 1630SX

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: 5C Collet Chuck

8" 3-Jaw Chuck

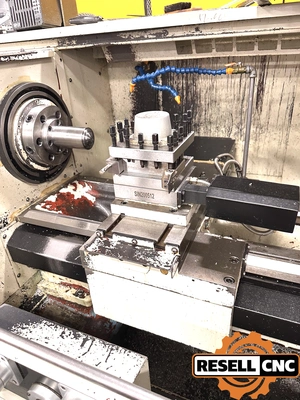

4-Position Progammable Tool Post

Height of Centers: 8"

Tool Section Max: 0.75"

Coolant Reservoir: 8 gallons

Coolant Pump Motor: 0.125 HP

Bed Width: 12.6"

Bed Height: 12.6"

Spindle Through Hole: 2.12"

Spindle Taper: MT#6

Spindle Diameter Front Bearing: 3.15"

Number of Bearings: 2

Number of Spindle Speed Ranges: 1

B Axis: false
C Axis: false
Chuck Size: 8.0
Chuck Type: Collet

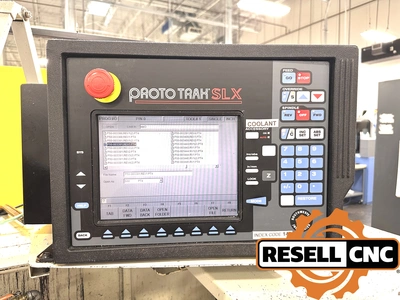

Control Make Model: Proto Trak SLX CNC Control
Distance Between Centers: 30.0
Electrical: 200
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Cutting Turning Diameter: 16.0
Max Swing Over Bed: 16.0
Max Swing Over Cross Slide: 8.6
Max Swing Over Saddle: 16.0
Max Turning Cutting Length: 30.0
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Spindle Bore: 2.12
Spindle Motor: 7.5
Spindle Nose: D1-6
Spindle Speed: 2500.0
Sub Spindle: false
Tailstock: false
Twin Turret: false
Y Axis: false
