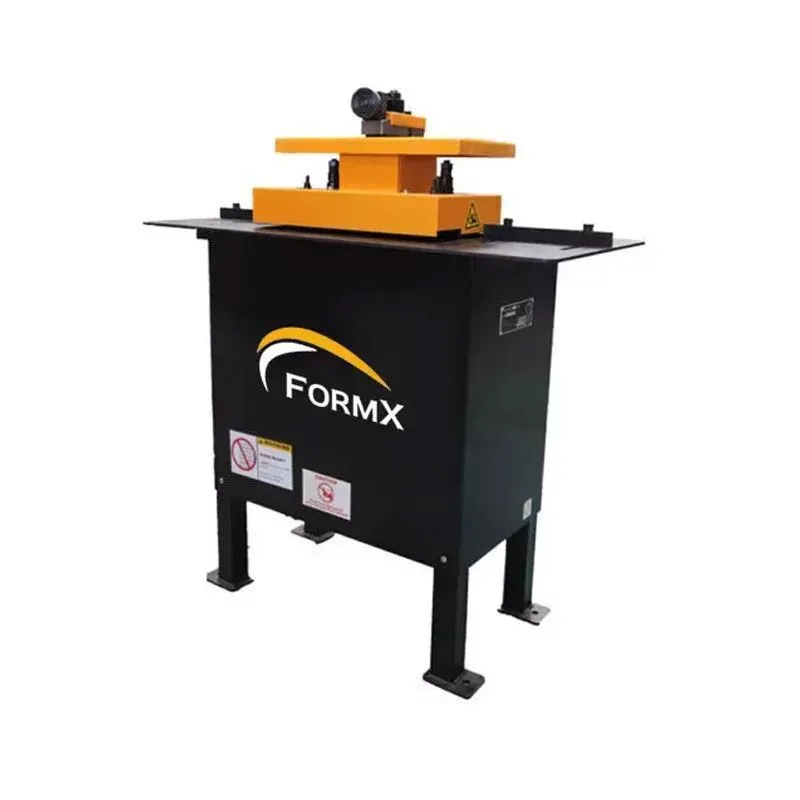

New FormX SEAMER 1.0 Roll Former offers reliable performance for your Pittsburgh forming needs. In pristine condition, it can be optionally equipped with an Auto-Guide Power Flanger for enhanced functionality.
| Capacity | 20 – 28 gauge (.5 – 1.0 mm) | 20 – 28 gauge (.5 – 1.0 mm) |
| Depth of Pocket | 5/16" (8 mm) - uses 1" (25.4 mm) of material | 5/16" (8 mm) - uses 1" (25.4 mm) of material |
| Power | 1 hp | 0.7 kW |
| Electical | 115V, 60 cycle, 1-phase, AC, 1800 RPM | 115V, 60 cycle, 1-phase, AC, 1800 RPM |
| Speed | 30 - 35 fpm (9 - 11 m/min) | 30 - 35 fpm (9 - 11 m/min) |
| Dimensions | 30"L x 13.5"W x 20"H (760 x 340 x 510 mm) | 30"L x 13.5"W x 20"H (760 x 340 x 510 mm) |
| Weight | 191 lbs. (87 kg) | 191 lbs. (87 kg) |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
An optional Auto-Guide Power Flanger attachment is available – automatically follows any edge, straight or irregular, while forming a 7/32" (5.5 mm) outside flange height.
