Discover the new FormX SEAMER 0.7 Rollformer, ideal for 24–28 gauge materials. With a 1 hp motor, it runs at 30–35 fpm and operates on 115V. Optional Auto-Guide Power Flanger available.
| Capacity | 24 – 28 gauge (0.5 – 0.7 mm) | 24 – 28 gauge (0.5 – 0.7 mm) |
| Depth of Pocket | 5/16” (8 mm) – uses 1” (25.4 mm) of material | 5/16” (8 mm) – uses 1” (25.4 mm) of material |
| Power | 1 hp | 0.7 kW |
| Electical | 115V, 60 cycle, 1-phase, AC | 115V, 60 cycle, 1-phase, AC |
| Speed | 30 – 35 fpm (9 – 11 m/min) | 30 – 35 fpm (9 – 11 m/min) |
| Dimensions | 30”L x 13.5W” x 20”H (760 x 340 x 510 mm) | 30”L x 13.5W” x 20”H (760 x 340 x 510 mm) |
| Weight | 191 lbs. (87 kg) | 191 lbs. (87 kg) |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

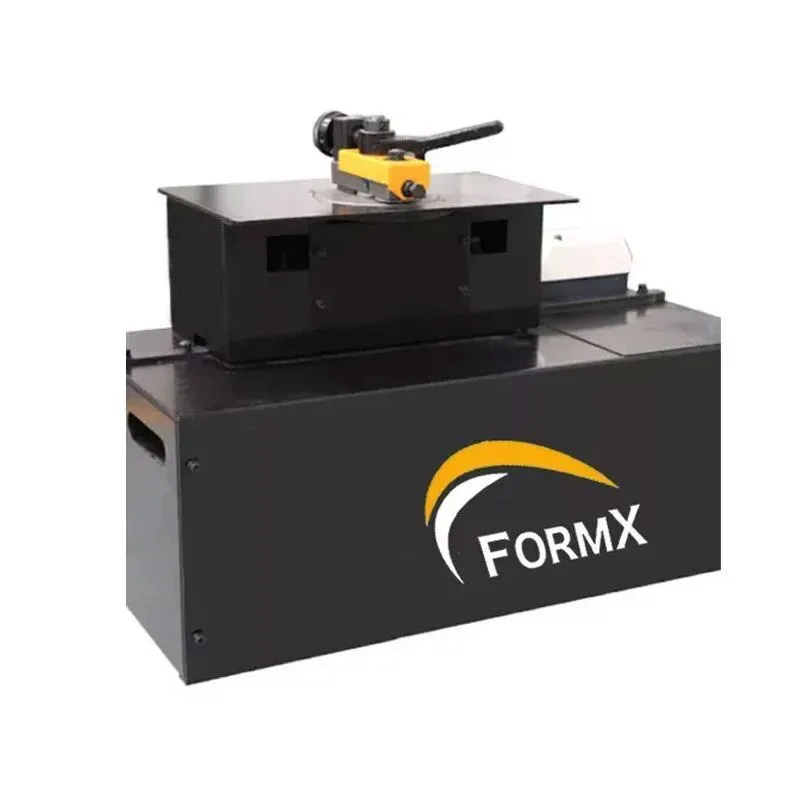

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEM S - CALL FOR PRICE:
Optional Auto-Guide Power Flanger attachment: automatically follows any edge, straight or irregular, while forming a 7/32” (5.5 mm) outside flange height.
